扩弓器种类及位置对双侧完全性唇腭裂扩弓生物力学影响的有限元分析

doi:10.13591/j.cnki.kqyx.2025.11.011

Abstract

Abstract:

Objective To investigate the different biomechanical effects of two types of palatal expanders and expansion sites on a bilateral complete cleft lip and palate (BCCLP) in mixed dentition with a finite element analysis (FEA). Methods The CBCT data of a patient with BCCLP were collected to construct a FEA model containing craniomaxillary suture structure. The fan-shaped and traditional Hyrax expanders were drawn and assembled into the FEA model in SolidWorks software according to the working conditions as follows: condition 1 and 2, the fan-shaped expander was placed at the anterior/posterior part of the palate respectively;condition 3 and 4, the Hyrax expander was placed at the anterior/posterior part of the palate respectively. A 5 N force in X axis direction was loaded at the apex of the expander coil spring. The stress distribution and initial displacement of craniomaxillary complex in four working conditions were compared. Results ①In working condition 1, 2 and 3, the displacement of anterior part was larger than the posterior part of the dental arch. Under condition 4, the displacement of anterior, middle and posterior parts of dental arch were basically the same. ②The maximum stress and displacement were observed at crowns in all working conditions. ③There was a certain skeletal enlargement effect, which showed a gradually decreasing deformation trend from alveolar region to the upward region. Conclusion The expansion effect of fan-shaped expander is more suitable for BCCLP patients with extremely narrow anterior arch and normal posterior arch. For the traditional Hyrax expander, the position has a great influence on expansion effect. It is showed that the dental support expander could produce skeletal dilation effect in BCCLP patients during mixed dentition.

Key words: finite element analysis, palatal expansion, bilateral complete cleft lip and palate, fan-shaped expander, Hyrax expander

CLC Number:

R783.5

YAO Pinyi, WANG Hongyang, WANG Mingyue, ZHANG Hongchuang. A finite element analysis of bilateral complete cleft lip and palate during expansion with variable types and locations of the expander[J]. Stomatology, 2025, 45(11): 858-864.

Figures/Tables 7

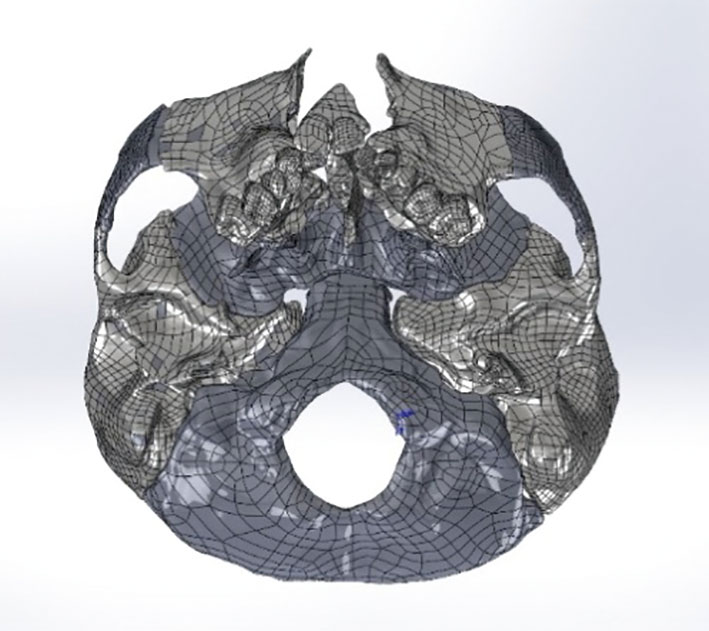

Fig.1

Fig.2

Tab.1

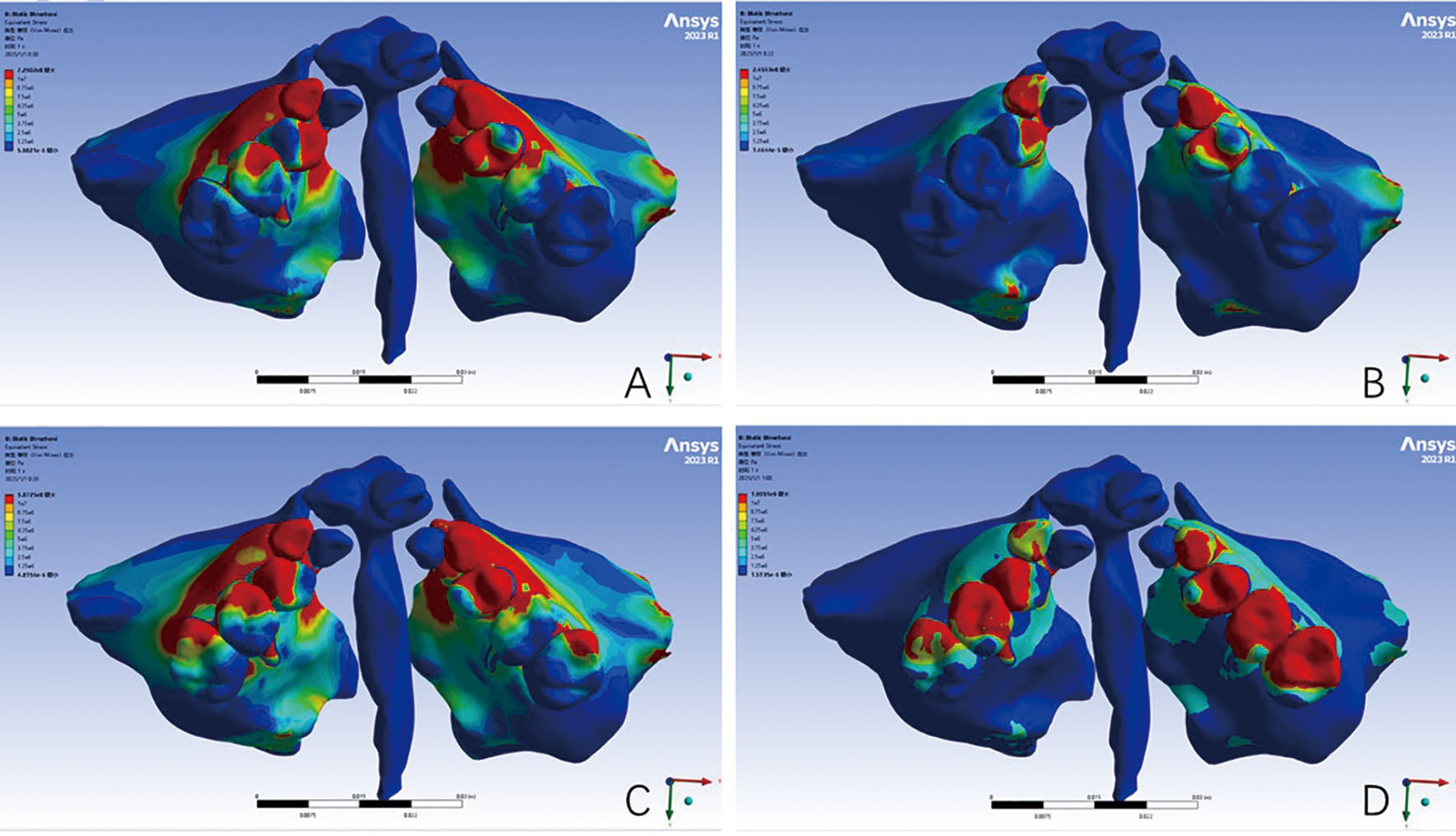

Fig.3

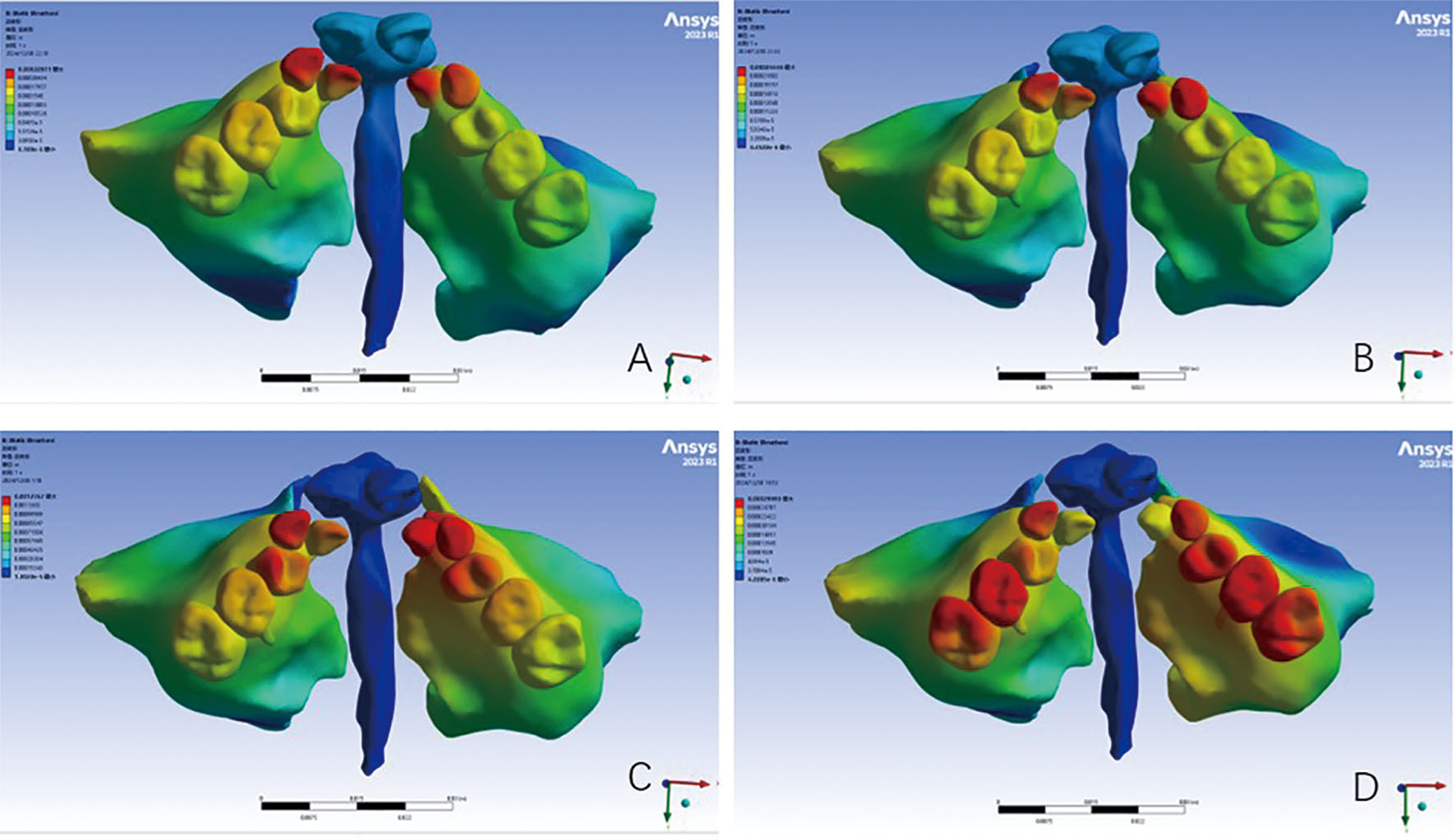

Fig.4

Tab.2

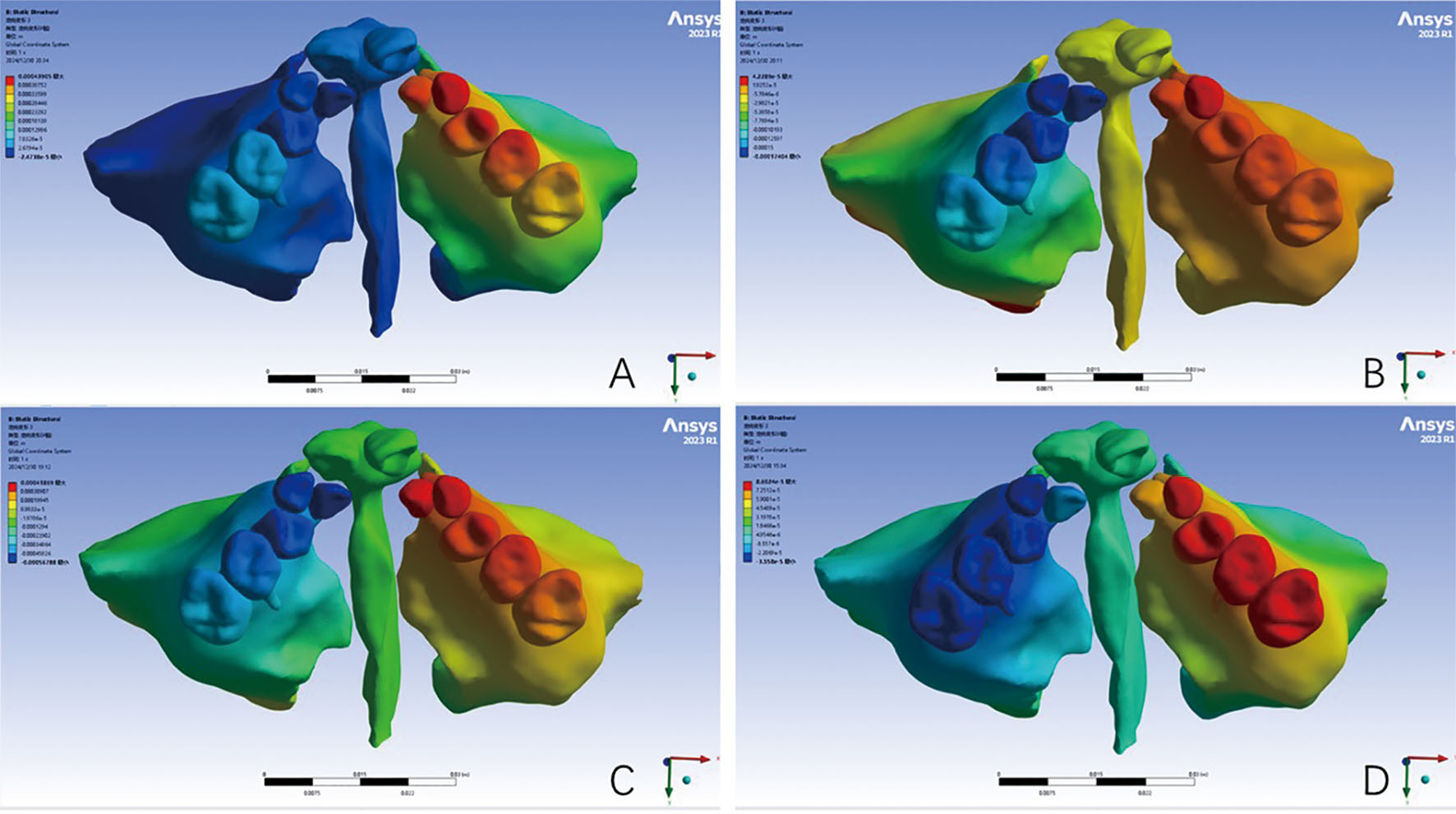

Fig.5

References 34

[1]	Mossey PA, Shaw WC, Munger RG, et al. Global oral health inequalities: Challenges in the prevention and management of orofacial clefts and potential solutions[J]. Adv Dent Res, 2011, 23(2): 247-258. doi: 10.1177/0022034511402083
[2]	Bangun K, Halim J, Tania V. Repair of protruding bilateral cleft lip and palate with staged premaxilla setback osteotomy, cheiloplasty, and palatoplasty in trisomy 17p patient: A review of syndromic clinical characteristic[J]. Cleft Palate Craniofac J, 2023, 60(5): 621-626. doi: 10.1177/10556656211069820
[3]	李巍然, 桑彦辉. 双侧完全性唇腭裂术后牙弓宽度的研究[J]. 口腔正畸学, 2005, 12(2): 49-52.
[4]	Ayub PV, Janson G, Gribel BF, et al. Analysis of the maxillary dental arch after rapid maxillary expansion in patients with unilateral complete cleft lip and palate[J]. Am J Orthod Dentofacial Orthop, 2016, 149(5): 705-715. doi: 10.1016/j.ajodo.2015.11.022
[5]	翦新春, 粟红兵, 尹乒, 等. 双侧唇裂/唇腭裂术后继发畸形的临床分类研究[J]. 口腔医学研究, 2003, 19(5): 387-389.
[6]	中华口腔医学会唇腭裂专业委员会. 唇腭裂序列治疗指南[J]. 中华口腔医学杂志, 2024, 59(3): 221-229.
[7]	Provatidis C, Georgiopoulos B, Kotinas A, et al. On the FEM modeling of craniofacial changes during rapid maxillary expansion[J]. Med Eng Phys, 2007, 29(5): 566-579. pmid: 17241809
[8]	Meng WY, Ma YQ, Shi B, et al. The comparison of biomechanical effects of the conventional and bone-borne palatal expanders on late adolescence with unilateral cleft palate: A 3-dimensional finite element analysis[J]. BMC Oral Health, 2022, 22(1): 600. doi: 10.1186/s12903-022-02640-1
[9]	Mathew A, Nagachandran KS, Vijayalakshmi D. Stress and displacement pattern evaluation using two different palatal expanders in unilateral cleft lip and palate: A three-dimensional finite element analysis[J]. Prog Orthod, 2016, 17(1): 38. pmid: 27800592
[10]	黄威, 曹丁, 周永川, 等. 唇腭裂术后生物力对上颌骨影响的有限元分析[J]. 实用口腔医学杂志, 2020, 36(5): 779-782.
[11]	李祥, 杨婉琪, 李慧, 等. 上颌腭部骨支持式前方牵引配合扩弓的三维有限元分析[J]. 口腔医学, 2020, 40(10): 916-921.
[12]	黄威, 曹丁, 张晓燕, 等. 不同部位瘢痕对腭裂上颌骨发育影响的有限元研究[J]. 实用口腔医学杂志, 2020, 36(1): 64-67.
[13]	Tian T, Huang HY, Wang W, et al. Three-dimensional finite element analysis of the effect of alveolar cleft bone graft on the maxillo-facial biomechanical stabilities of unilateral complete cleft lip and palate[J]. Biomed Eng Online, 2022, 21(1): 31. doi: 10.1186/s12938-022-01000-y pmid: 35596229
[14]	杨彩秀, 范存晖, 许涛, 等. 替牙期单侧完全性唇腭裂患者上颌骨复合体三维有限元模型的建立[J]. 生物医学工程与临床, 2022, 26(2): 143-149.
[15]	房晓旭, 范存晖. 口周力对唇腭裂患者牙颌发育影响的研究现状[J]. 口腔医学, 2019, 39(9): 840-843.
[16]	黄威, 曹丁, 周永川, 等. 瘢痕对唇腭裂上颌骨生长影响的有限元分析[J]. 现代口腔医学杂志, 2020, 34(3): 152-154.
[17]	Heidbuchel KL, Kuijpers-Jagtman AM. Maxillary and mandibular dental-arch dimensions and occlusion in bilateral cleft lip and palate patients form 3 to 17 years of age[J]. Cleft Palate Craniofac J, 1997, 34(1): 21-26. doi: 10.1597/1545-1569_1997_034_0021_mamdad_2.3.co_2
[18]	Heidbuchel KL, Kuijpers-Jagtman AM, Van’t Hof MA, et al. Effects of early treatment on maxillary arch development in BCLP. A study on dental casts between 0 and 4 years of age[J]. J Craniomaxillofac Surg, 1998, 26(3): 140-147. doi: 10.1016/s1010-5182(98)80003-6 pmid: 9702631
[19]	Brunetto DP, Sant’Anna EF, Machado AW, et al. Non-surgical treatment of transverse deficiency in adults using Microimplant-assisted Rapid Palatal Expansion (MARPE)[J]. Dental Press J Orthod, 2017, 22(1): 110-125. doi: S2176-94512017000100110 pmid: 28444019
[20]	李心慧, 雷雪, 许诺, 等. 上颌横向发育不足治疗方法的研究进展[J]. 现代口腔医学杂志, 2017, 31(3): 150-153.
[21]	张赟, 李小兵. 上颌扩弓疗效评价的临床意义及发展方向[J]. 口腔医学, 2022, 42(7): 659-663.
[22]	Holberg C, Holberg N, Schwenzer K, et al. Biomechanical analysis of maxillary expansion in CLP patients[J]. Angle Orthod, 2007, 77(2): 280-287. pmid: 17319763
[23]	李巍然. 唇腭裂序列治疗中的正畸治疗[J]. 中华口腔医学杂志, 2023, 58(9): 877-881.
[24]	Cardinal L, da RosaZimermann G, Mendes FM, et al. Dehiscence and buccal bone thickness after rapid maxillary expansion in young patients with unilateral cleft lip and palate[J]. Am J Orthod Dentofacial Orthop, 2022, 162(1): 16-23. doi: 10.1016/j.ajodo.2021.01.038
[25]	郑如松, 陈菲, 孙雪玉, 等. MSE骨性扩弓对成人上牙弓狭窄扩弓效果的CBCT分析[J]. 口腔医学, 2021, 41(1): 43-49.
[26]	张红闯, 陈裕华, 张阳, 等. 单侧完全性唇腭裂术后的腭部发育[J]. 组织工程与重建外科, 2020, 16(5): 365-368.
[27]	Massaro C, Janson G, Miranda F, et al. Dental arch changes comparison between expander with differential opening and fan-type expander: A randomized controlled trial[J]. Eur J Orthod, 2021, 43(3): 265-273. doi: 10.1093/ejo/cjaa050
[28]	Ahmed M, Fida M, Jeelani W. Management of an adolescent with complete bilateral cleft lip and palate using fan-shaped expander and secondary alveolar bone graft: A case report[J]. Int Orthod, 2020, 18(3): 593-602. doi: 10.1016/j.ortho.2020.04.002
[29]	Garib D, Lauris RC, Calil LR, et al. Dentoskeletal outcomes of a rapid maxillary expander with differential opening in patients with bilateral cleft lip and palate: A prospective clinical trial[J]. Am J Orthod Dentofacial Orthop, 2016, 150(4): 564-574. doi: 10.1016/j.ajodo.2016.05.006
[30]	Gopalakrishnan U, Sridhar P. Assessment of the dental and skeletal effects of fan-type rapid maxillary expansion screw and Hyrax screw on craniofacial structures[J]. Contemp Clin Dent, 2017, 8(1): 64-70. doi: 10.4103/0976-237X.205066
[31]	Davami K, Talma E, Harzer W, et al. Long term skeletal and dental changes between tooth-anchored versus Dresden bone-anchored rapid maxillary expansion using CBCT images in adolescents: Randomized clinical trial[J]. Int Orthod, 2020, 18(2): 317-329. doi: 10.1016/j.ortho.2020.02.004
[32]	Parveen S, Husain A, Gosla Reddy S, et al. Three-dimensional finite element analysis of initial displacement and stress on the craniofacial structures of unilateral cleft lip and palate model during protraction therapy with variable forces and directions[J]. Comput Methods Biomech Biomed Engin, 2020, 23(16): 1360-1376. doi: 10.1080/10255842.2020.1803844
[33]	Lee HF, Nguyen A, Hong C, et al. Biomechanical effects of maxillary expansion on a patient with cleft palate: A finite element analysis[J]. Am J Orthod Dentofacial Orthop, 2016, 150(2): 313-323. doi: 10.1016/j.ajodo.2015.12.029
[34]	雷勇华, 翦新春, 任毕乔. 模拟修复上颌骨裂隙后前牵引受力的三维有限元生物力学研究[J]. 中南大学学报(医学版), 2009, 34(4): 295-299.

材料	杨氏模量/MPa	泊松比
松质骨	8.00×10³	0.30
密质骨	1.36×10⁴	0.30
骨缝	10.00	0.49
牙	2.07×10⁴	0.30
牙周膜	0.49	0.45
不锈钢装置	2.14×10⁵	0.30

观测点		总位移				X轴方向位移绝对值				Y轴方向位移绝对值				Z轴方向位移绝对值
观测点		工况1	工况2	工况3	工况4	工况1	工况2	工况3	工况4	工况1	工况2	工况3	工况4	工况1	工况2	工况3	工况4
牙弓	DC	2.41	2.04	3.15	3.41	2.37	2.01	2.75	3.15	0.31	0.26	1.31	0.86	0.31	0.23	0.80	0.98
	FP	2.15	1.79	2.71	3.44	2.11	1.72	2.69	3.19	0.24	0.31	0.25	0.87	0.34	0.39	0.21	0.95
	DM	2.04	1.65	2.65	3.47	1.96	1.62	2.61	3.22	0.35	0.21	0.16	0.91	0.44	0.23	0.43	0.91
	PM	1.44	1.24	2.16	3.52	1.38	1.18	2.10	3.18	0.35	0.24	0.28	0.96	0.22	0.30	0.42	1.16
牙槽	DCB	2.01	1.98	3.05	3.11	1.92	1.89	2.68	2.99	0.35	0.27	1.11	0.59	0.48	0.52	0.94	0.62
	DCL	2.08	2.01	3.11	3.16	2.04	1.93	2.73	2.86	0.30	0.31	0.89	0.72	0.27	0.47	1.19	1.13
	FPB	2.08	1.70	2.64	3.18	1.90	1.67	2.34	2.79	0.54	0.26	0.69	0.94	0.65	0.18	1.01	1.20
	FPL	2.09	1.73	2.67	3.19	1.96	1.65	2.41	2.83	0.58	0.31	0.58	0.91	0.44	0.41	0.99	1.16
	DMB	1.93	1.58	2.23	3.17	1.85	1.49	2.12	2.84	0.27	0.33	0.54	0.86	0.48	0.41	0.43	1.12
	DML	1.98	1.60	2.25	3.18	1.89	1.58	2.18	2.71	0.38	0.22	0.28	1.11	0.45	0.12	0.48	1.24
	PMB	1.35	1.16	2.08	2.94	1.26	1.14	2.01	2.78	0.31	0.18	0.22	0.48	0.37	0.12	0.49	0.83
	PML	1.39	1.21	2.11	2.97	1.34	1.16	1.86	2.78	0.25	0.26	0.56	0.37	0.27	0.22	0.82	0.98
