白藜芦醇对脱矿牙本质仿生再矿化及粘接耐久性的分析

doi:10.13591/j.cnki.kqyx.2023.09.003

摘要/Abstract

摘要：

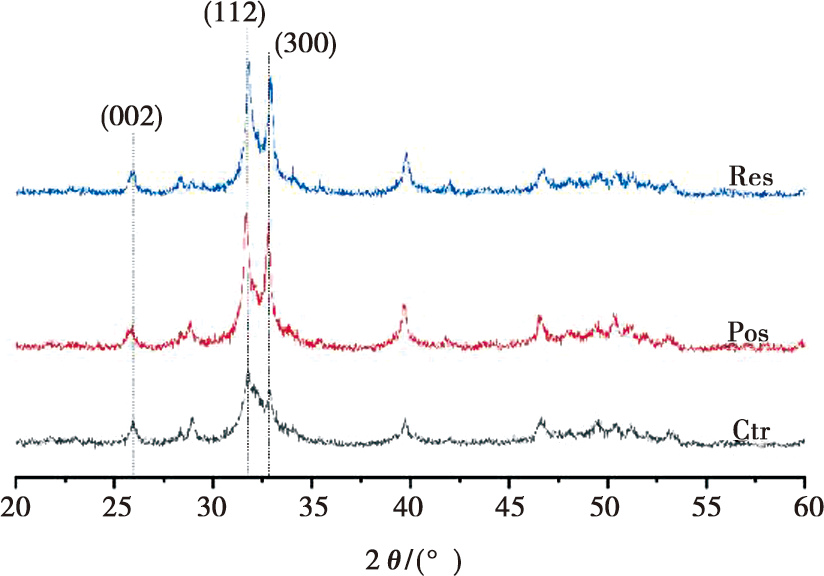

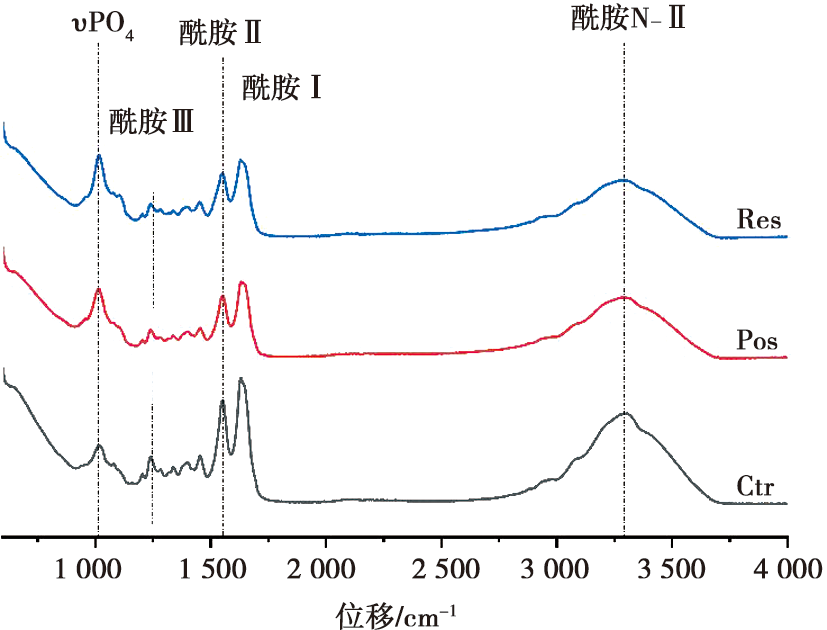

目的评价白藜芦醇对脱矿牙本质仿生再矿化及树脂-牙本质粘接耐久性的影响。方法低速切割机下切取的中层牙本质经35%磷酸酸蚀脱矿后随机分为3组并分别给予蒸馏水浸泡(Ctr组)、直接再矿化处理7 d(Pos组)和白藜芦醇预处理30 min后再矿化处理7 d(Res组)。采用扫描电镜观察牙本质表面矿物质生成情况,X射线衍射和衰减全反射傅里叶变换红外光谱分析牙本质表面晶体的特征,微拉伸强度实验观察树脂-牙本质粘接耐久性。结果扫描电镜发现仿生再矿化处理的各组牙本质表面均可以形成矿物晶体,白藜芦醇预处理后的牙本质表面更为明显,新形成的晶体经X射线衍射和衰减全反射傅里叶变换红外光谱分析为羟基磷灰石。与没有预处理剂的阳性对照组相比,白藜芦醇预处理显著增加了初始微拉伸强度值。微拉伸强度值在老化过程中减小,但白藜芦醇预处理的样本该值下降程度最低。结论白藜芦醇预处理可以促进脱矿牙本质的仿生再矿化并改善树脂-牙本质的粘接耐久性。

关键词: 白藜芦醇, 牙本质, 仿生再矿化, 粘接耐久性

Abstract:

Objective To evaluate the contributions of resveratrol to dentin biomimetic remineralization and resin-dentin bond durability. Methods The middle dentin slices cut by a low-speed diamond saw were etched with 35% phosphoric acid and divided into three groups, which were respectively immersed in distilled water(Ctr group), directly remineralized for 7 d (Pos group), and pretreated with resveratrol for 30 min and then remineralized for 7 d (Res group). The formation of minerals on the dentin surface was observed by scanning electron microscope(SEM), and the crystal characteristics were analyzed by X-ray diffraction(XRD)and attenuated total reflection Fourier transform infrared spectroscopy(ATR-FTIR). Micro tensile strength was used to observe the resin-dentin bond durability. Results SEM showed that the dentin after remineralization could form crystals, and more crystals were formed on the resveratrol-pretreated dentin surface. XRD and ATR-FTIR analysis showed that the newly formed crystal was hydroxyapatite(HA). Pretreatment with resveratrol significantly increased the initial micro-tensile strength compared with the positive control group without primer conditioning. Micro-tensile strength decreased during aging, however, the decrease in resveratrol-pretreated samples was the least significant. Conclusion Resveratrol can promote the biomimetic remineralization of demineralized dentin and improve resin-dentin bond durability.

Key words: resveratrol, dentin, biomimetic remineralization, resin-dentin bond durability

中图分类号:

R783.1

孙丽君, 何峰. 白藜芦醇对脱矿牙本质仿生再矿化及粘接耐久性的分析[J]. 口腔医学, 2023, 43(9): 781-785.

SUN Lijun, HE Feng. Effect of resveratrol on biomimetic remineralization of demineralized dentin and resin-dentin bond durability[J]. Stomatology, 2023, 43(9): 781-785.

图/表 4

参考文献 27

[1]	Frassetto A, Breschi L, Turco G, et al. Mechanisms of degrada-tion of the hybrid layer in adhesive dentistry and therapeutic agents to improve bond durability: A literature review[J]. Dent Mater, 2016, 32(2):e41-e53.
[2]	Wang Y, Spencer P. Quantifying adhesive penetration in adhesive/dentin interface using confocal Raman microspectroscopy[J]. J Biomed Mater Res, 2002, 59(1):46-55. doi: 10.1002/(ISSN)1097-4636
[3]	Lu PF, Ken TK, Weaver VM, et al. Extracellular matrix degradation and remodeling in development and disease[J]. Cold Spring Harb Perspect Biol, 2011, 3(12):a005058.
[4]	Chaussain-Miller C, Fioretti F, Goldberg M, et al. The role of matrix metalloproteinases(MMPs)in human caries[J]. J Dent Res, 2006, 85(1):22-32. doi: 10.1177/154405910608500104 pmid: 16373676
[5]	Guo XW, Yu YY, Gao S, et al. Biodegradation of dental resin-based composite-a potential factor affecting the bonding effect:A narrative review[J]. Biomedicines, 2022, 10(9):2313. doi: 10.3390/biomedicines10092313
[6]	Huang B, Cvitkovitch DG, Santerre JP, et al. Biodegradation of resin-dentin interfaces is dependent on the restorative material, mode of adhesion, esterase or MMP inhibition[J]. Dent Mater, 2018, 34(9):1253-1262. doi: S0109-5641(17)30984-3 pmid: 29789163
[7]	Ou QM, Hu Y, Yao SQ, et al. Effect of matrix metalloproteinase 8 inhibitor on resin-dentin bonds[J]. Dent Mater, 2018, 34(5):756-763. doi: S0109-5641(17)31081-3 pmid: 29449021
[8]	Serkies KB, Garcha R, Tam LE, et al. Matrix metalloproteinase inhibitor modulates esterase-catalyzed degradation of resin-dentin interfaces[J]. Dent Mater, 2016, 32(12):1513-1523. doi: S0109-5641(16)30389-X pmid: 27692555
[9]	Scaffa PMC, Vidal CMP, Barros N, et al. Chlorhexidine inhibits the activity of dental cysteine cathepsins[J]. J Dent Res, 2012, 91(4):420-425. doi: 10.1177/0022034511435329 pmid: 22266526
[10]	Tay FR, Pashley DH. Biomimetic remineralization of resin-bonded acid-etched dentin[J]. J Dent Res, 2009, 88(8):719-724. doi: 10.1177/0022034509341826 pmid: 19734458
[11]	Lin HP, Lin J, Li J, et al. In vitro remineralization of hybrid layers using biomimetic analogs[J]. J Zhejiang Univ Sci B, 2016, 17(11):864-873. doi: 10.1631/jzus.B1600151
[12]	刘燕. 脱矿牙本质-树脂混合层的引导组织再矿化机制及应用研究[D]. 武汉: 华中科技大学, 2011.
[13]	Babaie E, Bacino M, White J, et al. Polymer-Induced Liquid Precursor(PILP)remineralization of artificial and natural dentin carious lesions evaluated by nanoindentation and microcomputed tomography[J]. J Dent, 2021, 109:103659. doi: 10.1016/j.jdent.2021.103659
[14]	Qu YN, Gu TY, Du QL, et al. Polydopamine promotes dentin remineralization via interfacial control[J]. ACS Biomater Sci Eng, 2020, 6(6):3327-3334. doi: 10.1021/acsbiomaterials.0c00035
[15]	Chen CQ, Mao CY, Sun J, et al. Glutaraldehyde-induced remineralization improves the mechanical properties and biostability of dentin collagen[J]. Mater Sci Eng C, 2016, 67:657-665. doi: 10.1016/j.msec.2016.05.076
[16]	Kroll J, Rawel HM, Rohn S. Reactions of plant phenolics with food proteins and enzymes under special consideration of covalent bonds[J]. Food Sci Technol Res, 2003, 9(3):205-218. doi: 10.3136/fstr.9.205
[17]	Aguiar TR, Vidal CMP, Phansalkar RS, et al. Dentin biomodification potential depends on polyphenol source[J]. J Dent Res, 2014, 93(4):417-422. doi: 10.1177/0022034514523783 pmid: 24574140
[18]	Peng WA, Yi LY, Wang ZM, et al. Effects of resveratrol/ethanol pretreatment on dentin bonding durability[J]. Mater Sci Eng C, 2020, 114:111000. doi: 10.1016/j.msec.2020.111000
[19]	宋群. 胶原/聚电解质复合体的构建及其仿生矿化机制研究[D]. 西安: 中国人民解放军空军军医大学, 2019.
[20]	Jiang SQ, Pan HH, Chen Y, et al. Amorphous calcium phosphate phase-mediated crystal nucleation kinetics and pathway[J]. Faraday Discuss, 2015, 179(0):451-461. doi: 10.1039/C4FD00212A
[21]	Mahamid J, Aichmayer B, Shimoni E, et al. Mapping amorphous calcium phosphate transformation into crystalline mineral from the cell to the bone in zebrafish fin rays[J]. Proc Natl Acad Sci USA, 2010, 107(14):6316-6321. doi: 10.1073/pnas.0914218107 pmid: 20308589
[22]	Sun J, Chen CQ, Pan HH, et al. Biomimetic promotion of dentin remineralization using l-glutamic acid:Inspiration from biomineralization proteins[J]. J Mater Chem B, 2014, 2(28):4544-4553. doi: 10.1039/C4TB00451E
[23]	Kim YK, Mai S, Mazzoni A, et al. Biomimetic remineralization as a progressive dehydration mechanism of collagen matrices-Implications in the aging of resin-dentin bonds[J]. Acta Biomater, 2010, 6(9):3729-3739. doi: 10.1016/j.actbio.2010.03.021
[24]	Elliott SR, Robinson RA. The water content of bone. Ⅰ. The mass of water, inorganic crystals, organic matrix, and CO₂ space components in a unit volume of the dog bone[J]. J Bone Joint Surg Am, 1957, 39-A(1):167-188.
[25]	Magne D, Weiss P, Bouler JM, et al. Study of the maturation of the organic(type I collagen) and mineral(nonstoichiometric apatite) constituents of a calcified tissue(dentin) as a function of location:A Fourier transform infrared microspectroscopic investigation[J]. J Bone Miner Res, 2001, 16(4):750-757. doi: 10.1359/jbmr.2001.16.4.750 pmid: 11316003
[26]	Toroian D, Lim JE, Price PA. The size exclusion characteristics of type I collagen[J]. J Biol Chem, 2007, 282(31):22437-22447. doi: 10.1074/jbc.M700591200 pmid: 17562713
[27]	Epasinghe DJ, Yiu C, Burrow MF. Synergistic effect of proanthocyanidin and CPP-ACFP on remineralization of artificial root caries[J]. Aust Dent J, 2015, 60(4):463-470. doi: 10.1111/adj.12249 pmid: 25363724

分组	24 h水储	4个月老化
Ctr	32.20±2.60^a	26.81±2.36^d
Pos	35.14±2.33^b	30.61±2.27^e
Res	46.41±2.21^c	44.57±2.63^f
