下颌水平低位阻生齿内摩擦角分冠法的三维有限元分析

doi:10.13591/j.cnki.kqyx.2026.07.006

摘要/Abstract

摘要：

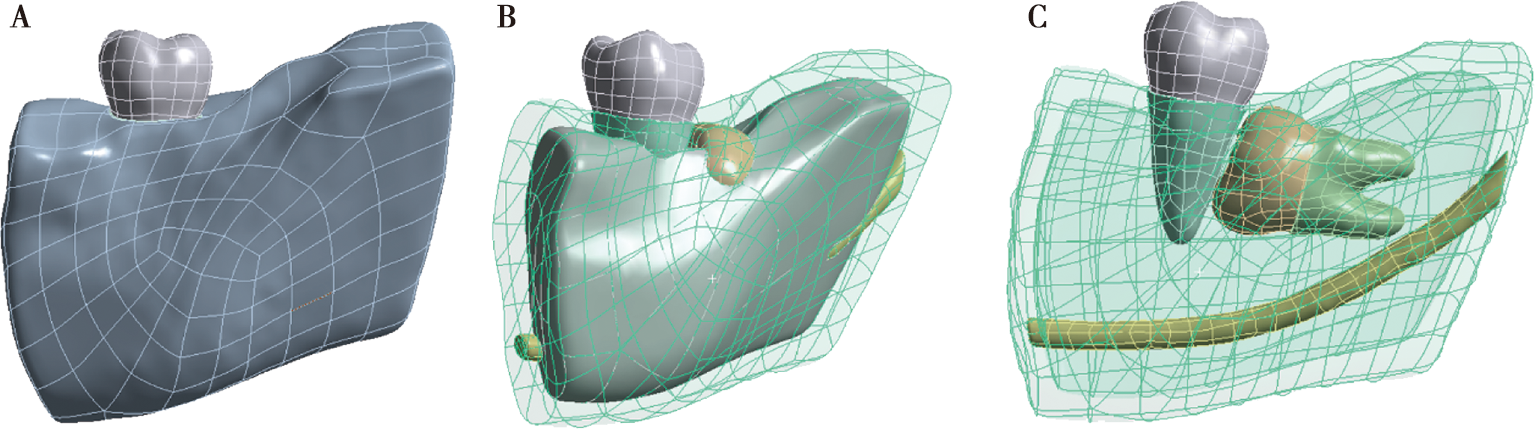

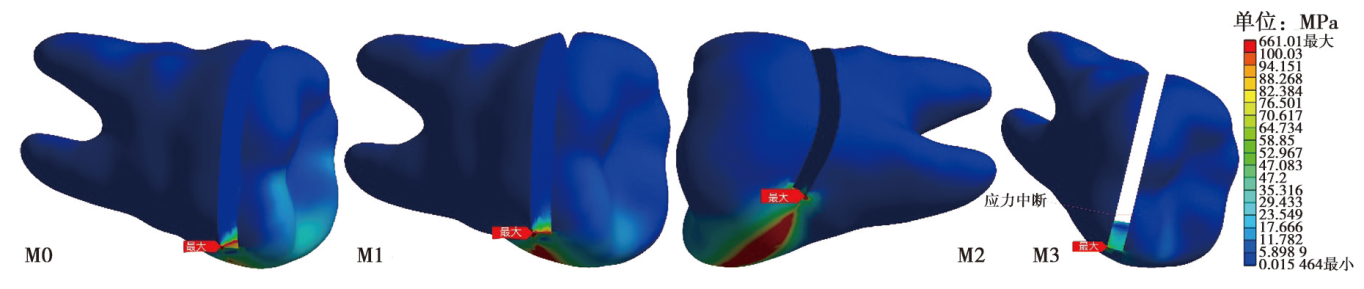

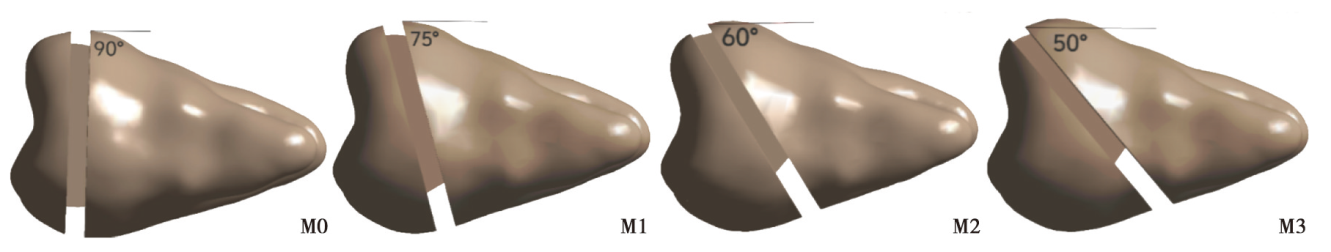

目的通过三维有限元分析研究下颌水平低位阻生第三磨牙分冠术中切割内摩擦角对周围组织的生物力学影响规律,建立精准分冠的量化操作标准。方法基于CBCT数据构建包含阻生牙(M3M)、邻牙(M2M)、牙周膜、皮质骨/松质骨及下牙槽神经管的三维有限元模型,分别设置四组内摩擦角(50°/60°/75°/90°)的不同参数,模拟35 N垂直载荷下的分冠过程,系统评估牙体断裂效率及邻牙、颌骨、神经管的应力/位移响应。结果基于牙釉质最大屈服强度即应力阈值,通过应力集中系数(stress concentration factor,SCF)对牙体断裂效率进行量化评估,发现60°内摩擦角组较传统90°组应力集中效应提升139.57%,断裂效率提高;50°组因应力中断导致不完全断裂。在邻牙保护方面,较传统90°组,75°与60°组使M2M牙周膜应力降低16.7%。在骨折风险评估中,50°组舌侧骨板应力接近下颌骨屈服阈值。在神经管保护中,60°组神经管应力相较于75°组及50°组为最低。结论水平低位阻生第三磨牙拔除术中,切割牙冠形成的内摩擦角(60°、75°)在便于牙冠断裂及脱位的同时,一定程度上保护了第三磨牙的周围组织。但过小的内摩擦角(50°)会导致分冠后的牙体组织分布不均匀,从而导致应力中断,降低断裂效率。通过不同内摩擦角大小下分冠对周围组织所受应力及位移变化的测定,在本实验模型理想状态下,60°及75°为最佳切割牙冠时的内摩擦角,在分冠时需要控制在该角度范围内。在手术过程中应格外加强对舌侧骨板的保护措施,以有效避免对血管及神经造成损伤。

关键词: 下颌阻生第三磨牙, 微创拔牙, 三维有限元分析, 生物力学分析, 内摩擦角, 应力分布

Abstract:

Objective To investigate the biomechanical effects of internal friction angles during crown sectioning on surrounding tissues in horizontally low-positioned impacted third molars through three-dimensional finite element analysis, and establish quantitative operational criteria for precise crown division. Methods Utilizing CBCT data, a three-dimensional finite element model incorporating the impacted tooth (M3M), adjacent tooth (M2M), periodontal ligament, cortical/trabecular bone, and inferior alveolar nerve canal was constructed. Four experimental groups with distinct internal friction angles (50°/60°/75°/90°) were established to simulate crown sectioning under 35 N vertical loading. The tooth fracture efficiency and stress/displacement responses in adjacent teeth, jawbone, and neural structures were systematically evaluated. Results Using enamel’s maximum yield strength as the stress threshold, fracture efficiency was quantified through stress concentration factor (SCF) analysis. The 60° group demonstrated 139.57% greater stress concentration effect compared to conventional 90° group, indicating enhanced fracture efficiency. The 50° group exhibited incomplete fractures due to stress interruption. For adjacent tooth protection, the 75° and 60° groups reduced M2M periodontal ligament stress by 16.7% versus the 90° group. Fracture risk assessment revealed lingual bone plate stress in the 50° group approached mandibular yield thresholds. The 60° group showed minimal neural canal stress among tested angles. Conclusion Optimal internal friction angles (60°, 75°) during crown sectioning of horizontally impacted third molars effectively balance fracture efficiency with tissue preservation. Excessive reduction in friction angle (50°) causes uneven stress distribution and compromised fracture outcomes. Surgical protocols should emphasize lingual bone plate protection to prevent neurovascular damage.

Key words: mandibular impacted third molar, minimally invasive extraction, three-dimensional finite element analysis, biomechanical analysis, internal friction angle, stress distribution

中图分类号:

R782.11

张博锐, 马宇锋. 下颌水平低位阻生齿内摩擦角分冠法的三维有限元分析[J]. 口腔医学, 2026, 46(7): 521-530.

ZHANG Borui, MA Yufeng. Three-dimensional finite element analysis of the crown method for the internal friction angle of horizontally impacted mandi-bular teeth[J]. Stomatology, 2026, 46(7): 521-530.

图/表 19

表1

图1

图2

图3

图4

图5

图6

表2

图7

图8

图9

图10

图11

图12

图13

图14

图15

图16

图17

参考文献 30

[1]	侯笑茹, 虎小毅, 李彦秋, 等. 动态实时导航技术在拔除周围伴有囊性病变的复杂下颌第三磨牙中的应用[J]. 口腔颌面外科杂志, 2024, 34(5): 379-385. doi: 10.12439/kqhm.1005-4979.2024.05.008
[2]	王军, 刘素芳, 王会敏. 微创拔牙术治疗下颌复杂阻生牙的临床疗效[J]. 深圳中西医结合杂志, 2023, 33(8): 115-118.
[3]	Fan XH, Yue L, Qu PF, et al. Strategy to remove teeth adjacent to mesially impacted wisdom teeth based on a geometric analysis[J]. J Hard Tissue Biol, 2021, 30(1): 85-92. doi: 10.2485/jhtb.30.85
[4]	Kämmerer PW, Heimes D, Hartmann A, et al. Clinical insights into traumatic injury of the inferior alveolar and lingual nerves: A comprehensive approach from diagnosis to therapeutic interventions[J]. Clin Oral Investig, 2024, 28(4): 216. doi: 10.1007/s00784-024-05615-4
[5]	Xu W, Shen J, Li KC, et al. A mechanical and three-dimensional finite element study of the optimum tooth sectioning depth during the extraction of low-level horizontally impacted mandibular third molar[J]. Odontology, 2024, 112(1): 242-249. doi: 10.1007/s10266-023-00822-z
[6]	祁海龙, 马蓉, 付建军. 列线图分析下颌阻生智牙拔除术后下牙槽神经血管束损伤的风险模型[J]. 中国医师杂志, 2024(10): 1504-1508.
[7]	华成舸. 微创拔牙的刚体力学分析[J]. 华西口腔医学杂志, 2017, 35(2): 119-123.
[8]	Baccher S, Gowdar IM, Guruprasad Y, et al. CBCT: A comprehensive overview of its applications and clinical significance in dentistry[J]. J Pharm Bioallied Sci, 2024, 16(Suppl 3): S1923-S1925.
[9]	Limjeerajarus N, Dhammayannarangsi P, Phanijjiva A, et al. Comparison of ultimate force revealed by compression tests on extracted first premolars and FEA with a true scale 3D multi-component tooth model based on a CBCT dataset[J]. Clin Oral Investig, 2020, 24(1): 211-220. doi: 10.1007/s00784-019-02919-8
[10]	Moga RA, Buru SM, Chiorean CG. Overall stress in periodontal ligament under orthodontic movement during a periodontal breakdown[J]. Am J Orthod Dentofac Orthop, 2022, 161(2): e127-e135. doi: 10.1016/j.ajodo.2021.06.014
[11]	Chang YH, Tambe AA, Maeda Y, et al. Finite element analysis of dental implants with validation: To what extent can we expect the model to predict biological phenomena? A literature review and proposal for classification of a validation process[J]. Int J Implant Dent, 2018, 4(1): 7. doi: 10.1186/s40729-018-0119-5 pmid: 29516219
[12]	张乃暄. 隐形矫治不同工况下远移上颌第二磨牙时全牙列变化的有限元分析[D]. 济南: 山东大学, 2022.
[13]	韩正功. 下颌阻生智齿智能识别及其拔除过程生物力学研究[D]. 贵阳: 贵州大学, 2024.
[14]	高文波, 马宗民, 李淑娴, 等. 有限元分析不同骨质下种植体长度及直径对初期稳定性的影响[J]. 中国组织工程研究, 2022, 26(6): 875-880.
[15]	Ataman-Duruel ET, Beycioğlu Z, Yılmaz D, et al. Evaluation of cortical thicknesses and bone density values of mandibular canal borders and coronal site of alveolar crest[J]. J Oral Maxillofac Res, 2023, 14(3): e4.
[16]	Ayali A, Erkmen E. Three-dimensional finite element analysis of different plating techniques for unfavorable mandibular angle fractures[J]. J Craniofacial Surg, 2018, 29(3): 603-607. doi: 10.1097/SCS.0000000000004327
[17]	Pisani MX, Presotto AGC, Mesquita MF, et al. Biomechanical behavior of 2-implant-and single-implant-retained mandibular overdentures with conventional or mini implants[J]. J Prosthet Dent, 2018, 120(3): 421-430. doi: 10.1016/j.prosdent.2017.12.012
[18]	庞亚倩. 不同部位骨吸收的下颌骨囊性病变有限元建模及相关生物力学分析[D]. 蚌埠: 蚌埠医学院, 2021.
[19]	Shams A, Sakrana AA, Abo El-Farag SA, et al. Assessment of biomechanical behavior of endodontically treated premolar teeth restored with novel endocrown system[J]. Eur J Prosthodont Restor Dent, 2022, 30(1): 20-35.
[20]	Ince Yusufoglu S, Saricam E, Ozdogan MS. Finite element analysis of stress distribution in root canals when using a variety of post systems instrumented with different rotary systems[J]. Ann Biomed Eng, 2023, 51(7): 1436-1448. doi: 10.1007/s10439-023-03145-w
[21]	Yang BX, Irastorza-Landa A, Heuberger P, et al. Analytical model for dental implant insertion torque[J]. J Mech Behav Biomed Mater, 2022, 131: 105223. doi: 10.1016/j.jmbbm.2022.105223
[22]	Wu WL, Song LY, Liu JM, et al. Finite element analysis of the angle range in trans-inferior alveolar nerve implantation at the mandibular second molar[J]. BMC Oral Health, 2023, 23(1): 928. doi: 10.1186/s12903-023-03641-4 pmid: 38007495
[23]	Zaytsev D. Mechanical properties of human enamel under compression: On the feature of calculations[J]. Mater Sci Eng C, 2016, 62: 518-523. doi: 10.1016/j.msec.2016.02.016
[24]	陈新民, 王劲茗, 赵云凤, 等. 人体下颌骨强度研究[J]. 口腔颌面修复学杂志, 2002, 3(2): 113-115.
[25]	Leyton BS, Rached RN, Ignácio SA, et al. Fracture strength of extended class I composite restorations with different restorative techniques[J]. Odontology, 2022, 110(2): 269-277. doi: 10.1007/s10266-021-00656-7
[26]	Suedbeck JR, Armitano-Lago CN, Ludwig EA. The additive effects of cell phone use and dental hygiene practice on finger muscle strength: A pilot study[J]. J Dent Hyg, 2020, 94(2): 45-53. pmid: 32354851
[27]	Martins L, de Lima L, da Silva L, et al. Crown material and occlusal thickness affect the load stress dissipation on 3D molar crowns: Finite element analysis[J]. Int J Prosthodont, 2023, 36(3): 301-307. doi: 10.11607/ijp.6974
[28]	于海洋. 口腔生物力学[M]. 北京: 人民卫生出版社, 2012.
[29]	He JP, Pan Z, Zhou GW, et al. Integrated analysis of clinical indicators and mechanical properties in cancellous bone[J]. Med Eng Phys, 2024, 133: 104245. doi: 10.1016/j.medengphy.2024.104245
[30]	Yan ZY, Xu JY, Zhang JY, et al. Optimal tooth sectioning using a surgical handpiece and elevator: A finite element study of horizontally deeply impacted mandibular third molars[J]. Clin Oral Investig, 2024, 28(8): 439. doi: 10.1007/s00784-024-05834-9

材料	弹性模量E/MPa	泊松比v
皮质骨	14 800	0.30
松质骨	1 850	0.30
牙釉质	80 000	0.33
牙本质	20 000	0.31
牙髓	2	0.45
牙周膜	68	0.45
神经管	70	0.45

周围结构	M0	M1	M2	M3
第二磨牙	0.17	0.14	0.16	0.13
第二磨牙牙周膜	0.06	0.05	0.06	0.10
下牙槽神经管	0.13	0.17	0.16	0.20
