银纳米粒子涂层根管镍钛器械的抗菌性能及生物相容性研究

doi:10.13591/j.cnki.kqyx.2024.06.007

口腔医学 ›› 2024, Vol. 44 ›› Issue (6): 438-442.doi: 10.13591/j.cnki.kqyx.2024.06.007

银纳米粒子涂层根管镍钛器械的抗菌性能及生物相容性研究

金泓,王汇文,吴雨婷,戴明睿,冷迪雅,朱婷婷,吴大明()

南京医科大学附属口腔医院牙体牙髓病科,口腔疾病研究与防治国家级重点实验室培育建设点(南京医科大学),江苏省口腔转化医学工程研究中心,江苏南京(210029)

收稿日期:2024-02-06 出版日期:2024-06-28 发布日期:2024-06-27
通讯作者: 吴大明 E-mail:wudamingdds@163.com
基金资助:
江苏省科教能力提升工程——江苏省研究型医院(YJXYYJSDW4);江苏省医学创新中心(CXZX202227)

Study on the antibacterial performance and biocompatibility of silver nanoparticals-coated root canal nickel titanium instruments

JIN Hong,WANG Huiwen,WU Yuting,DAI Mingrui,LENG Diya,ZHU Tingting,WU Daming()

Department of Endodontics, The Affiliated Stomatological Hospital of Nanjing Medical University, State Key Laboratory Cultivation Base of Research, Prevention and Treatment for Oral Diseases (Nanjing Medical University), Jiangsu Province Engineering Research Center of Stomatological Translational Medicine, Nanjing 210029, China

Received:2024-02-06 Online:2024-06-28 Published:2024-06-27

摘要/Abstract

摘要：

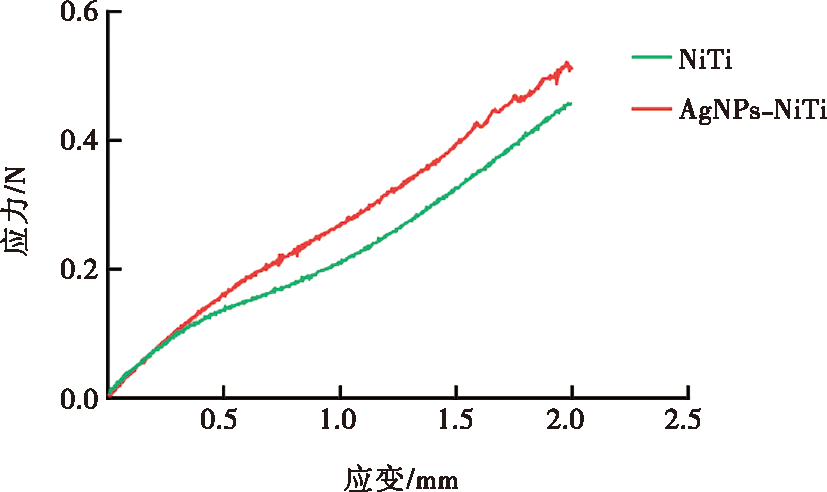

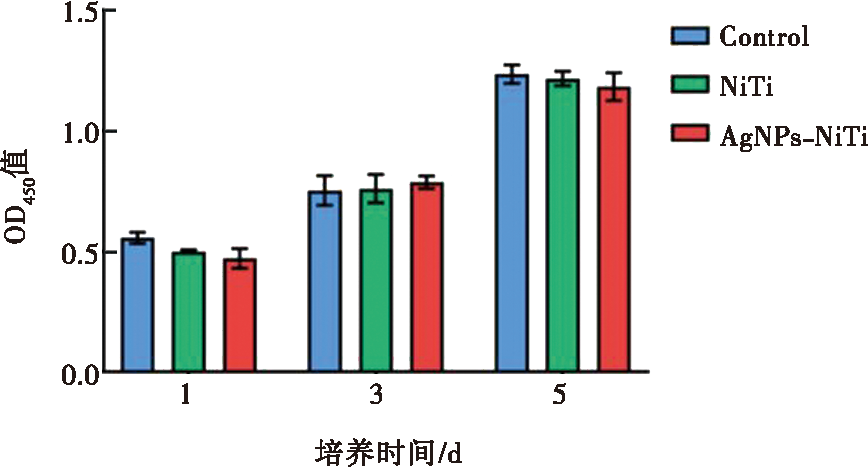

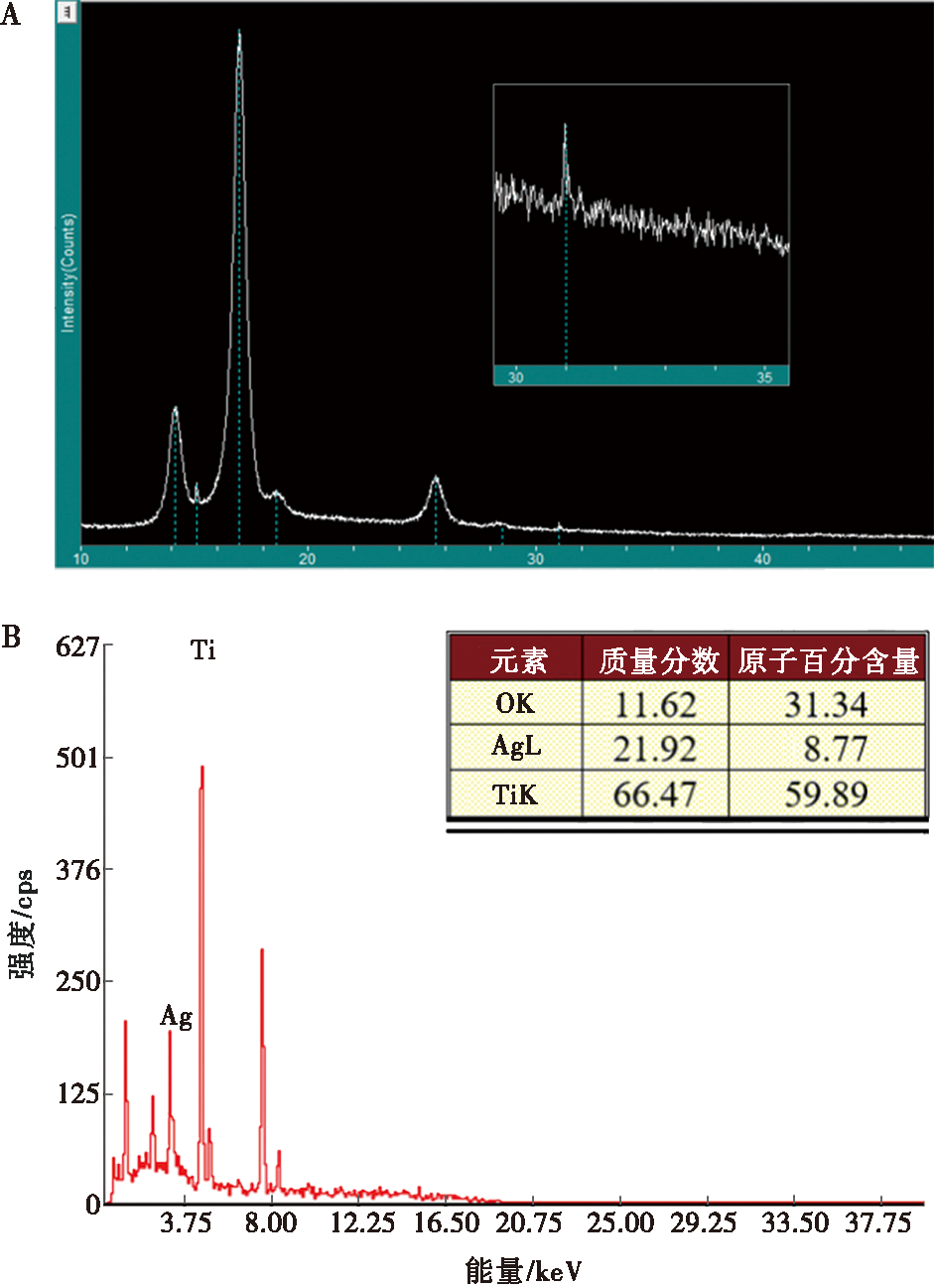

目的探讨银纳米粒子涂层根管镍钛器械(silver nanoparticals-coated root canal nickel titanium instruments,AgNPs-NiTi)的抗菌性能及生物相容性。方法利用脉冲电化学沉积技术制备AgNPs-NiTi。场发射扫描电镜观察AgNPs-NiTi的形貌,X射线衍射仪和能谱仪分析涂层的元素组成及含量,万能材料实验机检测AgNPs-NiTi的机械性能。将AgNPs-NiTi与粪肠球菌(E.faecalis)悬液共培养,细菌菌落计数法检测AgNPs-NiTi对E.faecalis的抗菌效果。构建离体牙根管内E.faecalis生物膜模型,将AgNPs-NiTi放入根管内模拟器械分离,用场发射电镜、活死菌染色法观察AgNPs-NiTi对E.faecalis生物膜的抗菌效果。AgNPs-NiTi与Raw264.7细胞共培养,用CCK-8法检测其细胞毒性。结果脉冲电化学沉积法在NiTi器械上构建银纳米粒子涂层,载银后NiTi器械的机械性能无明显变化。AgNPs-NiTi能够明显抑制E.faecalis的增殖,并显著破坏根管内E.faecalis生物膜。AgNPs-NiTi对Raw264.7的增殖无明显影响,无明显细胞毒性。结论 AgNPs-NiTi的机械性能与镍钛器械相仿,可抑制E.faecalis及其生物膜的活性,具有良好的生物相容性。

关键词: 根管镍钛器械, 银纳米粒子涂层, 抗菌, 生物相容性

Abstract:

Objective To investigate the antibacterial performance and biocompatibility of silver nanoparticles-coated root canal nickel titanium instruments(AgNPs-NiTi). Methods AgNPs-NiTi was prepared using pulse electrochemical deposition. The morphology of AgNPs-NiTi was observed using field emission scanning electron microscopy(FE-SEM), and the elemental composition and content were analyzed using X-ray diffraction(XRD)and energy dispersive spectroscopy(EDS). The mechanical properties of AgNPs-NiTi were tested. After Co-culturing AgNPs-NiTi with E. faecalis, the antibacterial effect was detected by colony-forming units method. By constructing an in vitro model of E. faecalis biofilm in the root canal of teeth, the antibacterial effect of AgNPs-NiTi was observed using FE-SEM and live/dead bacterial staining. In addition, AgNPs-NiTi was co-cultured with Raw 264.7 cells, and its cytotoxicity was detected by CCK-8. Results The pulse electrochemical deposition was used to construct a silver nanoparticle(AgNPs)coating on NiTi instruments with no significant change in the mechanical properties. AgNPs-NiTi significantly inhibited the proliferation of E. faecalis and damaged E. faecalis biofilm in the root canal. AgNPs-NiTi had no significant influence on the proliferation of Raw264.7 cells and had no cytotoxicity. Conclusion The mechanical properties of AgNPs-NiTi are similar to those of nickel titanium instruments. AgNPs-NiTi inhibits E. faecalis proliferation with good biocompatibility.

Key words: root canal nickel titanium instrument, silver nanoparticles(AgNPs)-coated, antibacterial performance, biocompatibility

中图分类号:

R783.1

金泓, 王汇文, 吴雨婷, 戴明睿, 冷迪雅, 朱婷婷, 吴大明. 银纳米粒子涂层根管镍钛器械的抗菌性能及生物相容性研究[J]. 口腔医学, 2024, 44(6): 438-442.

JIN Hong, WANG Huiwen, WU Yuting, DAI Mingrui, LENG Diya, ZHU Tingting, WU Daming. Study on the antibacterial performance and biocompatibility of silver nanoparticals-coated root canal nickel titanium instruments[J]. Stomatology, 2024, 44(6): 438-442.

图/表 5

参考文献 23

[1]	Peters OA. Current challenges and concepts in the preparation of root canal systems: A review[J]. J Endod, 2004, 30(8):559-567.
[2]	吴真真, 张丽萍, 郭文丽, 等. 3种机用镍钛器械预备弯曲根管中心定位能力的体外对比研究[J]. 口腔医学, 2021, 41(11):983-987,1046.
[3]	Parashos P, Gordon I, Messer HH. Factors influencing defects of rotary nickel-titanium endodontic instruments after clinical use[J]. J Endod, 2004, 30(10):722-725.
[4]	Parashos P, Messer HH. Rotary NiTi instrument fracture and its consequences[J]. J Endod, 2006, 32(11):1031-1043.
[5]	Terauchi Y, Ali WT, Abielhassan MM. Present status and future directions: Removal of fractured instruments[J]. Int Endod J, 2022, 55(Suppl 3):685-709.
[6]	Spili P, Parashos P, Messer HH. The impact of instrument fracture on outcome of endodontic treatment[J]. J Endod, 2005, 31(12):845-850.
[7]	Stuart CH, Schwartz SA, Beeson TJ, et al. Enterococcus faecalis: Its role in root canal treatment failure and current concepts in retreatment[J]. J Endod, 2006, 32(2):93-98.
[8]	陈文琴, 陈作良. 器械分离的临床决策[J]. 临床口腔医学杂志, 2016, 32(6):379-381.
[9]	夏冬, 李岩峰, 孙一丹. 镍钛器械分离的影响因素及预防措施[J]. 中华老年口腔医学杂志, 2017, 15(1):61-64.
[10]	孙炜, 侯本祥. 影响镍钛机用根管预备器械分离的因素分析[J]. 国际口腔医学杂志, 2010, 37(6):688-690,694.
[11]	Chaudhary P, Fatima F, Kumar A. Relevance of nanomaterials in food packaging and its advanced future prospects[J]. J Inorg Organomet Polym Mater, 2020, 30(12):5180-5192.
[12]	刘宝玲, 蔡汝健. 纳米银抗菌及抗生物被膜机制研究进展[J]. 动物医学进展, 2023, 44(2):98-102.
[13]	胡烈海, 朱新根, 余双, 等. 纳米银抗菌应用的研究进展[J]. 中国抗生素杂志, 2020, 45(8):745-750.
[14]	Yuan YC, Ding LP, Chen Y, et al. Nano-silver functionalized polysaccharides as a platform for wound dressings: A review[J]. Int J Biol Macromol, 2022, 194: 644-653.
[15]	徐彦彬, 李春年, 陈瑞雪, 等. 临床弃用ProTaper机用镍钛锉损伤情况分析[J]. 现代口腔医学杂志, 2019, 33(2):98-100.
[16]	Wu JT, Lei G, Yan M, et al. Instrument separation analysis of multi-used ProTaper Universal rotary system during root canal therapy[J]. J Endod, 2011, 37(6):758-763. doi: 10.1016/j.joen.2011.02.021 pmid: 21787484
[17]	Pérez-Higueras JJ, Arias A, de la Macorra JC, et al. Differences in cyclic fatigue resistance between ProTaper Next and ProTaper Universal instruments at different levels[J]. J Endod, 2014, 40(9):1477-1481. doi: 10.1016/j.joen.2014.02.025 pmid: 25146037
[18]	Vimbela GV, Ngo SM, Fraze C, et al. Antibacterial properties and toxicity from metallic nanomaterials[J]. Int J Nanomedicine, 2017, 12: 3941-3965.
[19]	Kędziora A, Speruda M, Krzyżewska E, et al. Similarities and differences between silver ions and silver in nanoforms as antibacterial agents[J]. Int J Mol Sci, 2018, 19(2):444.
[20]	Vigneswari S, Amelia TSM, Hazwan MH, et al. Transformation of biowaste for medical applications: Incorporation of biologically derived silver nanoparticles as antimicrobial coating[J]. Antibiotics(Basel), 2021, 10(3):229.
[21]	Butler J, Handy RD, Upton M, et al. Review of antimicrobial nanocoatings in medicine and dentistry: Mechanisms of action, biocompatibility performance, safety, and benefits compared to antibiotics[J]. ACS Nano, 2023, 17(8):7064-7092. doi: 10.1021/acsnano.2c12488 pmid: 37027838
[22]	Leng DY, Li Y, Zhu J, et al. The antibiofilm activity and mechanism of nanosilver- and nanozinc-incorporated mesoporous calcium-silicate nanoparticles[J]. Int J Nanomedicine, 2020, 15: 3921-3936.
[23]	Chiang YC, Wang YC, Kung JC, et al. Antibacterial silver-containing mesoporous bioglass as a dentin remineralization agent in a microorganism-challenged environment[J]. J Dent, 2021, 106: 103563.
