不同矢状骨面型成人下颌磨牙远中舌侧间隙的CBCT研究

doi:10.13591/j.cnki.kqyx.2024.11.004

摘要/Abstract

摘要：

目的研究不同矢状骨面型成年患者下颌磨牙远中舌侧间隙大小,分析限制下颌磨牙远中移动的主要骨性解剖位置,为临床磨牙远移方案的制定提供指导。方法选取97例于南京医科大学附属口腔医院正畸科就诊并符合纳入标准的成年患者,根据ANB角将患者分为骨性Ⅰ类组(n=28)、骨性Ⅱ类组(n=49)、骨性Ⅲ类组(n=20),将患者CBCT数据导入Dolphin软件进行重建,测量根分叉水平及距根分叉向根方2、4、6 mm平面第二磨牙远中根宽度、牙槽骨宽度,远中根远中和舌侧最凸点距下颌骨舌侧骨皮质内缘的距离。使用SPSS 26.0软件进行统计学分析,应用单因素方差分析和LSD-t检验比较不同矢状骨面型患者各测量项目间的差异。结果各测量平面,牙根宽度均显著小于牙槽骨宽度,差异有统计学意义(P<0.01)。不同矢状骨面型患者下颌磨牙远中舌侧间隙均小于远中间隙,且间隙大小随着测量层面加深逐渐减小,在R4和R6测量平面达到最小值。本研究的测量结果显示:R6水平处,骨性Ⅱ类组磨牙远中舌侧间隙最小,平均为(2.30±2.45)mm;骨性Ⅲ类患者磨牙远中舌侧间隙最大,平均为(4.17±2.38)mm。结论临床设计下颌磨牙远移方案时应参考CBCT,更多关注下颌磨牙远中舌侧牙槽骨量,对于轻中度牙列拥挤的骨性Ⅰ类及Ⅲ类患者,磨牙远移是一种安全且有效的治疗方式。

关键词: 磨牙远中舌侧间隙, 矢状骨面型, 磨牙远移, CBCT

Abstract:

Objective To study the distolingual space of mandibular molars in adult patients with different sagittal skeletal patterns, and to analyze the main bony anatomical sites that restrict molar distalization, in order to provide guidance for the treatment plan of molar distalization. Methods A total of 97 adult patients according to the inclusion criteria were selected from the Department of Orthodontics, the Affiliated Stomatological Hospital of Nanjing Medical University.The patients were divided into skeletal Class Ⅰ group(n=28), skeletal Class Ⅱ group(n=49) and skeletal Class Ⅲ group(n=20) according to the ANB angle. CBCT of the patients were imported into Dolphin software for 3D reconstruction. The width of the distal root of the second molar, the width of alveolar bone, the distance between the most convex point of the distal and lingual side of the distal root and the inneredge of the lingual cortex of the mandible were measured at the 2, 4, and 6 mm plane from the root furcation to the root apex. Statistical analysis was performed using SPSS 26.0 software, and univariate analysis of variance and LSD-t test were used to compare the difference. Results Root width was significantly narrower than alveolar bone width at all measurement planes(P<0.01). Molar distolingual space in patients with different sagittal skeletal patterns was smaller than molar distal space, and the size of the space gradually decreased with the deepening of the measurement level, reaching the minimum value at the R4 and R6 measurement planes. Measurement results of this study showed that at the R6 level, the molar distolingual space in skeletal Class Ⅱ group was the minimum (2.30±2.45)mm; on the contrary, skeletal Class Ⅲ group was the maximum (4.17±2.38)mm. Conclusion When designing the plan of molar distalization in clinical practice, CBCT should be used, and more attention should be paid to the lingual alveolar bone mass of the mandibular molar. It is a safe and effective treatment method for skeletal Class Ⅰ and Ⅲ patients with mild to moderate dental crowding.

Key words: molar distolingual space, sagittal skeletal patterns, molar distalization, CBCT

中图分类号:

R783.5

李宗峰, 孙莲, 潘永初. 不同矢状骨面型成人下颌磨牙远中舌侧间隙的CBCT研究[J]. 口腔医学, 2024, 44(11): 820-823.

LI Zongfeng, SUN Lian, PAN Yongchu. A CBCT study on distolingual space of mandibular molars in adults with different sagittal skeletal patterns[J]. Stomatology, 2024, 44(11): 820-823.

图/表 5

表1

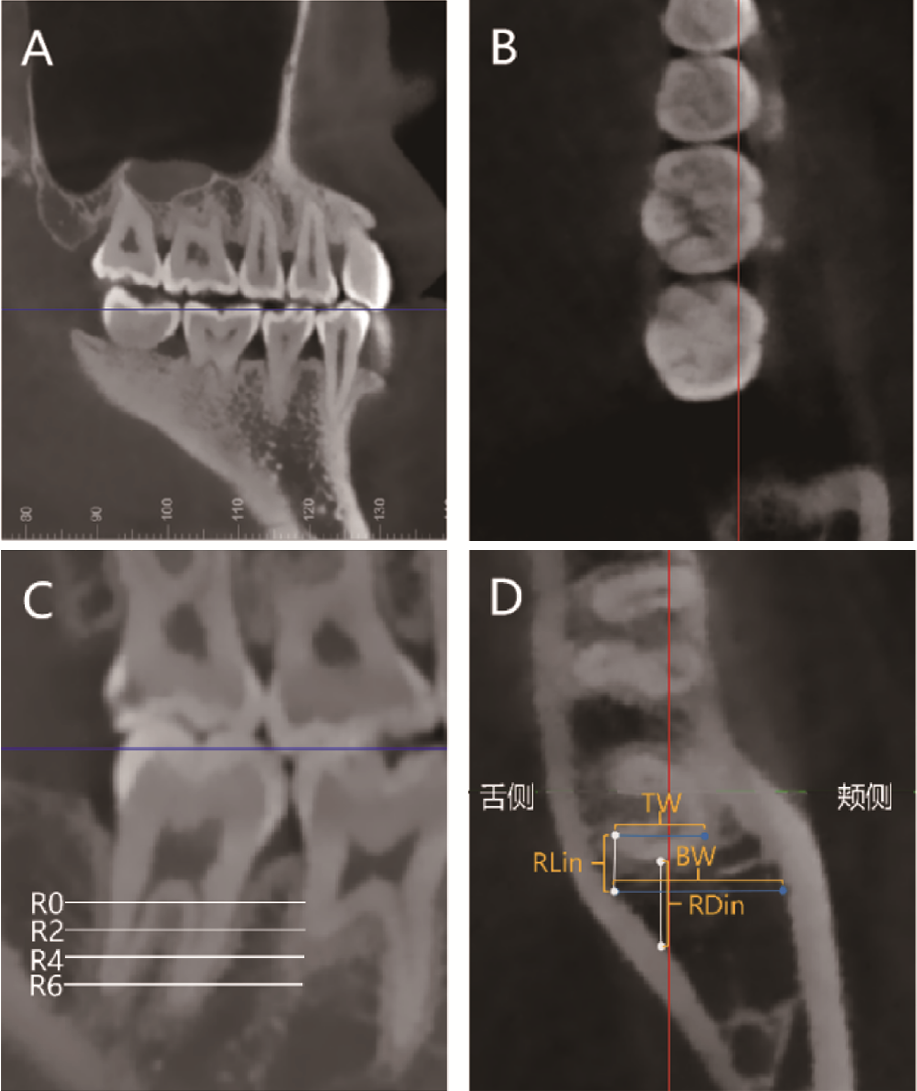

图1

表2

表3

表4

参考文献 20

[1]	田青鹭, 赵志河. 微型种植体在口腔正畸中稳定性的研究进展[J]. 国际口腔医学杂志, 2020, 47(2): 212-218.
[2]	吴冬雪, 赵云山, 马萌, 等. 无托槽隐形矫治器远移下颌磨牙的疗效[J]. 中南大学学报(医学版), 2021, 46(10): 1114-1121.
[3]	陆兴龙. 整体远移下颌牙列治疗轻中度骨性Ⅲ类错(𬌗)的临床研究[D]. 郑州: 郑州大学, 2018.
[4]	Luo N, Chen YX, Li LF, et al. Multivariate analysis of alveolar bone dehiscence and fenestration in anterior teeth after orthodontic treatment: A retrospective study[J]. Orthod Craniofac Res, 2024, 27(2): 287-296.
[5]	刘怡, 李小彤, 韩劼. 浅谈正畸与骨开窗骨开裂[J]. 中华口腔正畸学杂志, 2016, 23(1): 43-46.
[6]	孙芸芸, 姚玉光, 张晗, 等. CBCT测量不同骨面型患者下颌骨结构特征和磨牙后间隙的影响因素[J]. 吉林大学学报(医学版), 2023, 49(6): 1561-1568.
[7]	张淑婷, 吴亚星, 刘翠翠, 等. 骨性Ⅰ类与骨性Ⅱ类下颌第三磨牙及磨牙后间隙的测量分析研究[J]. 临床口腔医学杂志, 2023, 39(7): 397-401.
[8]	Moreira CR, Sales MA, Lopes PM, et al. Assessment of linear and angular measurements on three-dimensional cone-beam computed tomographic images[J]. Oral Surg Oral Med Oral Pathol Oral RadiolEndod, 2009, 108(3): 430-436.
[9]	Jarjoura K, Gagnon G, Nieberg L. Caries risk after interproximal enamel reduction[J]. Am J Orthod Dentofacial Orthop, 2006, 130(1): 26-30.
[10]	Yassir YA, McIntyre GT, Bearn DR. Orthodontic treatment and root resorption: An overview of systematic reviews[J]. Eur J Orthod, 2021, 43(4): 442-456.
[11]	Abu Alhaija ES, AlBhairan HM, AlKhateeb SN. Mandibular third molar space in different antero-posterior skeletal patterns[J]. Eur J Orthod, 2011, 33(5): 570-576.
[12]	乔峰, 左志刚, 张健. 不同矢状骨面型患者下颌磨牙后间隙特征分析[J]. 天津医药, 2014, 42(3): 268-270.
[13]	Tassoker M, Akin D, Aydin Kabakci AD, et al. Comparison of cone-beam computed tomography and panoramic radiography for mandibular morphometry[J]. Folia Morphol (Warsz), 2019, 78(4): 862-870. doi: 10.5603/FM.a2019.0031 pmid: 30888681
[14]	陈佳君, 薛超然, 王沛棋, 等. 正畸治疗中利用锥形束CT测量牙根位置方法的研究进展[J]. 口腔疾病防治, 2022, 30(10): 740-745. doi: 10.12016/j.issn.2096-1456.2022.10.009
[15]	Choi YT, Kim YJ, Yang KS, et al. Bone availability for mandibular molar distalization in adults with mandibular prognathism[J]. Angle Orthod, 2018, 88(1): 52-57. doi: 10.2319/040617-237.1 pmid: 28949768
[16]	Fan Z, Zhang Q, Jiang YJ, et al. Mandibular retromolar space in adults with different sagittal skeletal patterns[J]. Angle Orthod, 2022, 92(5): 606-612.
[17]	范雅儒, 赵浩然, 刘海霞, 等. 下颌第三磨牙发育阶段与磨牙后间隙的关系研究[J]. 口腔医学研究, 2016, 32(1): 71-74. doi: 10.11839/kqyxzh.2016.01.018
[18]	高千雅. 下颌磨牙后间隙与矢状骨面型及下颌第三磨牙萌出状态之间关系的CBCT研究[D]. 广州: 广州医科大学, 2022.
[19]	Seol J, Bayome M, Kook YA, et al. A 3-dimensional evaluation of available retromolar space for the application of ramalplates[J]. Am J Orthod Dentofacial Orthop, 2023, 164(5): 628-635.
[20]	Kim SJ, Choi TH, Baik HS, et al. Mandibular posterior anatomic limit for molar distalization[J]. Am J Orthod Dentofacial Orthop, 2014, 146(2): 190-197.

测量项目	项目内容
TW	牙根宽度
BW	牙槽骨宽度
RLin	牙根舌侧最凸点距下颌骨舌侧内层骨皮质距离
RDin	牙根远中最凸点距下颌骨舌侧内层骨皮质距离

分组	n	性别		年龄/岁	FHI/%	FMA/(°)	ANB/(°)
分组	n	男	女	年龄/岁	FHI/%	FMA/(°)	ANB/(°)
骨性Ⅰ类组	28	6	22	23.80±3.92	65.99±3.32	24.94±3.33	1.80±0.97
骨性Ⅱ类组	49	8	41	23.12±4.58	66.14±2.46	24.32±2.50	5.73±0.56^a
骨性Ⅲ类组	20	9	11	22.39±5.30	67.07±3.67	23.94±3.79	-3.55±1.99^ab
P				0.638	0.175	0.074	0.001^**

测量平面	骨性Ⅰ类			骨性Ⅱ类			骨性Ⅲ类
测量平面	TW	BW	P^*	TW	BW	P^*	TW	BW	P^*
R0	6.83±0.50	12.03±1.52	0.000	6.74±0.63	12.05±1.51	0.000	6.71±0.82	12.03±0.96	0.000
R2	5.52±0.74	11.42±1.25	0.000	5.52±0.78	11.42±1.36	0.000	5.53±1.04	10.96±1.07	0.000
R4	4.04±0.82	10.30±1.44	0.000	4.19±0.84	10.72±1.45	0.000	4.18±1.09	9.98±1.23	0.000
R6	2.31±0.84	9.16±1.45	0.000	2.39±0.71	9.69±1.42	0.000	2.95±1.23	8.99±1.50	0.000

测量平面	下颌磨牙远中舌侧间隙(RLin)			F	P	下颌磨牙远中间隙(RDin)			F	P
测量平面	骨性Ⅰ类	骨性Ⅱ类	骨性Ⅲ类	F	P	骨性Ⅰ类	骨性Ⅱ类	骨性Ⅲ类	F	P
R0	4.02±1.94	3.68±2.19	5.69±2.29^ab	6.360	0.003^**	6.47±2.10	6.15±1.88	7.18±2.69	1.157	0.325
R2	3.61±1.66	2.83±2.13	5.07±2.12^ab	8.648	0.000^**	5.01±1.98	4.87±1.98	6.45±2.96^ab	2.181	0.127
R4	3.33±2.31	2.33±2.10	4.39±1.85^b	6.976	0.002^**	4.47±2.20	3.76±1.94	5.71±2.70^b	5.359	0.006^**
R6	3.34±2.45	2.30±2.45	4.17±2.38^b	4.861	0.010^**	5.08±4.47	3.23±2.54^a	5.14±2.54^b	4.016	0.021^*
