有颞下颌关节紊乱症状的成年女性关节盘改变与下颌骨形态的相关性研究

doi:10.13591/j.cnki.kqyx.2026.01.008

摘要/Abstract

摘要：

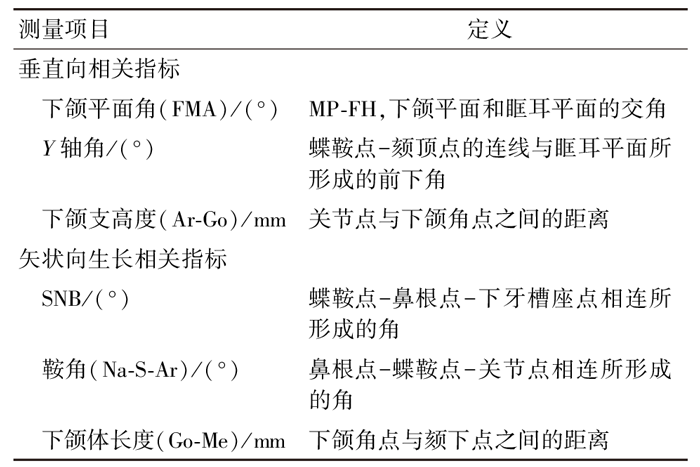

目的分析颞下颌关节盘形态、位置与下颌骨垂直向和矢状向形态的关系。方法选择因颞下颌关节紊乱综合征(temporomandibular disorders,TMD)就诊于四川大学华西口腔医院颞下颌关节科的223例成年女性患者。根据核磁共振影像(magnetic resonance imaging, MRI)将关节盘位置分为盘髁关系正常、可复性盘前移(disc displacement with reduction, DDwR)和不可复性盘前移(disc displacement without reduction, DDwoR) 3组,关节盘形态分为基本正常和异常两组。根据头颅侧位片测量下颌骨垂直向(下颌平面角、Y轴角、下颌支高度)和矢状向(SNB、下颌体长度、鞍角)形态指标。比较各个测量指标与关节盘位置、形态的相关性。结果关节盘位置和形态与下颌平面角、下颌支高度和Y轴角之间具有相关性(P<0.05),左侧关节盘位置与SNB之间具有相关性(P<0.05),双侧关节盘形态与SNB之间具有相关性(P<0.05)。结论关节盘的形态和位置与下颌骨的垂直向和矢状向形态之间有相关性,与垂直向形态之间的相关性更加密切。

关键词: 颞下颌关节紊乱综合征, 核磁共振, 头影测量, 关节盘位置, 下颌骨形态

Abstract:

Objective To analyze the relationship between the morphology and position of the temporomandibular joint disc and the vertical and sagittal morphology of the mandible. Methods A group of adult female patients with temporomandibular disorders were selected in the Department of Temporomandibular joint at West China Stomatological Hospital, Sichuan University. They were classified into normal position, disc displacement with reduction (DDwR), and disc displacement without reduction (DDwoR). The total number of patients included in this study was 223. The morphology of the disc was classified into normal and abnormal groups. Vertical (mandibular plane angle, Y-axis angle, ramus height) and sagittal (SNB, mandibular body length, saddle angle) morphological indicators of the mandible were measured on the lateral cephalometric radiographs. The correlation between the indicators and the morphology and position of the disc was compared. Results It showed that there was a correlation between the position and morphology of the disc and mandibular plane angle, Y-axis angle and ramus height (P<0.05), a correlation between the position of the left disc and SNB (P<0.05), and a correlation between the morphology of the bilateral disc and SNB (P<0.05). Conclusion There is a correlation between the morphology and position of the disc and the vertical and sagittal mandibular morphology, with a closer correlation with the vertical shape.

Key words: temporomandibular disorders, magnetic resonance imaging, cephalometry, disc position, mandibular morphology

中图分类号:

R782.6

殷晓丽, 刘洋. 有颞下颌关节紊乱症状的成年女性关节盘改变与下颌骨形态的相关性研究[J]. 口腔医学, 2026, 46(1): 48-53.

YIN Xiaoli, LIU Yang. Correlation between the changes of articular disc and mandibular morphology in adult women with temporomandibular disorders symptoms[J]. Stomatology, 2026, 46(1): 48-53.

图/表 8

表1

图1

图2

图3

表2

表3

表4

表5

参考文献 37

[1]	Ohrbach R, Dworkin SF. The evolution of TMD diagnosis: Past, present, future[J]. J Dent Res, 2016, 95(10): 1093-1101. doi: 10.1177/0022034516653922
[2]	Weinberg LA. The role of stress, occlusion, and condyle position in TMJ dysfunction-pain[J]. J Prosthet Dent, 1983, 49(4): 532-545. pmid: 6573501
[3]	Slade GD, Bair E, Greenspan JD, et al. Signs and symptoms of first-onset TMD and sociodemographic predictors of its development: The OPPERA prospective cohort study[J]. J Pain, 2013, 14(12 Suppl): T20-32.e1-3. doi: 10.1016/j.jpain.2013.07.014
[4]	Davant TS 6th, Greene CS, Perry HT, et al. A quantitative computer-assisted analysis of disc displacement in patients with internal derangement using sagittal view magnetic resonance imaging[J]. J Oral Maxillofac Surg, 1993, 51(9): 974-979;discussion 979-981. doi: 10.1016/S0278-2391(10)80038-2
[5]	Haiter-Neto F, Hollender L, Barclay P, et al. Disk position and the bilaminar zone of the temporomandibular joint in asymptomatic young individuals by magnetic resonance imaging[J]. Oral Surg Oral Med Oral Pathol Oral Radiol Endod, 2002, 94(3): 372-378. doi: 10.1067/moe.2002.127086
[6]	Katzberg RW, Westesson PL, Tallents RH, et al. Anatomic disorders of the temporomandibular joint disc in asymptomatic subjects[J]. J Oral Maxillofac Surg, 1996, 54(2): 147-153;discussion 153-155. doi: 10.1016/S0278-2391(96)90436-X
[7]	Tasaki MM, Westesson PL, Isberg AM, et al. Classification and prevalence of temporomandibular joint disk displacement in patients and symptom-free volunteers[J]. Am J Orthod Dentofacial Orthop, 1996, 109(3): 249-262. doi: 10.1016/S0889-5406(96)70148-8
[8]	Paknahad M, Shahidi S, Akhlaghian M, et al. Is mandibular Fossa morphology and articular eminence inclination associated with temporomandibular dysfunction[J]. J Dent (Shiraz), 2016, 17(2): 134-141.
[9]	Gökalp H. Disc position in clinically asymptomatic, pretreatment adolescents with Class Ⅰ, Ⅱ, or Ⅲ malocclusion[J]. J Orofac Orthop / Fortschr Der Kieferorthopädie, 2016, 77(3): 194-202. doi: 10.1007/s00056-016-0024-6
[10]	Kristensen KD, Schmidt B, Stoustrup P, et al. Idiopathic condylar resorptions: 3-dimensional condylar bony deformation, signs and symptoms[J]. Am J Orthod Dentofac Orthop, 2017, 152(2): 214-223. doi: 10.1016/j.ajodo.2016.12.020
[11]	Paknahad M, Shahidi S, Abbaszade H. Correlation between condylar position and different sagittal skeletal facial types[J]. J Orofac Orthop/Fortschr Der Kieferorthopädie, 2016, 77(5): 350-356.
[12]	Shu C, Xiong X, Huang LW, et al. The relation of cephalometric features to internal derangements of the temporomandibular joint: A systematic review and meta-analysis of observational studies[J]. Orthod Craniofac Res, 2021, 24(3): 305-313. doi: 10.1111/ocr.12454 pmid: 33290631
[13]	Shi JJ, Zhang F, Zhou YQ, et al. The relationship between partial disc displacement and mandibular dysplasia in female adolescents[J]. Med Sci Monit, 2010, 16(6): CR283-CR288.
[14]	刘加强, 吴勇, 孙良严, 等. 颌骨垂直向异常患者中颞下颌关节结构的情况分析[J]. 口腔颌面修复学杂志, 2015, 16(6): 335-338.
[15]	Jeon DM, Jung WS, Mah SJ, et al. The effects of TMJ symptoms on skeletal morphology in orthodontic patients with TMJ disc displacement[J]. Acta Odontol Scand, 2014, 72(8): 776-782. doi: 10.3109/00016357.2014.906650
[16]	Byun ES, Ahn SJ, Kim TW. Relationship between internal derangement of the temporomandibular joint and dentofacial morphology in women with anterior open bite[J]. Am J Orthod Dentofac Orthop, 2005, 128(1): 87-95. doi: 10.1016/j.ajodo.2004.01.028
[17]	Ioi H, Matsumoto R, Nishioka M, et al. Relationship of TMJ osteoarthritis/osteoarthrosis to head posture and dentofacial morphology[J]. Orthod Craniofac Res, 2008, 11(1): 8-16. doi: 10.1111/j.1601-6343.2008.00406.x pmid: 18199075
[18]	Cedströmer AL, Andlin-Sobocki A, Abbu N, et al. Condylar alterations and facial growth in children with juvenile idiopathic arthritis[J]. J Orofac Orthop / Fortschr Der Kieferorthopädie, 2020, 81(3): 163-171. doi: 10.1007/s00056-020-00216-8
[19]	Ahn SJ, Baek SH, Kim TW, et al. Discrimination of internal derangement of temporomandibular joint by lateral cephalometric analysis[J]. Am J Orthod Dentofac Orthop, 2006, 130(3): 331-339. doi: 10.1016/j.ajodo.2005.02.019
[20]	Taşkaya-Yilmaz N, Oğütcen-Toller M. Magnetic resonance imaging evaluation of temporomandibular joint disc deformities in relation to type of disc displacement[J]. J Oral Maxillofac Surg, 2001, 59(8): 860-865;discussion 865-866. doi: 10.1053/joms.2001.25016
[21]	Amaral RD, Damasceno NN, de Souza LA, et al. Magnetic resonance images of patients with temporomandibular disorders: Prevalence and correlation between disk morphology and displacement[J]. Eur J Radiol, 2013, 82(6): 990-994. doi: 10.1016/j.ejrad.2013.01.002 pmid: 23369857
[22]	马绪臣, 张震康. 颞下颌关节紊乱病双轴诊断的临床意义和规范治疗的必要性[J]. 中华口腔医学杂志, 2005, 40(5): 353-355.
[23]	Weedon S, Ahmed N, Sidebottom AJ. Prospective assessment of outcomes following disposable arthroscopy of the temporomandibular joint[J]. Br J Oral Maxillofac Surg, 2013, 51(7): 625-629. doi: 10.1016/j.bjoms.2013.06.004 pmid: 23886497
[24]	Incesu L, Taşkaya-Yilmaz N, Oğütcen-Toller M, et al. Relation-ship of condylar position to disc position and morphology[J]. Eur J Radiol, 2004, 51(3): 269-273. pmid: 15294336
[25]	Rabelo KA, Sousa Melo SL, Torres MGG, et al. Assessment of condyle position, Fossa morphology, and disk displacement in symptomatic patients[J]. Oral Surg Oral Med Oral Pathol Oral Radiol, 2017, 124(2): 199-207. doi: 10.1016/j.oooo.2017.04.007
[26]	Suzuki K, Mito T, Ishizaki K, et al. Mandibular lateral translation during symmetric mandibular function in relation to patterns of intracapsular derangement of TMJ[J]. Int J Stomatol Occlusion Med, 2009, 2(1): 16-23. doi: 10.1007/s12548-009-0003-2
[27]	Bertram S, Moriggl A, Rudisch A, et al. Structural characteristics of bilateral temporomandibular joint disc displacement without reduction and osteoarthrosis are important determinants of horizontal mandibular and vertical ramus deficiency: A magnetic resonance imaging study[J]. J Oral Maxillofac Surg, 2011, 69(7): 1898-1904. doi: 10.1016/j.joms.2010.12.026
[28]	Hsieh YJ, Darvann TA, Hermann NV, et al. Three-dimensional assessment of facial morphology in children and adolescents with juvenile idiopathic arthritis and moderate to severe TMJ involvement using 3D surface scans[J]. Clin Oral Investig, 2020, 24(2): 799-807. doi: 10.1007/s00784-019-02962-5
[29]	Lin M, Xu YF, Wu H, et al. Comparative cone-beam computed tomography evaluation of temporomandibular joint position and morphology in female patients with skeletal Class Ⅱ malocclusion[J]. J Int Med Res, 2020, 48(2): 300060519892388. doi: 10.1177/0300060519892388
[30]	Noh KJ, Baik HS, Han SS, et al. Differences in mandibular condyle and glenoid Fossa morphology in relation to vertical and sagittal skeletal patterns: A cone-beam computed tomography study[J]. Korean J Orthod, 2021, 51(2): 126-134. doi: 10.4041/kjod.2021.51.2.126 pmid: 33678628
[31]	Ma HD, Teng HD, Li AN, et al. The pressure in the temporomandibular joint in the patients with maxillofacial deformities[J]. J Stomatol Oral Maxillofac Surg, 2023, 124(1S): 101285.
[32]	Wang J, Dong X, Lei J, et al. β-catenin orchestrates Gli1⁺ cell fate in condylar development and TMJOA[J]. J Dent Res, 2024, 103(12): 1291-1301. doi: 10.1177/00220345241274354
[33]	Li W, Wu N, Wang JM, et al. Role of HIF-2α/NF-κB pathway in mechanical stress-induced temporomandibular joint osteoarthritis[J]. Oral Dis, 2022, 28(8): 2239-2247. doi: 10.1111/odi.v28.8
[34]	Arieta-Miranda JM, Silva-Valencia M, Flores-Mir C, et al. Spatial analysis of condyle position according to sagittal skeletal relationship, assessed by cone beam computed tomography[J]. Prog Orthod, 2013, 14: 36. doi: 10.1186/2196-1042-14-36 pmid: 24325842
[35]	Park IY, Kim JH, Park YH. Three-dimensional cone-beam computed tomography based comparison of condylar position and morphology according to the vertical skeletal pattern[J]. Korean J Orthod, 2015, 45(2): 66-73. doi: 10.4041/kjod.2015.45.2.66
[36]	Saccomanno S, Deli R, DI Cintio G, et al. Retrospective epidemiological study of mandibular rotational types in patients with orthodontical malocclusion[J]. Acta Otorhinolaryngol Ital, 2018, 38(2): 160-165. doi: 10.14639/0392-100X-1682 pmid: 29967561
[37]	Jung WS, Kim H, Jeon DM, et al. Magnetic resonance imaging-verified temporomandibular joint disk displacement in relation to sagittal and vertical jaw deformities[J]. Int J Oral Maxillofac Surg, 2013, 42(9): 1108-1115. doi: 10.1016/j.ijom.2013.03.012

	测量项目		组别			F	P
	测量项目		正常	DDwR	DDwoR	F	P
垂直向	FMA	R	24.47±5.88	24.71±5.76	28.24±6.84	9.32	0.000^**
	FMA	L	23.83±5.92	25.48±5.57	28.64±7.03	11.38	0.000^**
	Y轴角	R	62.11±3.41	61.55±3.65	63.08±3.91	3.10	0.047^*
	Y轴角	L	61.70±3.44	61.87±3.59	63.52±3.84	5.74	0.004^**
	Ar-Go	R	46.50±4.41	44.82±3.75	43.77±4.13	9.45	0.000^**
	Ar-Go	L	46.88±4.20	45.24±4.04	43.14±3.95	15.67	0.000^**
矢状向	SNB	R	77.75±3.60	77.65±3.06	76.60±3.91	2.56	0.080
	SNB	L	77.69±3.57	77.88±3.53	76.24±3.67	4.74	0.010^*
	Na-S-Ar	R	127.36±5.51	125.81±3.97	126.05±5.26	1.99	0.139
	Na-S-Ar	L	127.69±5.09	125.98±4.63	125.92±5.54	2.78	0.064
	Go-Me	R	67.16±4.53	67.61±3.94	65.83±5.52	2.70	0.070
	Go-Me	L	67.16±4.82	66.78±4.00	66.24±5.70	0.66	0.521

测量项目		P
测量项目		正常-DDwR	正常-DDwoR	DDwR-DDwoR
FMA	R	0.831	0.000^**	0.002^**
FMA	L	0.111	0.000^**	0.002^**
Y轴角	R	0.403	0.082	0.021^*
Y轴角	L	0.787	0.003^**	0.005^**
Ar-Go	R	0.027^*	0.000^**	0.159
Ar-Go	L	0.016^*	0.000^**	0.001^**
SNB	R	-	-	-
SNB	L	0.751	0.016^*	0.005^**

测量项目			组别		F	P
测量项目			基本正常	异常	F	P
垂直向	FMA	R	24.76±5.59	27.58±7.15	10.92	0.001^**
	FMA	L	24.33±5.72	28.27±6.78	22.17	0.000^**
	Y轴角	R	62.05±3.40	63.28±4.02	6.16	0.018^*
	Y轴角	L	61.69±3.48	63.27±3.81	10.34	0.001^**
	Ar-Go	R	46.02±4.20	43.87±4.19	14.54	0.000^**
	Ar-Go	L	46.36±4.14	43.32±3.95	30.68	0.000^**
矢状向	SNB	R	77.80±3.40	76.62±3.84	5.90	0.016^*
	SNB	L	77.82±3.56	76.54±3.66	6.91	0.009^**
	Na-S-Ar	R	126.71±5.13	126.24±5.16	0.45	0.504
	Na-S-Ar	L	127.07±4.96	125.76±5.28	3.59	0.059
	Go-Me	R	67.26±4.40	66.08±5.35	3.27	0.072
	Go-Me	L	67.27±4.44	66.00±5.35	3.76	0.054
