牙科氧化锆陶瓷废弃粉体再生利用研究进展

doi:10.13591/j.cnki.kqyx.2026.02.010

摘要/Abstract

摘要：

牙科氧化锆陶瓷凭借其优良的性能在口腔修复领域得到广泛应用。目前主流制备技术是采用CAD/CAM技术,在CAD/CAM数控加工阶段,氧化锆预烧结体超过80%的体积在加工后成为废弃粉体,造成资源的巨大浪费,需要寻找可行的工艺路线,使废弃的氧化锆粉体能够再生利用。本文围绕牙科氧化锆陶瓷废弃粉体再生利用,从牙科氧化锆陶瓷CAD/CAM制备工艺,废弃氧化锆的除杂工艺,氧化锆粉体的研磨、成型、烧结、性能评价以及再生氧化锆陶瓷的生物相容性评价等方面进行综述,为推动废弃粉体再生利用和构建牙科陶瓷绿色制造提供参考。

关键词: 牙科氧化锆陶瓷, CAD/CAM技术, 废弃粉体, 再生利用, 性能评价

Abstract:

Dental zirconia ceramics have been widely applied in the field of oral restoration due to their excellent performance. The current preparation technology involves CAD/CAM manufacturing process. During the CAD/CAM machining stage, over 80% of the volume of zirconia pre-sintered blocks is removed as waste powder, leading to significant resource wastage. There is an urgent need to explore feasible technical pathways to recycle and reuse this waste zirconia powder. This paper reviews the recycling of waste dental zirconia powder, covering aspects such as CAD/CAM processes, purification of waste zirconia, powder grinding, forming, sintering, performance evaluation, and biocompatibility of recycled zirconia ceramics. The aim is to provide references for promoting the recycling of waste powder and establishing a green manufacturing system for dental ceramics.

Key words: dental zirconia ceramics, CAD/CAM technology, waste powder, recycling, performance evaluation

中图分类号:

R783.1

陈妍如, 黄阳, 冯璐, 王万宇, 李伶, 郭大鹏, 周光, 邓斌. 牙科氧化锆陶瓷废弃粉体再生利用研究进展[J]. 口腔医学, 2026, 46(2): 142-147.

CHEN Yanru, HUANG Yang, FENG Lu, WANG Wanyu, LI Ling, GUO Dapeng, ZHOU Guang, DENG Bin. Progress of research on recycling of waste dental zirconia powder[J]. Stomatology, 2026, 46(2): 142-147.

图/表 4

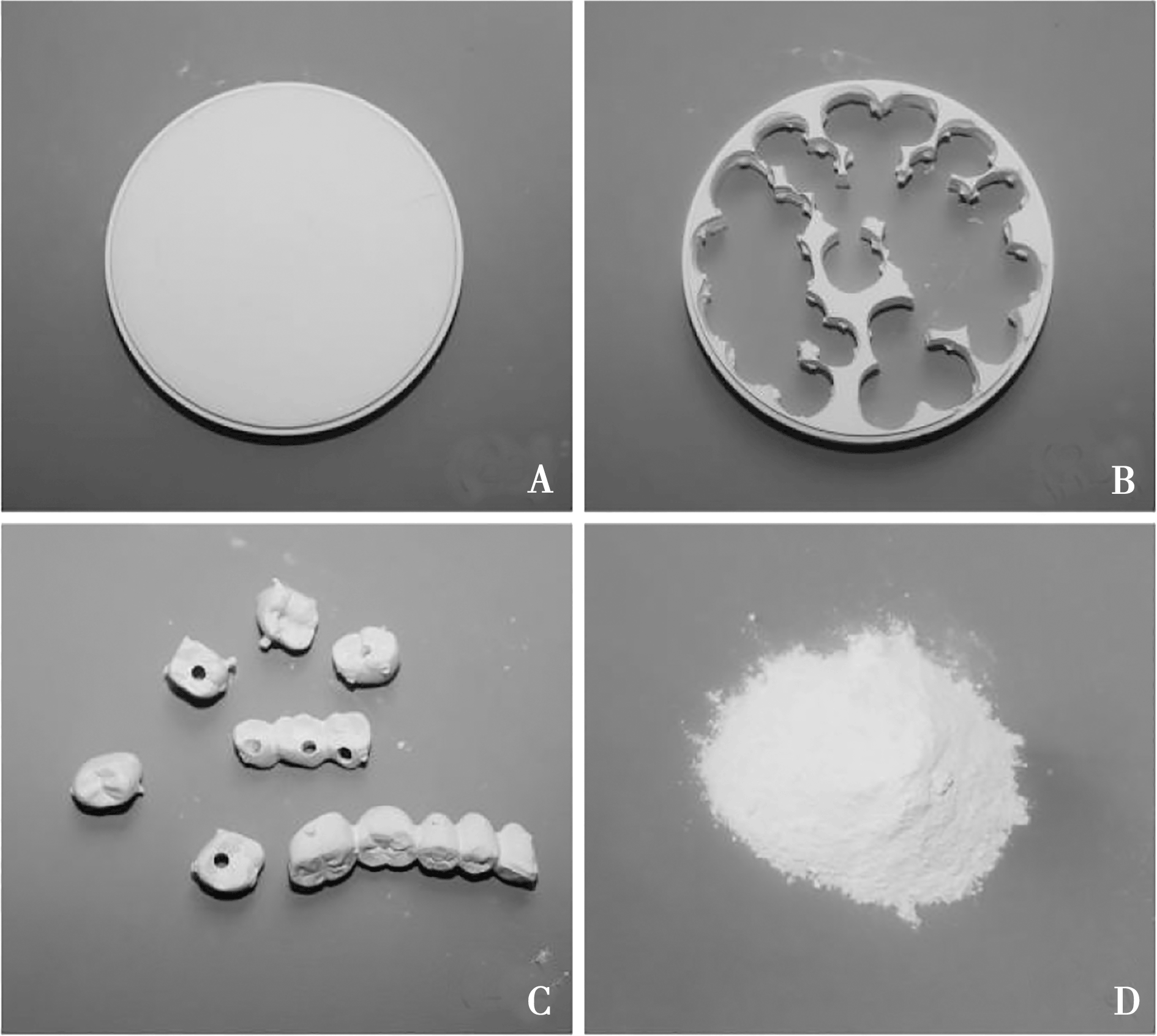

图1

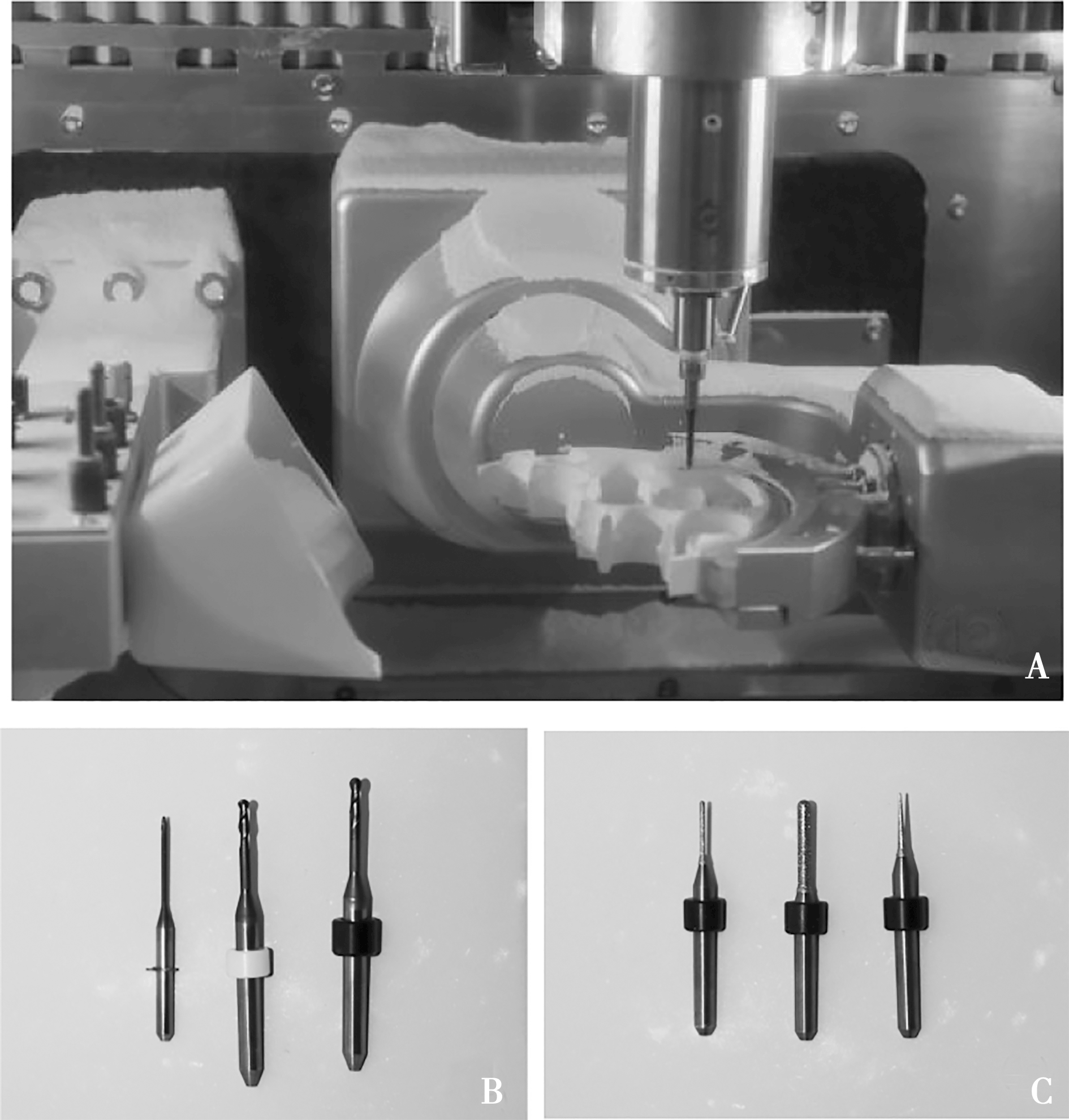

图2

表1

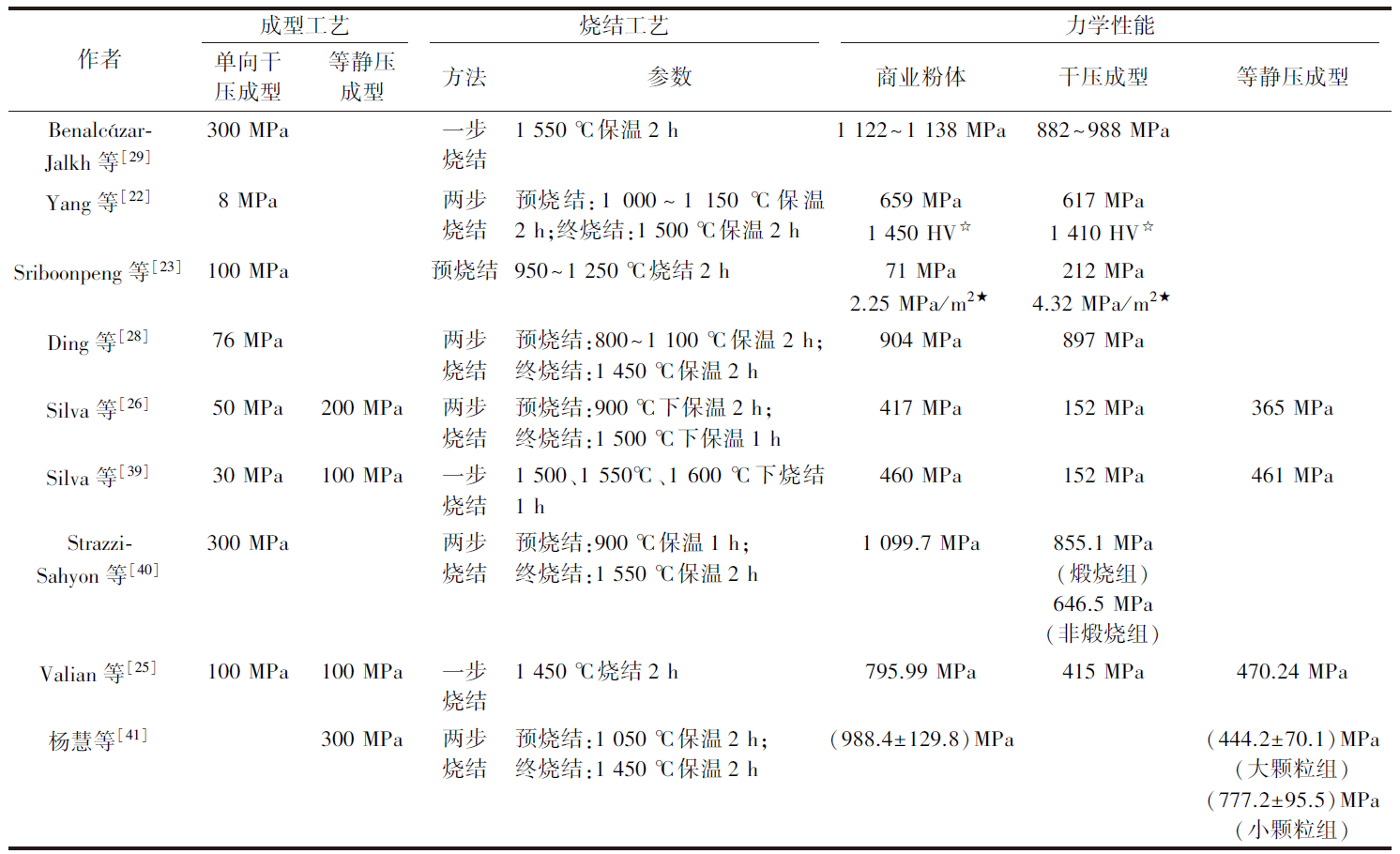

表2

参考文献 48

[1]	骆小平. 牙科陶瓷材料及修复体制作技术的新进展[J]. 口腔材料器械杂志, 2016, 25(1): 1-4.
[2]	中华口腔医学会口腔美学专业委员会, 中华口腔医学会口腔材料专业委员会. 全瓷美学修复材料临床应用专家共识[J]. 中华口腔医学杂志, 2019, 54(12):825-828.
[3]	Yin YK, Xu JY, Ji M, et al. A critical review on sintering and mechanical processing of 3Y-TZP ceramics[J]. Ceram Int, 2023, 49(2): 1549-1571. doi: 10.1016/j.ceramint.2022.10.159
[4]	Cesar PF, Miranda RBP, Santos KF, et al. Recent advances in dental zirconia: 15 years of material and processing evolution[J]. Dent Mater, 2024, 40(5): 824-836. doi: 10.1016/j.dental.2024.02.026 pmid: 38521694
[5]	Denry I, Kelly JR. State of the art of zirconia for dental applications[J]. Dent Mater, 2008, 24(3): 299-307. doi: 10.1016/j.dental.2007.05.007 pmid: 17659331
[6]	Kelly JR, Denry I. Stabilized zirconia as a structural ceramic: An overview[J]. Dent Mater, 2008, 24(3): 289-298. doi: 10.1016/j.dental.2007.05.005 pmid: 17624420
[7]	Duret F, Blouin JL, Duret B. CAD-CAM in dentistry[J]. J Am Dent Assoc, 1988, 117(6): 715-720. pmid: 3058771
[8]	Cossu CMFA, Pais Alves MFR, de Assis LCL, et al. Development and characterization of Al₂O₃-ZrO₂ composites using ZrO₂(Y₂O₃)-recycled as raw material[J]. Mater Sci Forum, 2018, 912: 124-129.
[9]	Ozdogan MS, Karslioglu R. Evaluation of microstructure and mechanical properties of PMMA matrix composites reinforced with residual YSZ from CAD/CAM milling process[J]. Int J Dent Mater, 2021, 3(2): 37-44.
[10]	Elzahar HB, El-Okaily MS, Khedr MH, et al. Novel cold cure acrylic denture base with recycled zirconia nano-fillers that were functionalized by HEMA agent incorporation: Using the sprinkle approach[J]. Int J Nanomedicine, 2022, 17: 4639-4658. doi: 10.2147/IJN.S374258
[11]	Campos TMB, Dos Santos C, Alves LMM, et al. Minimally processed recycled yttria-stabilized tetragonal zirconia for dental applications: Effect of sintering temperature on glass infiltration[J]. J Mech Behav Biomed Mater, 2024, 150: 106311. doi: 10.1016/j.jmbbm.2023.106311
[12]	Gouveia PF, Schabbach LM, Souza JCM, et al. New perspectives for recycling dental zirconia waste resulting from CAD/CAM manufacturing process[J]. J Clean Prod, 2017, 152: 454-463. doi: 10.1016/j.jclepro.2017.03.117
[13]	Torman KM. Recycling of dental zirconia residuals resulting from CAD/CAM milling process[D]. İzmir: Graduate School of Natural and Applied Sciences, İzmir Kâtip Çelebi University, 2022.
[14]	雷小宝, 谢峰, 廖文和. 医用半烧结氧化锆陶瓷在义齿CAM加工中的应用[J]. 现代制造工程, 2015(9): 70-73, 91.
[15]	Oliveira AR, Ziglioli NU, Marocho SMS, et al. Effect of the CAD/CAM milling protocol on the fracture behavior of zirconia monolithic crowns[J]. Materials (Basel), 2024, 17(12): 2981.
[16]	Patil A, Jebaseelan D. 3-D surface morphological characterization of CAD/CAM milled dental zirconia: An in vitro study of the effect of post-fabrication processes[J]. Materials (Basel), 2022, 15(13): 4685. doi: 10.3390/ma15134685
[17]	郭亚林, 魏煦, 景建龙. 三种扫描流程制作氧化锆修复体的临床效果比较研究[J]. 口腔医学, 2022, 42(11): 1006-1010.
[18]	Lops D, Parpaiola A, Paniz G, et al. Interproximal papilla stability around CAD/CAM and stock abutments in anterior regions: A 2-year prospective multicenter cohort study[J]. Int J Periodontics Restorative Dent, 2017, 37(5): 657-665. doi: 10.11607/prd.3184 pmid: 28817129
[19]	Kato K, Shyu CS. Maching of semi-sintered zirconia and its full-sintering for final shape[J]. VBI-Ber, 1996(1276):427-434.
[20]	Song JH, Evans JRG. On the machinability of ceramic compacts[J]. J Eur Ceram Soc, 1997, 17(14): 1665-1673. doi: 10.1016/S0955-2219(97)00041-1
[21]	李石保. 牙科用PMMA-ZrO₂仿生纳米复合材料的设计、制备、性能及应用研究[D]. 长沙: 国防科技大学, 2005.
[22]	Yang H, Yamanaka K, Yu H, et al. Optimizing the microstructure, mechanical, and optical properties of recycled zirconia for dental applications[J]. Ceram Int, 2024, 50(24): 52848-52860. doi: 10.1016/j.ceramint.2024.10.137
[23]	Sriboonpeng C, Nonkumwong J, Srisombat L, et al. Influence of sintering temperature on phase formation, microstructure and mechanical properties of the recycled ceramic body derived from CAD/CAM dental zirconia waste[J]. Chiang Mai J Sci, 2019, 46(2): 370-386.
[24]	Sriboonpeng C, Nonkumwong J, Srisombat L, et al. Effect of vibro-milling time on phase transformation and particle size of zirconia nanopowders derived from dental zirconia-based pre-sinter block debris[J]. Chiang Mai J Sci, 2017, 44(3): 1100-1112.
[25]	Valian A, Ghasemi A, Rastbood E, et al. Exploring physical and mechanical properties of hydrothermally processed recycled non-sintered dental zirconia wastes[J]. J Mech Behav Biomed Mater, 2024, 160: 106708. doi: 10.1016/j.jmbbm.2024.106708
[26]	Silva YBF, Acchar W, Silva VM. Feasibility study of zirconia waste recycling obtained during the machining of single and multiple dental prosthesis[J]. Mater Sci Forum, 2016, 881: 387-391. doi: 10.4028/www.scientific.net/MSF.881
[27]	杨慧. 成型及烧结工艺对牙科再生氧化锆陶瓷性能的影响[D]. 福州: 福建医科大学, 2021.
[28]	Ding H, Tsoi JK, Kan CW, et al. A simple solution to recycle and reuse dental CAD/CAM zirconia block from its waste residuals[J]. J Prosthodont Res, 2021, 65(3): 311-320. doi: 10.2186/jpr.JPR_D_20_00002 pmid: 33028797
[29]	Benalcázar-Jalkh EB, Campos TMB, Dos Santos C, et al. Novel bilayered zirconia systems using recycled 3Y-TZP for dental applications[J]. Dent Mater, 2025, 41(4): 402-413. doi: 10.1016/j.dental.2024.12.013
[30]	Kamiya M, Mori Y, Kojima T, et al. Recycling process for yttria-stabilized tetragonal zirconia ceramics using a hydrothermal treatment[J]. J Mater Cycles Waste Manag, 2007, 9(1): 27-33.
[31]	Li HZ, Song L, Sun JL, et al. Dental ceramic prostheses by stereolithography-based additive manufacturing: Potentials and challenges[J]. Adv Appl Ceram, 2019, 118(1/2): 30-36. doi: 10.1080/17436753.2018.1447834
[32]	Osman RB, van der Veen AJ, Huiberts D, et al. 3D-printing zirconia implants; a dream or a reality An in-vitro study evaluating the dimensional accuracy, surface topography and mechanical properties of printed zirconia implant and discs[J]. J Mech Behav Biomed Mater, 2017, 75: 521-528. doi: 10.1016/j.jmbbm.2017.08.018
[33]	Xiang D, Xu YX, Bai W, et al. Dental zirconia fabricated by stereolithography: Accuracy, translucency and mechanical properties in different build orientations[J]. Ceram Int, 2021, 47(20): 28837-28847. doi: 10.1016/j.ceramint.2021.07.044
[34]	Li HZ, Song L, Sun JL, et al. Stereolithography-fabricated zirconia dental prostheses: Concerns based on clinical requirements[J]. Adv Appl Ceram, 2020, 119(5/6): 236-243. doi: 10.1080/17436753.2019.1709687
[35]	Giugliano TS, Zhang Y, Janal MN, et al. In vitro comparison of physical characteristics of milled versus printed zirconia discs[J]. J Prosthodont, 2024, 33(9): 891-898. doi: 10.1111/jopr.v33.9
[36]	Su C, Lu ZC, Ji X, et al. Optical properties of recycled zirconia for dental applications[J]. J Prosthet Dent, 2024, 131(6): 1237. e1-1231237.e7.
[37]	Cordeiro VV, Rodrigues AM, da Costa FP, et al. The harnessing of the waste arising from Y-TZP dental ceramics manufactured by CAD/CAM to be used as alternative dental materials[J]. Ceram Int, 2022, 48(24): 36149-36155. doi: 10.1016/j.ceramint.2022.08.171
[38]	Hovakhti A, Alhavaz A, Qujeq D, et al. Zirconia recycling and evaluating the effect of wet and dry grinding with or without heat treatment, flexural strength of this ceramic[J]. Ann Dent Spec, 2018, 6: 250-255.
[39]	Silva LB, Acchar W, Silva VM. Study of the sintering dental ceramic waste from ZrO₂-Y₂O₃ system[J]. Mater Sci Forum, 2016, 881: 392-397. doi: 10.4028/www.scientific.net/MSF.881
[40]	Strazzi-Sahyon HB, Campos TB, Dos Santos C, et al. Effect of calcination on minimally processed recycled zirconia powder derived from milling waste[J]. Dent Mater, 2024, 40(9): 1477-1486. doi: 10.1016/j.dental.2024.06.026 pmid: 38944559
[41]	杨慧, 卢枳岑, 杨松, 等. 粉体粒度及预烧结升温速度对口腔再生氧化锆陶瓷性能的影响[J]. 中华口腔医学杂志, 2022, 57(5): 516-522.
[42]	Zhang F, Van Meerbeek B, Vleugels J. Importance of tetragonal phase in high-translucent partially stabilized zirconia for dental restorations[J]. Dent Mater, 2020, 36(4): 491-500. doi: S0109-5641(20)30017-8 pmid: 32061441
[43]	Ban S. Development and characterization of ultra-high translucent zirconia using new manufacturing technology[J]. Dent Mater J, 2023, 42(1): 1-10.
[44]	Almazdi AA, Khajah HM, Monaco EA Jr, et al. Applying microwave technology to sintering dental zirconia[J]. J Prosthet Dent, 2012, 108(5): 304-309. doi: 10.1016/S0022-3913(12)60181-4 pmid: 23107238
[45]	Ribeiro ASL, Arata A, de Lima NB, et al. Comparison of a laboratorial scale synthesized and a commercial yttria-tetragonal zirconia polycrystals ceramics submitted to microwave sintering[J]. Int J Appl Ceram Technol, 2019, 16(5): 2020-2027. doi: 10.1111/ijac.v16.5
[46]	Luz JN, Kaizer MDR, Ramos NC, et al. Novel speed sintered zirconia by microwave technology[J]. Dent Mater, 2021, 37(5): 875-881. doi: 10.1016/j.dental.2021.02.026 pmid: 33715863
[47]	赵祯, 代康, 于海, 等. 立体光固化成型氧化锆陶瓷的生物安全性评价[J]. 口腔医学, 2022, 42(1): 47-52.
[48]	Han AF, Tsoi JKH, Lung CYK, et al. An introduction of biological performance of zirconia with different surface characteristics: A review[J]. Dent Mater J, 2020, 39(4): 523-530. doi: 10.4012/dmj.2019-200 pmid: 32507797

作者	研磨工艺		粉体粒度D及分布
Benalcázar-Jalkh等^[29]	球磨,12 h,转速20 r/min		D₁₀=0.17 μm,D₅₀=0.80 μm,D₉₀=2.07 μm
Yang等^[22]	行星磨,转速350 r/min	1 h	D₁₀=0.40 μm,D₅₀=1.18 μm,D₉₀=2.85 μm
		2 h	D₁₀=0.32 μm,D₅₀=0.89 μm,D₉₀=2.49 μm
		3 h	D₁₀=0.40 μm,D₅₀=1.05 μm,D₉₀=2.17 μm
		6 h	D₁₀=0.33 μm,D₅₀=0.72 μm,D₉₀=1.66 μm
Sriboonpeng等^[24]	振动磨,2 h		D₅₀=58.48 nm
Gouveia等^[12]	超声破碎		0.4~240 μm
