根盾技术和不翻瓣即刻种植在不同牙龈生物型的种植美学比较

doi:10.13591/j.cnki.kqyx.2023.04.008

Abstract

Abstract:

Objective To compare the esthetics and clinical outcomes in different gingival biotypes between immediate implant placement(IIP) using the conventional flap-less approach and the socket-shield technique(SST). Methods Thirty patients with maxillary anterior tooth and corresponding indications that needed immediate implant and restoration were enrolled. Selected patients(n=30) were randomly allocated to two equal groups for modified immediate implant with SST(n=15) and conventional flap-less immediate implant(n=15). Then according to the visibility of the periodontal probe, the patients were divided into thin gingival and thick gingival biotype. The patients received provisional crown immediately after surgery and definitive restoration 4 months later. Twelve months after the restoration, the patients were revisited for clinical examination. The esthetic outcomes were evaluated by pink esthetic scores(PES) assessment and model analysis including the position of gingival margin and labial contour alternation. Clinical parameters, including the modified sulcus bleeding index(mSBI) was assessed. Postoperative complications and patient satisfaction were also analyzed. Results Twelve months after surgery, all the implants survived. Labial contour alteration were (-0.49±0.18)mm in IIP group and (-0.21±0.18)mm in SST group(P<0.05).For patients with thin gingival biotype, it was (-0.58±0.17)mm in IIP group, and (-0.20±0.19)mm in SST group(P<0.05). The recession of gingival margin reached (-0.76±0.22)mm in IIP group, and (-0.41±0.12)mm in SST group. For patients with thin gingiva, it was (-0.82±0.23)mm in IIP group, and (-0.20±0.19)mm in SST group(P<0.05). PES of IIP group was 10.47±1.15 and SST group was 11.87±0.81. For thin gingival biotype, PES of IIP was 9.78±0.92 and SST was 12.01±0.85 (P<0.05). However. there was no statistical significance for patients with thick gingival biotype. The results of peri-implant exploration showed decreased mSBI values in SST group. Patients in all groups were satisfied with the final esthetic effects. Conclusion SST could significantly improve the esthetic outcome of immediate implant crown by maintaining the contour of alveolar ridge, the gingival margin and the quality of peri-implant tissue, especially for patients with thin gingival biotype.

Key words: socket-shield technique, immediate implant placement, gingival biotype, anterior tooth aesthetics

CLC Number:

R783.4

ZHU Mengfei,LIU Xin,TANG Xuyan. Comparison of the esthetics in different gingival biotypes between the socket-shield technique and the flap-less immediate implant[J]. Stomatology, 2023, 43(4): 327-333.

Figures/Tables 8

Fig.1

Tab.1

Fig.2

Tab.2

Fig.3

Tab.3

Fig.4

Fig.5

References 34

[1]	Pour NN, Ghaedi B, Sohrabi M. Soft-tissue esthetic outcome of single implants: Immediate placement in fresh extraction sockets versus conventional placement in healed sockets[J]. J Indian Soc Periodontol, 2018, 22(3):249-253. doi: 10.4103/jisp.jisp_21_18 pmid: 29962705
[2]	Gluckman H, Nagy K, Du Toit J. Prosthetic management of implants placed with the socket-shield technique[J]. J Prosthet Dent, 2019, 121(4):581-585. doi: S0022-3913(18)30562-6 pmid: 30554825
[3]	Mangano FG, Mangano C, Ricci M, et al. Esthetic evaluation of single-tooth Morse taper connection implants placed in fresh extraction sockets or healed sites[J]. J Oral Implantol, 2013, 39(2):172-181. doi: 10.1563/AAID-JOI-D-11-00112 pmid: 22126700
[4]	Esposito M, Zucchelli G, Cannizzaro G, et al. Immediate, immediate-delayed (6 weeks) and delayed (4 months) post-extractive single implants: 1-year post-loading data from a randomised controlled trial[J]. Eur J Oral Implantol, 2017, 10(1):11-26. pmid: 28327692
[5]	Evans CDJ, Chen ST. Esthetic outcomes of immediate implant placements[J]. Clin Oral Implants Res, 2008, 19(1):73-80.
[6]	Brown SDK, Payne AGT. Immediately restored single implants in the aesthetic zone of the maxilla using a novel design: 1-year report[J]. Clin Oral Implants Res, 2011, 22(4):445-454. doi: 10.1111/clr.2011.22.issue-4
[7]	Hürzeler MB, Zuhr O, Schupbach P, et al. The socket-shield technique: A proof-of-principle report[J]. J Clin Periodontol, 2010, 37(9):855-862. doi: 10.1111/j.1600-051X.2010.01595.x pmid: 20712701
[8]	Chen C, Pan Y. Socketshield technique for ridge preservation: a case report[J]. J Prosthod Implantol, 2013, 2(2):16-21.
[9]	Gluckman H, Toit JD, Salama M. The socket-shield technique to support the buccofacial tissues at immediate implant placement[J]. Int Dent Afr Ed, 2015, 5(3):6-14.
[10]	Al Dary H, Private p PAJ, AlHadidi A. The socket shield technique using bone trephine: A case report[J]. Int J Dent Oral Sci, 2015: 1-5.
[11]	Dash S, Mohapatra A, Srivastava G, et al. Retaining and regaining esthetics in the anterior maxillary region using the socket-shield technique[J]. Contemp Clin Dent, 2020, 11(2):158-161. doi: 10.4103/ccd.ccd_16_20
[12]	Mitsias ME, Siormpas KD, Kontsiotou-Siormpa E, et al. A step-by-step description of PDL-mediated ridge preservation for immediate implant rehabilitation in the esthetic region[J]. Int J Periodontics Restorative Dent, 2015, 35(6):835-841. doi: 10.11607/prd.2148 pmid: 26509987
[13]	Bäumer D, Zuhr O, Rebele S, et al. The socket-shield technique: First histological, clinical, and volumetrical observations after separation of the buccal tooth segment-a pilot study[J]. Clin Implant Dent Relat Res, 2015, 17(1):71-82. doi: 10.1111/cid.2015.17.issue-1
[14]	Cherel F, Etienne D. Papilla preservation between two implants: A modified socket-shield technique to maintain the scalloped anatomy? A case report[J]. Quintessence Int, 2014, 45(1):23-30. doi: 10.3290/j.qi.a30765 pmid: 24392492
[15]	Kan JYK, Rungcharassaeng K. Proximal socket shield for interimplant papilla preservation in the esthetic zone[J]. Int J Periodontics Restorative Dent, 2013, 33(1):e24-e31. doi: 10.11607/prd.1346 pmid: 23342355
[16]	Mitsias ME, Siormpas KD, Kotsakis GA, et al. The root membrane technique: Human histologic evidence after five years of function[J]. Biomed Res Int, 2017, 2017: 7269467.
[17]	Gluckman H, Salama M, Du Toit J. A retrospective evaluation of 128 socket-shield cases in the esthetic zone and posterior sites: Partial extraction therapy with up to 4 years follow-up[J]. Clin Implant Dent Relat Res, 2018, 20(2):122-129. doi: 10.1111/cid.2018.20.issue-2
[18]	Linkevicius T, Apse P, Grybauskas S, et al. The influence of soft tissue thickness on crestal bone changes around implants: A 1-year prospective controlled clinical trial[J]. Int J Oral Maxillofac Implants, 2009, 24(4):712-719.
[19]	Ganapathy D, Sathyamoorthy A, Ranganathan H, et al. Effect of resin bonded luting agents influencing marginal discrepancy in all ceramic complete veneer crowns[J]. J Clin Diagn Res, 2016, 10(12):ZC67-ZC70.
[20]	Zweers J, Thomas RZ, Slot DE, et al. Characteristics of periodo-ntal biotype, its dimensions, associations and prevalence: A systematic review[J]. J Clin Periodontol, 2014, 41(10):958-971. doi: 10.1111/jcpe.12275
[21]	Chappuis V, Araújo MG, Buser D. Clinical relevance of dimensional bone and soft tissue alterations post-extraction in esthetic sites[J]. Periodontol 2000, 2017, 73(1):73-83.
[22]	Boynueğ D, Nemli SK, Kasko YA. Significance of keratinized mucosa around dental implants: A prospective comparative study[J]. Clin Oral Implants Res, 2013, 24(8):928-933. doi: 10.1111/clr.2013.24.issue-8
[23]	Cardaropoli G, Lekholm U, Wennström JL. Tissue alterations at implant-supported single-tooth replacements: A 1-year prospective clinical study[J]. Clin Oral Implants Res, 2006, 17(2):165-171. doi: 10.1111/clr.2006.17.issue-2
[24]	Morton D, Chen ST, Martin WC, et al. Consensus statements and recommended clinical procedures regarding optimizing esthetic outcomes in implant dentistry[J]. Int J Oral Maxillofac Implants, 2014, 29(Suppl):216-220.
[25]	Spray JR, Black CG, Morris HF, et al. The influence of bone thickness on facial marginal bone response: Stage 1 placement through stage 2 uncovering[J]. Ann Periodontol, 2000, 5(1):119-128. doi: 10.1902/annals.2000.5.1.119 pmid: 11885170
[26]	Cabello G, Rioboo M, Fábrega JG. Immediate placement and restoration of implants in the aesthetic zone with a trimodal approach: Soft tissue alterations and its relation to gingival biotype[J]. Clin Oral Implants Res, 2013, 24(10):1094-1100. doi: 10.1111/clr.2013.24.issue-10
[27]	裴润生, 陈学军, 程玉叶, 等. 牙龈生物型对上前牙种植修复美学区牙龈诱导效果的影响[J]. 南通大学学报(医学版), 2019, 39(5):356-358.
[28]	Gharpure AS, Bhatavadekar NB. Current evidence on the socket-shield technique: A systematic review[J]. J Oral Implantol, 2017, 43(5):395-403. doi: 10.1563/aaid-joi-D-17-00118 pmid: 28604262
[29]	Blaschke C, Schwass DR. The socket-shield technique: A critical literature review[J]. Int J Implant Dent, 2020, 6(1):52. doi: 10.1186/s40729-020-00246-2 pmid: 32893327
[30]	Bäumer D, Zuhr O, Rebele S, et al. Socket shield technique for immediate implant placement-clinical, radiographic and volumetric data after 5 years[J]. Clin Oral Implants Res, 2017, 28(11):1450-1458. doi: 10.1111/clr.2017.28.issue-11
[31]	Dugan DJ, Getz JB, Epker BN. Root banking to preserve alveolar bone: A review and clinical recommendation[J]. J Am Dent Assoc, 1981, 103(5):737-743. pmid: 7028840
[32]	Lang NP, Löe H. The relationship between the width of keratinized gingiva and gingival health[J]. J Periodontol, 1972, 43(10):623-627. doi: 10.1902/jop.1972.43.10.623 pmid: 4507712
[33]	Tan Z, Kang J, Liu WJ, et al. The effect of the heights and thicknesses of the remaining root segments on buccal bone resorption in the socket-shield technique: An experimental study in dogs[J]. Clin Implant Dent Relat Res, 2018, 20(3):352-359. doi: 10.1111/cid.2018.20.issue-3
[34]	Calvo-Guirado JL, Troiano M, López-López PJ, et al. Different configuration of socket shield technique in peri-implant bone preservation: An experimental study in dog mandible[J]. Ann Anat Anat Anzeiger, 2016, 208: 109-115.

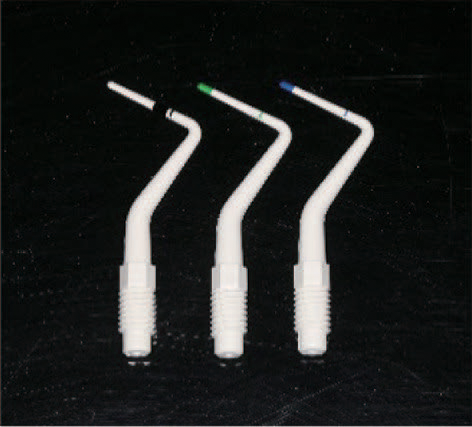

牙龈生物型	白色	绿色	蓝色
薄	可见	可见	可见
中等	不可见	可见	可见
厚	不可见	不可见	可见
很厚	不可见	不可见	不可见

组别	牙龈生物型		种植体直径
组别	厚	薄	3.5 mm	4.3 mm
IIP(n=15)	6(40.0)	9(60.0)	8(53.3)	7(46.7)
SST(n=15)	4(26.7)	11(73.3)	6(40.0)	9(60.0)
P	0.139		0.715

分组	唇侧轮廓突度变化/mm			唇侧龈边缘变化/mm			PES
分组	厚	薄	合计	厚	薄	合计	厚	薄	合计
IIP	-0.36±0.13	-0.58±0.17	-0.49±0.18	-0.63±0.16	-0.82±0.23	-0.76±0.22	11.50±0.50	9.78±0.92	10.47±1.15
SST	-0.22±0.21	-0.20±0.19	-0.21±0.18	-0.45±0.17	-0.20±0.19	-0.41±0.12	11.25±1.47	12.01±0.85	11.87±0.81
P	0.238	<0.001	<0.001	0.142	<0.001	<0.001	0.765	<0.001	0.002
