下颌第一前磨牙的形态特征与根管系统解剖的相关性分析

doi:10.13591/j.cnki.kqyx.2023.07.008

摘要/Abstract

摘要：

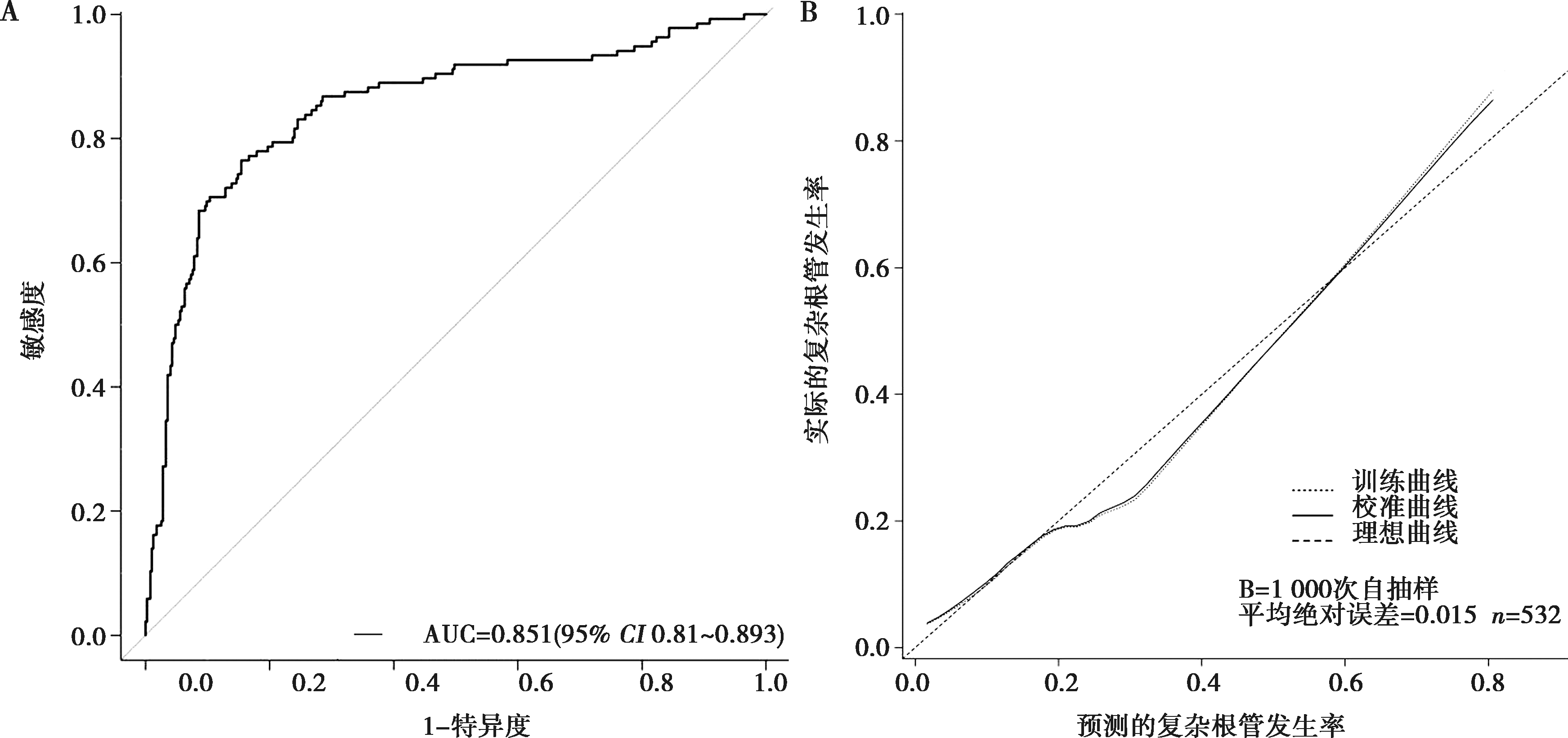

目的研究下颌第一前磨牙在全景片(dental panoramic tomograms, DPTs)的形态特征与根管系统解剖的相关性,为临床诊疗提供参考。方法 266例种植患者拍摄全景片和锥形束CT(cone-beam computer tomography,CBCT),共计532例样本。利用CBCT根据Vertucci分类,识别根管数目和形态,Ⅰ型记为单根管,其余为复杂根管;在DPTs上测量外形长度,获取比值。分析形态特征与根管系统解剖的相关性。结果单根管与复杂根管在性别、根中1/2水平近远中径与最大近远中径比值、根管影像突然消失及消失的位置有统计学差异(P<0.05)。生成受试者工作特征(receiver operating characteristic,ROC)曲线,曲线下面积(area under curve, AUC)值为0.851,预测结果较好,诊断复杂根管的灵敏度0.765,特异度0.846。结论根管影像是否突然消失以及消失的位置、性别和根中1/2水平近远中径与最大近远中径的比值对于根管解剖复杂性判断具有实用意义。

关键词: 下颌第一前磨牙, 根管形态, 锥形束CT, 全景片, 牙齿测量

Abstract:

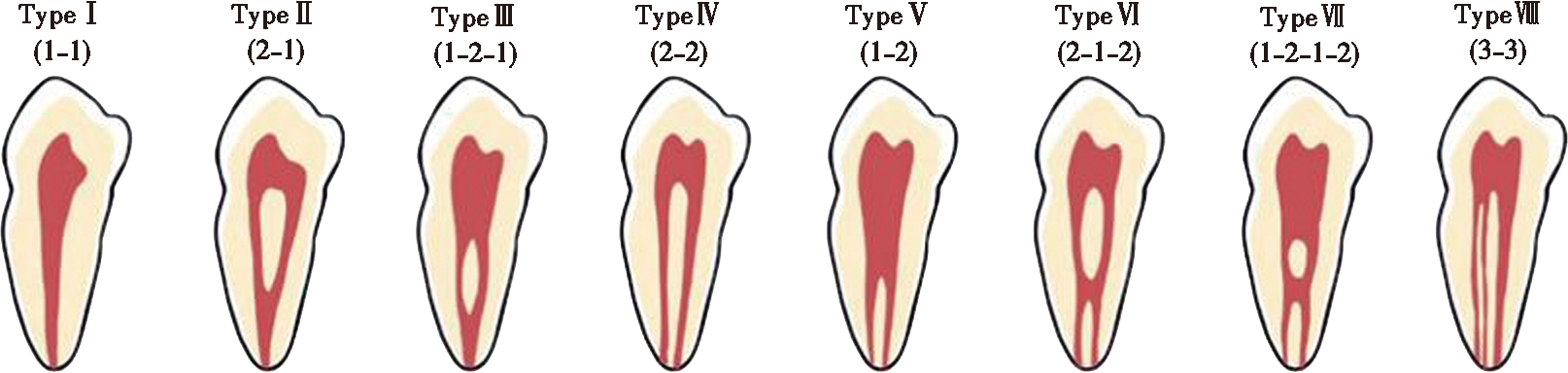

Objective To study the correlation between morphological features and the anatomy of the root canal of the first mandibular premolars in dental panoramic tomograms (DPTs) in order to provide reference for clinical diagnosis and treatment. Methods DPTs and cone-beam CT (CBCT) of implant patients were selected and a total of 532 samples from 266 patients were included. CBCT was used to identify the number and morphology of root canals according to Vertucci classification, and type Ⅰ was recorded as a single canal, and the rest was a complex root canal. The length on DPTs was measured to obtain the ratio. And then the correlation of morphological features with root canal anatomy was analyzed. Results There were significant differences between single and complex root canals in gender, the ratio of 1/2 horizontal mesiodistal diameter in the root to maximum mesiodistal diameter, the sudden disappearance of root canal images and their location (P<0.05). The receiver operating characteristic (ROC) curve was generated with an AUC value of 0.851. The sensitivity for diagnosing complex canals was 0.765 and the specificity was 0.846. Conclusion Whether and where root canal images suddenly disappear, gender and the ratio of 1/2 horizontal mesiodistal diameter in the root to maximum mesiodistal diameter are of practical significance for determining the anatomical complexity of root canals.

Key words: mandibular first premolar, root canal morphology, cone-beam computer tomography, dental panoramic tomogram, tooth measurement

中图分类号:

R322.41

徐青清, 王宇萌, 李梦圆, 张悦蓉, 徐海, 江飞, 张光东. 下颌第一前磨牙的形态特征与根管系统解剖的相关性分析[J]. 口腔医学, 2023, 43(7): 625-632.

XU Qingqing, WANG Yumeng, LI Mengyuan, ZHANG Yuerong, XU Hai, JIANG Fei, ZHANG Guangdong. Correlation analysis of morphological features with root canal anatomy of mandibular first premolars[J]. Stomatology, 2023, 43(7): 625-632.

图/表 7

图1

图2

图3

图4

表1

单根管和复杂根管相关临床参数和影像参数的单因素分析表"

变量	分类项	总计(n=532)	单根管 (n=396)	复杂根管 (n=136)	统计量	P
牙位, n(%)	左	266(50.000)	192(48.485)	74(54.412)	1.422	0.233
	右	266(50.000)	204(51.515)	62(45.588)
性别, n(%)	女	256(48.120)	200(50.505)	56(41.176)	5.182	0.023^*
	男	276(51.880)	196(49.495)	80(58.824)
年龄, n(%)	16~25	130(24.436)	92(23.232)	38(27.941)	2.262	0.688
	26~35	118(22.180)	87(21.970)	31(22.794)
	36~45	106(19.925)	79(19.949)	27(19.853)
	46~55	94(17.669)	71(17.929)	23(16.912)
	>55	84(15.789)	67(16.919)	17(12.500)
根尖影像是否变化, n(%)	否	355(66.729)	325(82.071)	30(22.059)	164.22	<0.001^*
	是	177(33.271)	71(17.929)	106(77.941)
CMDD-1/3, M(Q1, Q3)		1.644(1.494,1.819)	1.633(1.491,1.815)	1.686(1.517,1.828)	-1.454	0.146
CMDD-1/2,M(Q1, Q3)		1.438(1.333,1.564)	1.421(1.325,1.545)	1.473(1.362,1.609)	-2.841	0.005^*
CMDD-2/3, M(Q1, Q3)		1.249(1.182,1.320)	1.244(1.178,1.310)	1.286(1.186,1.354)	-2.726	0.006^*
1/2-1/3,M(Q1, Q3)		1.138(1.089,1.199)	1.139(1.093,1.201)	1.134(1.080,1.190)	1.261	0.207
2/3-1/2,M(Q1, Q3)		1.143(1.103,1.201)	1.141(1.102,1.197)	1.149(1.104,1.207)	-0.632	0.528
2/3-1/3,M(Q1, Q3)		1.307(1.234,1.394)	1.309(1.237,1.396)	1.294(1.232,1.387)	0.971	0.332
RL/CL, M(Q1, Q3)		1.764(1.563,1.945)	1.771(1.563,1.952)	1.754(1.575,1.908)	0.643	0.521
CL/MMDD, $\bar{x}±s$		1.024±0.117	1.029±0.120	1.010±0.108	1.622	0.105
1/3-MMDD,M(Q1, Q3)		0.474(0.423,0.524)	0.481(0.423,0.528)	0.464(0.423,0.513)	1.615	0.106
1/2-MMDD,M(Q1, Q3)		0.542(0.485,0.597)	0.547(0.487,0.605)	0.514(0.480,0.573)	2.700	0.007^*
2/3-MMDD, M(Q1, Q3)		0.622(0.563,0.683)	0.628(0.566,0.687)	0.605(0.561,0.660)	2.604	0.009^*
CMDD/MMDD, M(Q1, Q3)		0.781(0.729,0.830)	0.785(0.729,0.838)	0.773(0.726,0.821)	1.458	0.145
DL/RL, M(Q1, Q3)		0.264(0.148,0.372)	0.235(0.101,0.316)	0.377(0.283,0.464)	-6.036	<0.001^*
MDD/BLD, M(Q1, Q3)		0.896(0.861,0.932)	0.896(0.863,0.931)	0.895(0.860,0.939)	0.104	0.918

表1

表2

图5

参考文献 30

[1]	Gulabivala K, Ng YL. Factors that affect the outcomes of root canal treatment and retreatment: A reframing of the principles[J]. Int Endod J, 2023, 56(Suppl 2):82-115. doi: 10.1111/iej.v56.s2
[2]	Cleghorn BM, Christie WH, Dong CCS. The root and root canal morphology of the human mandibular first premolar: A literature review[J]. J Endod, 2007, 33(5):509-516. doi: 10.1016/j.joen.2006.12.004
[3]	Shrestha R, Srii R, Shrestha D. Diversity of root canal morphology in mandibular first premolar[J]. Kathmandu Univ Med J (KUMJ), 2019, 17(67):223-228. pmid: 33305752
[4]	Slowey RR. Root canal anatomy. Road map to successful endodontics[J]. Dent Clin North Am, 1979, 23(4):555-573. pmid: 294389
[5]	Sierra-Cristancho A, González-Osuna L, Balanta-Melo J, et al. A micro-CT analysis of radicular dentine thickness in mandibular first premolars presenting C-shaped root canals: Identification of potential danger zones[J]. Int Endod J, 2022, 55(6):672-684. doi: 10.1111/iej.v55.6
[6]	Vertucci FJ. Root canal morphology of mandibular premolars[J]. J Am Dent Assoc, 1978, 97(1):47-50. doi: 10.14219/jada.archive.1978.0443 pmid: 277575
[7]	Felsypremila G, Vinothkumar TS, Kandaswamy D. Anatomic symmetry of root and root canal morphology of posterior teeth in Indian subpopulation using cone beam computed tomography: A retrospective study[J]. Eur J Dent, 2015, 9(4):500-507. doi: 10.4103/1305-7456.172623 pmid: 26929687
[8]	Nouroloyouni A, Lotfi M, Milani AS, et al. Endodontic management of a two-rooted mandibular first premolar with five root canals with cone-beam computed tomography: A case report[J]. J Dent (Shiraz), 2021, 22(3):225-228.
[9]	Deman P, Atwal P, Duzenli C, et al. Dose measurements for dental cone-beam CT: A comparison with MSCT and panoramic imaging[J]. Phys Med Biol, 2014, 59(12):3201-3222. doi: 10.1088/0031-9155/59/12/3201 pmid: 24862349
[10]	Special Committee to Revise the Joint AAE/AAOMR Position Statement on use of CBCT in Endodontics. AAE and AAOMR joint position statement: Use of cone beam computed tomography in endodontics 2015 update[J]. Oral Surg Oral Med Oral Pathol Oral Radiol, 2015, 120(4):508-512. doi: 10.1016/j.oooo.2015.07.033
[11]	Yoshioka T, Villegas JC, Kobayashi C, et al. Radiographic evaluation of root canal multiplicity in mandibular first premolars[J]. J Endod, 2004, 30(2):73-74. doi: 10.1097/00004770-200402000-00002
[12]	Robinson S, Czerny C, Gahleitner A, et al. Dental CT evaluation of mandibular first premolar root configurations and canal variations[J]. Oral Surg Oral Med Oral Pathol Oral Radiol Endodontology, 2002, 93(3):328-332. doi: 10.1067/moe.2002.120055
[13]	皮昕, 王美青, 何三纲, 等. 口腔解剖生理学[M]. 7版. 北京: 人民卫生出版社, 2013:21-28, 56-62.
[14]	王惠芸. 我国人牙的测量和统计[J]. 中华口腔科杂志, 1959, 7(3):149-155.
[15]	Aljuailan R. Root and root canal morphology of permanent mandibular premolars in Saudi Arabian population: A literature review[J]. Saudi Endod J, 2023, 13:1-8.
[16]	Shimada Y, Kojima I, Nishioka T, et al. Root canal narrowing patterns of mandibular first premolars on panoramic radiographs according to the number of root canals diagnosed on cone beam computed tomographic images[J]. Odontology, 2023, 111(1):172-177. doi: 10.1007/s10266-022-00713-9
[17]	Wolf TG, Kim P, Campus G, et al. 3-dimensional analysis and systematic review of root canal morphology and physiological foramen geometry of 109 mandibular first premolars by micro-computed tomography in a mixed Swiss-German population[J]. J Endod, 2020, 46(6):801-809. doi: S0099-2399(20)30151-5 pmid: 32303349
[18]	刘晓静. 下颌第一前磨牙根管及根面沟解剖的影像学分析[J]. 临床医学研究与实践, 2019, 4(33):96-98.
[19]	孙楚文, 刘宇, 杨一鸣, 等. 多根管下颌第一前磨牙根管形态的显微CT分析[J]. 上海口腔医学, 2018, 27(1):6-10.
[20]	Wu D, Hu DQ, Xin BC, et al. Root canal morphology of maxillary and mandibular first premolars analyzed using cone-beam computed tomography in a Shandong Chinese population[J]. Medicine, 2020, 99(20):e20116. doi: 10.1097/MD.0000000000020116
[21]	张亚南, 孙克勤. 基于锥形束CT检查重建图像观察人下颌第一前磨牙根管系统解剖形态[J]. 山东医药, 2022, 62(9):27-31.
[22]	Lingam AS, Koppolu P, Abdulsalam R, et al. Assessment of common errors and subjective quality of digital panoramic radiographs in dental institution, Riyadh[J]. Ann Afr Med, 2023, 22(1):49-54. doi: 10.4103/aam.aam_213_21 pmid: 36695222
[23]	Stember JN, Moonis G, Silva C. Panoramic dental reconstruction for faster detection of dental pathology on medical non-dental CT scans: A proof of concept from CT neck soft tissue[J]. J Digit Imaging, 2021, 34(4):959-966. doi: 10.1007/s10278-021-00481-y pmid: 34258670
[24]	Moze G, Seehra J, Fanshawe T, et al. In vitro comparison of contemporary radiographic imaging techniques for measurement of tooth length: Reliability and radiation dose[J]. J Orthod, 2013, 40(3):225-233. doi: 10.1179/1465313313Y.0000000049
[25]	Flores-Mir C, Rosenblatt MR, Major PW, et al. Measurement accuracy and reliability of tooth length on conventional and CBCT reconstructed panoramic radiographs[J]. Dent Press J Orthod, 2014, 19(5):45-53. doi: 10.1590/2176-9451.19.5.045-053.oar
[26]	赵娜, 陈鑫, 周广超, 等. 锥形束CT和数字化牙片测量牙齿长度的准确性研究[J]. 口腔医学, 2019, 39(11):1038-1041.
[27]	Yassaei S, Ezoddini-Ardakani F, Ostovar N. Predicting the actual length of premolar teeth on the basis of panoramic radiology[J]. Indian J Dent Res, 2010, 21(4):468-473. doi: 10.4103/0970-9290.74207
[28]	Raoof M, Haghani J, Ebrahimi M. Evaluation of horizontal magnification on panoramic images[J]. Indian J Dent Res, 2013, 24(3):294-297. doi: 10.4103/0970-9290.117989
[29]	Nikneshan S, Sharafi M, Emadi N. Evaluation of the accuracy of linear and angular measurements on panoramic radiographs taken at different positions[J]. Imaging Sci Dent, 2013, 43(3):191-196. doi: 10.5624/isd.2013.43.3.191 pmid: 24083213
[30]	Kottoor J, Albuquerque D, Velmurugan N, et al. Root anatomy and root canal configuration of human permanent mandibular premolars: A systematic review[J]. Anat Res Int, 2013, 2013:254250.

参数	B	SE	Z	P	Odds Ratio	Lower	Upper
DL/RL	3.334	0.89	3.745	0.000^*	28.057	5.024	166.172
1/2-MMDD	-4.370	1.518	-2.878	0.004^*	0.013	0.001	0.235
根尖影像是否变化:是	2.302	0.276	8.339	0.000^*	9.998	5.888	17.425
性别:男	0.579	0.254	2.276	0.023^*	1.785	1.089	2.958
常量	0.837	1.361	0.615	0.538	2.310	0.162	34.120
