壁厚设计对三维打印树脂牙列模型精度的影响

doi:10.13591/j.cnki.kqyx.2025.07.004

口腔医学 ›› 2025, Vol. 45 ›› Issue (7): 502-505.doi: 10.13591/j.cnki.kqyx.2025.07.004

壁厚设计对三维打印树脂牙列模型精度的影响

赵艳芳¹, 张春宝², 刘欢³, 李恺⁴, 辛海涛³, 胡家欢², 吴玉禄²()

1 北京大学第三医院口腔科,北京(100191)
2 口颌系统重建与再生全国重点实验室,国家口腔疾病临床医学研究中心,陕西省口腔医学重点实验室,空军军医大学第三附属医院口腔修复工艺科,陕西西安(710032)
3 空军军医大学第三附属医院口腔修复科,陕西西安(710032)
4 空军军医大学空军第九八六医院口腔科,陕西西安(710054)

收稿日期:2024-08-20 出版日期:2025-07-28 发布日期:2025-07-24
通讯作者: 吴玉禄 E-mail:xiufu2004@126.com
基金资助:
国家口腔临床医学中心课题(LCB202217);空军军医大学第三附属医院新技术重点项目(LX2021-202);空军军医大学军事医学提升项目(2020JSTS24)

Accuracy of 3D printed models created by different designs of wall thickness

ZHAO Yanfang¹, ZHANG Chunbao², LIU Huan³, LI Kai⁴, XIN Haitao³, HU Jiahuan², WU Yulu²()

Department of Stomatology, Third Hospital of Peking University, Beijing 100191, China

Received:2024-08-20 Online:2025-07-28 Published:2025-07-24

摘要/Abstract

摘要：

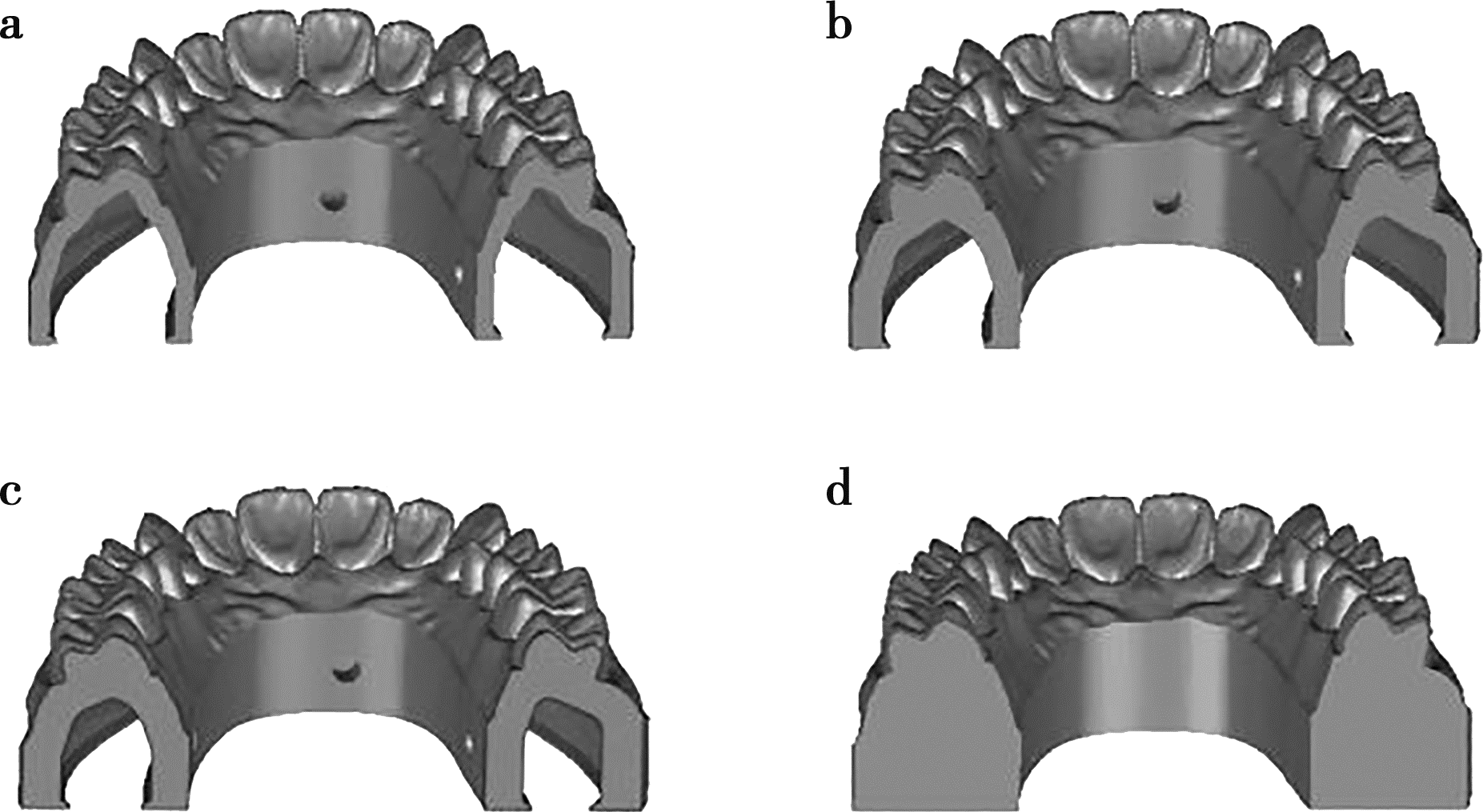

目的研究不同壁厚设计对三维打印树脂牙列模型精度(正确度和精密度)的影响。方法将上颌标准石膏牙列模型仓扫数据导入Exocad软件中,设计4种结构的打印模型,分别为壁厚2、3、4 mm的马蹄形空心模型和马蹄形实心模型,每组打印6个牙列模型。打印第1天和第7天对其进行扫描,扫描文件与相应模型设计文件导入Geomagic软件中进行偏差分析,获得其精度的均方根值(root mean square,RMS)进行统计学分析。结果 4组牙列模型打印第1天的正确度范围为(34.63±4.17)~(45.26±6.50)μm,差异无统计学意义。精密度范围(30.25±10.18)~(47.65±14.77)μm,实心组精密度低于其他3组(P<0.05)。4组模型打印第7天的正确度范围为(49.00±9.11)~(69.25±9.70)μm,壁厚2 mm组正确度低于实心组与壁厚4 mm组(P<0.05)。结论 4组模型的精度均在临床可接受范围。模型打印第1天实心组精密度最差,打印第7天壁厚2 mm空心组的正确度较差。

关键词: 壁厚, 三维打印, 树脂牙列模型, 正确度, 精密度

Abstract:

Objective To study the effect of wall thickness on the accuracy (trueness and precision) of 3D printed models. Methods The 3D scanning data of the standard gypsum dental arch model was imported into Exocad software. And four sets of models were designed, including horseshoe shaped solid model and horseshoe shaped hollow models with different wall thicknesses (2 mm, 3 mm, 4 mm). On the first and seventh day after printing, the 3D scanning data of resin models were imported into Geomagic software. Deviation analysis were performed on 3D printed models for the root mean square (root mean square, RMS). Results The trueness range of the four groups of printed models on the first day was (34.63±4.17)μm to (45.26±6.50)μm, there was no statistical difference. The precision range was (30.25±10.18)μm to (47.65±14.77)μm, and the precision of the solid group was lower than the other three groups (P<0.05). The trueness range of the four groups of printing models on the 7th day was (49.00±9.11)μm to (69.25±9.70)μm. The trueness of the 2 mm wall thickness group was lower than that of the solid group and the 4 mm wall thickness group (P<0.05). Conclusion The accuracy of printing models with different wall thicknesses was within the clinical acceptance range. There was no statistically significant difference in the trueness values of the four groups of printing models on the first day. The precision value of the solid group was the lowest. On the 7th day, the trueness of the wall thickness of 2 mm group was lower than that of the solid group and the 4 mm wall thickness group.

Key words: wall thickness, 3D printing, resin dental model, trueness, precision

中图分类号:

R783.2

赵艳芳, 张春宝, 刘欢, 李恺, 辛海涛, 胡家欢, 吴玉禄. 壁厚设计对三维打印树脂牙列模型精度的影响[J]. 口腔医学, 2025, 45(7): 502-505.

ZHAO Yanfang, ZHANG Chunbao, LIU Huan, LI Kai, XIN Haitao, HU Jiahuan, WU Yulu. Accuracy of 3D printed models created by different designs of wall thickness[J]. Stomatology, 2025, 45(7): 502-505.

图/表 3

参考文献 26

[1]	Zhang ZC, Li PL, Chu FT, et al. Influence of the three-dimensional printing technique and printing layer thickness on model accuracy[J]. J Orofac Orthop, 2019, 80(4): 194-204.
[2]	Unkovskiy A, Bui PH, Schille C, et al. Objects build orientation, positioning, and curing influence dimensional accuracy and flexural properties of stereolithographically printed resin[J]. Dent Mater, 2018, 34(12): e324-e333.
[3]	Rungrojwittayakul O, Kan JY, Shiozaki K, et al. Accuracy of 3D printed models created by two technologies of printers with different designs of model base[J]. J Prosthodont, 2020, 29(2): 124-128. doi: 10.1111/jopr.13107 pmid: 31498957
[4]	Jin SJ, Kim DY, Kim JH, et al. Accuracy of dental replica models using photopolymer materials in additive manufacturing:Three-dimensional evaluation[J]. J Prosthodont, 2019, 28(2): e557-e562.
[5]	Ellakany P, Al-Harbi F, El Tantawi M, et al. Evaluation of the accuracy of digital and 3D-printed casts compared with conventional stone casts[J]. J Prosthet Dent, 2022, 127(3): 438-444.
[6]	Shin SH, Lim JH, Kang YJ, et al. Evaluation of the 3D printing accuracy of a dental model according to its internal structure and cross-arch plate design: An study[J]. Materials, 2020, 13(23): 5433.
[7]	Chen YM, Li HF, Zhai ZH, et al. Impact of internal design on the accuracy of 3-dimensionally printed casts fabricated by stereolithography and digital light processing technology[J]. J Prosthet Dent, 2023, 130(3): 381.e1-381381.e7.
[8]	Revilla-León M, Piedra-Cascón W, Aragoneses R, et al. Influence of base design on the manufacturing accuracy of vat-polymerized diagnostic casts: An study[J]. J Prosthet Dent, 2023, 129(1): 166-173.
[9]	Revilla-León M, Piedra-Cascón W, Methani MM, et al. Influence of the base design on the accuracy of additive manufactured casts measured using a coordinate measuring machine[J]. J Prosthodont Res, 2022, 66(1): 68-74.
[10]	奚祺, 陈晞, 展欣, 等. 高压蒸汽灭菌次数对数字化口内扫描系统扫描精度的影响[J]. 中华口腔医学杂志, 2021, 56(5): 474-478.
[11]	You SM, You SG, Kang SY, et al. Evaluation of the accuracy(trueness and precision)of a maxillary trial denture according to the layer thickness: An study[J]. J Prosthet Dent, 2021, 125(1): 139-145.
[12]	Mangano FG, Cianci D, Pranno N, et al. Trueness, precision, time-efficiency and cost analysis of chairside additive and subtractive versus lab-based workflows for manufacturing single crowns: A study[J]. J Dent, 2024, 141: 104792.
[13]	Németh A, Vitai V, Czumbel ML, et al. Clear guidance to select the most accurate technologies for 3D printing dental models: A network meta-analysis[J]. J Dent, 2023, 134: 104532.
[14]	Etemad-Shahidi Y, Qallandar OB, Evenden J, et al. Accuracy of 3-dimensionally printed full-arch dental models: A systematic review[J]. J Clin Med, 2020, 9(10): 3357.
[15]	Emir F, Ayyildiz S. Accuracy evaluation of complete-arch models manufactured by three different 3D printing technologies: A three-dimensional analysis[J]. J Prosthodont Res, 2021, 65(3): 365-370. doi: 10.2186/jpr.JPOR_2019_579 pmid: 33177305
[16]	Giudice AL, Ronsivalle V, Rustico L, et al. Evaluation of the accuracy of orthodontic models prototyped with entry-level LCD-based 3D printers: A study using surface-based superimposition and deviation analysis[J]. Clin Oral Investig, 2022, 26(1): 303-312.
[17]	赵艳芳, 辛海涛, 张志媛, 等. 结构设计对三维打印上颌树脂模型精度的影响[J]. 口腔医学研究, 2023, 39(11): 995-999. doi: 10.13701/j.cnki.kqyxyj.2023.11.011
[18]	Papaspyridakos P, Chen YW, Alshawaf B, et al. Digital workflow: Accuracy of 3D printed casts generated from complete-arch digital implant scans[J]. J Prosthet Dent, 2020, 124(5): 589-593. doi: 10.1016/j.prosdent.2019.10.029 pmid: 31959396
[19]	Camardella LT, de Vasconcellos Vilella O, Breuning H. Accuracy of printed dental models made with 2 prototype technologies and different designs of model bases[J]. Am J Orthod Dentofacial Orthop, 2017, 151(6): 1178-1187.
[20]	赵艳芳, 辛海涛, 李恺, 等. 结构设计对三维打印树脂牙列模型尺寸稳定性的影响[J]. 口腔医学, 2024, 44(2): 110-114.
[21]	Wu D, Zhao ZA, Zhang Q, et al. Mechanics of shape distortion of DLP 3D printed structures during UV post-curing[J]. Soft Matter, 2019, 15(30): 6151-6159. doi: 10.1039/c9sm00725c pmid: 31317163
[22]	宋世威, 李风兰. 支撑结构位置对3D打印全口义齿基托适合性的影响[J]. 实用口腔医学杂志, 2023, 39(5): 584-589.
[23]	Wang WN, Yu H, Liu YF, et al. Trueness analysis of zirconia crowns fabricated with 3-dimensional printing[J]. J Prosthet Dent, 2019, 121(2): 285-291. doi: S0022-3913(18)30350-0 pmid: 30017167
[24]	Ling L, Taremi N, Malyala R. A novel low-shrinkage resin for 3D printing[J]. J Dent, 2022, 118: 103957.
[25]	Dias Resende CC, QuirinoBarbosa TA, Moura GF, et al. Cost and effectiveness of 3-dimensionally printed model using three different printing layer parameters and two resins[J]. J Prosthet Dent, 2023, 129(2): 350-353.
[26]	Ko J, Bloomstein RD, Briss D, et al. Effect of build angle and layer height on the accuracy of 3-dimensional printed dental models[J]. Am J Orthod Dentofacial Orthop, 2021, 160(3): 451-458.e2.

组别	实心组	壁厚2 mm空心组	壁厚3 mm空心组	壁厚4 mm空心组
第1天	45.26±6.50^a	44.80±9.00^a	42.98±6.62^a	34.63±4.17^a
第7天	50.23±7.23^a	69.25±9.70^b	60.23±9.63^ab	49.00±9.11^a
