条形自体块状骨联合GBR在水平骨增量中的应用研究

doi:10.13591/j.cnki.kqyx.2023.05.011

Abstract

Abstract:

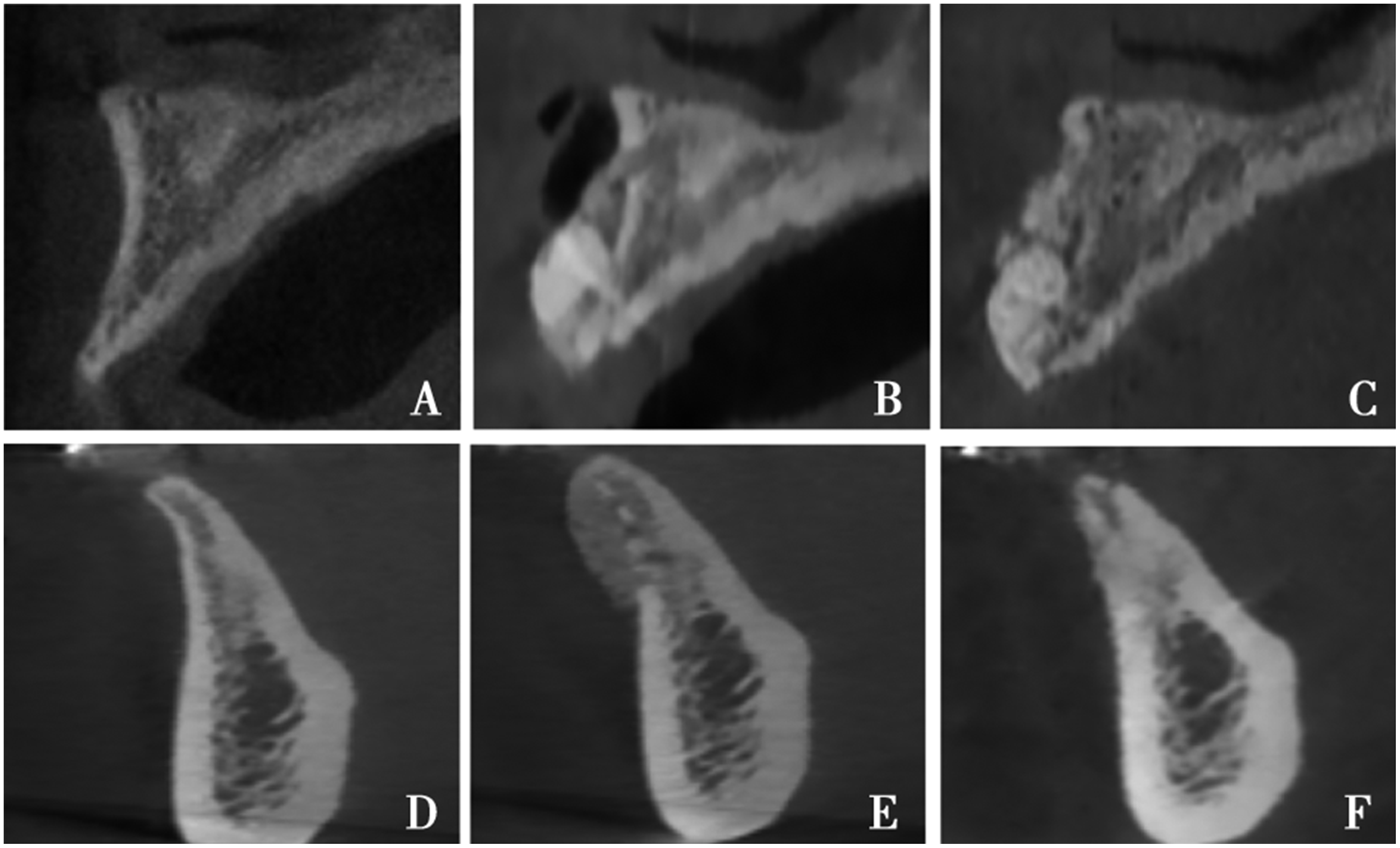

Objective To compare the clinical effects of strip autogenous bone block combined with GBR (guided bone regeneration) and GBR alone in horizontal bone augmentation. Methods Twenty patients who needed delayed implantation of horizontal bone augmentation were selected and divided into two groups. The study group(group A)was strip autogenous bone block combined with GBR, and the control group(group B) was GBR alone. Before operation(T₀), immediately after operation(T₁) and 6 months after operation(T₂), the width of different sections of alveolar ridge in the bone graft area was measured by cone beam computed tomography(CBCT). The graft success rate, bone increment, bone resorption rate and The VAS pain scale scores of two groups were evaluated. Results Six months after bone grafting, the success rate of two groups was 100%,andthe bone width in both groups was significantly increased. The increment of group A at 1 mm and 3 mm below the crest was more than that of group B, with a significant difference(P<0.05), while there was no significant difference at 6 mm and 9 mm below the crest(P>0.05). The absorption rate of group A was lower than that of group B at 1 mm, 3 mm and 6 mm below the crest, with a significant difference(P<0.05), while the bone absorption rate of two groups at 9 mm below the crest was similar, with no significant difference(P>0.05).There was no significant difference in pain scale scores between two groups(P>0.05). Conclusion For severe horizontal bone defect, application of strip autogenous bone block combined with GBR has a lower absorption rate at the crest and middle of alveolar ridge, and can get a better crest contour than that of GBR alone.

Key words: autologousbone block graft, horizontal bone augmentation, guided bone regeneration

CLC Number:

R782.13

HE Xiuquan,LI Yushan,SHUI Yuhao,LIU Kun. Research on the application of strip autologous bone block combined with GBR in horizontal bone augmentation[J]. Stomatology, 2023, 43(5): 451-455.

Figures/Tables 7

Tab.1

Fig.1

Fig.2

Fig.3

Fig.4

Tab.2

Fig.5

References 21

[1]	Aludden HC, Mordenfeld A, Hallman M, et al. Lateral ridge augmentation with Bio-Oss alone or Bio-Oss mixed with particulate autogenous bone graft:A systematic review[J]. Int J Oral MaxillofacSurg, 2017, 46(8):1030-1038.
[2]	Choi AH, Matinlinna J, Ben-Nissan B. Effects of micromovement on the changes in stress distribution of partially stabilized zirconia (PS-ZrO₂) dental implants and bridge during clenching:A three-dimensional finite element analysis[J]. Acta Odontol Scand, 2013, 71(1):72-81. doi: 10.3109/00016357.2011.654242
[3]	Elnayef B, Porta C, Suárez-López Del Amo F, et al. The fate of lateral ridge augmentation:A systematic review and meta-analysis[J]. Int J Oral Maxillofac Implants, 2018, 33(3):622-635. doi: 10.11607/jomi.6290 pmid: 29763500
[4]	Mertens C, Braun S, Krisam J, et al. The influence of wound closure on graft stability:An in vitro comparison of different bone grafting techniques for the treatment of one-wall horizontal bone defects[J]. Clin Implant Dent Relat Res, 2019, 21(2):284-291. doi: 10.1111/cid.2019.21.issue-2
[5]	孟兆理, 贾相斌, 周慧霞, 等. 可吸收胶原膜与颗粒状异种骨在下颌后牙区水平骨增量中的应用[J]. 口腔颌面外科杂志, 2021, 31(5):302-307.
[6]	Lobb DC, DeGeorge BR Jr, Chhabra AB. Bone graft substitutes:Current concepts and future expectations[J]. J Hand Surg, 2019, 44(6):497-505.e2. doi: 10.1016/j.jhsa.2018.10.032
[7]	Nkenke E, Neukam FW. Autogenous bone harvesting and grafting in advanced jaw resorption:Morbidity, resorption and implant survival[J]. Eur J Oral Implantol, 2014, 7(Suppl 2):S203-S217.
[8]	Elgali I, Omar O, Dahlin C, et al. Guided bone regeneration:Materials and biological mechanisms revisited[J]. Eur J Oral Sci, 2017, 125(5):315-337. doi: 10.1111/eos.2017.125.issue-5
[9]	Jensen SS, Terheyden H. Bone augmentation procedures in localized defects in the alveolar ridge:Clinical results with different bone grafts and bone-substitute materials[J]. Int J Oral Maxillofac Implants, 2009, 24(Suppl):218-236.
[10]	Mir-Mari J, Benic GI, Valmaseda-Castellón E, et al. Influence of wound closure on the volume stability of particulate and non-particulate GBR materials:An in vitro cone-beam computed tomographic examination. Part Ⅱ[J]. Clin Oral Implants Res, 2017, 28(6):631-639. doi: 10.1111/clr.2017.28.issue-6
[11]	Benic GI, Eisner BM, Jung RE, et al. Hard tissue changes after guided bone regeneration of peri-implant defects comparing block versus particulate bone substitutes:6-month results of a randomized controlled clinical trial[J]. Clin Oral Implants Res, 2019, 30(10):1016-1026. doi: 10.1111/clr.v30.10
[12]	宋应亮, 赵文爽, 宋爽. 帐篷螺丝技术与常规GBR在水平骨增量的临床疗效对比[J]. 口腔医学, 2021, 41(2):103-109.
[13]	Elakkiya S, Ramesh AS, Prabhu K. Systematic analysis on the efficacy of bone enhancement methods used for success in dental implants[J]. J Indian ProsthodontSoc, 2017, 17(3):219-225.
[14]	Chappuis V, Cavusoglu Y, Buser D, et al. Lateral ridge augmentation using autogenous block grafts and guided bone regeneration:A 10-year prospective case series study[J]. Clin Implant Dent Relat Res, 2017, 19(1):85-96. doi: 10.1111/cid.2017.19.issue-1
[15]	Pereira RS, Pavelski MD, Griza GL, et al. Prospective evaluation of morbidity in patients who underwent autogenous bone-graft harvesting from the mandibular symphysis and retromolar regions[J]. Clin Implant Dent Relat Res, 2019, 21(4):753-757.
[16]	Gorgis R, Qazo L, Bruun NH, et al. Lateral alveolar ridge augmentation with an autogenous bone block graft alone with or without barrier membrane coverage:A systematic review and meta-analysis[J]. J Oral Maxillofac Res, 2021, 12(3):e1.
[17]	Chiapasco M, Zaniboni M, Boisco M. Augmentation procedures for the rehabilitation of deficient edentulous ridges with oral implants[J]. Clin Oral Implants Res, 2006, 17(Suppl 2):136-159. doi: 10.1111/clr.2006.17.issue-s2
[18]	崔永霞, 樊俊芳, 李佳, 等. 自体下颌骨块游离移植与Bio-Oss、Bio-Gide联合应用在上颌前牙区骨量不足种植术中的临床研究[J]. 宁夏医学杂志, 2018, 40(1):45-47.
[19]	史远, 杨国利. 外斜线取骨自体骨移植及其他牙槽嵴骨增量法的研究进展[J]. 口腔医学, 2021, 41(6):557-560, 571.
[20]	Yates DM, Brockhoff HC II, Finn R, et al. Comparison of intraoral harvest sites for corticocancellous bone grafts[J]. J Oral Maxillofac Surg, 2013, 71(3):497-504. doi: 10.1016/j.joms.2012.10.014
[21]	Ataman-Duruel ET, Duruel O, Nares S, et al. Quantity and quality of intraoral autogenousblock graft donor sites with cone beam computed tomography[J]. Int J Oral Maxillofac Implants, 2020, 35(4):782-788. doi: 10.11607/jomi.8079 pmid: 32724932

分组	年龄/岁	性别		缺牙数		缺牙部位				距牙槽嵴顶不同距离各部位的术前骨宽度/mm
分组	年龄/岁	男	女	单牙	多牙	前牙	后牙	上颌	下颌	距离1 mm	距离3 mm	距离6 mm	距离9 mm
A组	36.3±13.1	5	5	0	10	8	2	7	3	2.99±0.62	3.73±0.96	4.65±1.67	6.02±1.77
B组	27.7±8.6	5	5	3	7	8	2	6	4	3.30±0.98	4.09±1.34	5.19±1.58	6.44±1.67
P	0.100	0.211						1.000		0.408	0.499	0.467	0.592

嵴顶下距离	分组	即刻骨增量/mm	P	最终骨增量/mm	P	骨吸收率	P
1 mm	A组	4.43±1.49	0.270	3.67±1.02	0.002^*	15.9%	0.000^*
1 mm	B组	3.75±1.16	0.270	2.06±0.94	0.002^*	47.1%	0.000^*
3 mm	A组	5.68±1.63	0.133	4.35±0.88	0.003^*	21.6%	0.006^*
3 mm	B组	4.54±1.61	0.133	2.58±1.41	0.003^*	48.0%	0.006^*
6 mm	A组	5.34±2.05	0.205	4.42±1.46	0.051	15.4%	0.017^*
6 mm	B组	4.26±1.59	0.205	3.02±1.53	0.051	32.2%	0.017^*
9 mm	A组	4.49±2.18	0.282	3.57±1.79	0.291	21.4%	0.901
9 mm	B组	3.53±1.67	0.282	2.78±1.44	0.291	22.3%	0.901
