下颌骨髁突骨折的三维形态学分析

doi:10.13591/j.cnki.kqyx.2024.04.004

Abstract

Abstract:

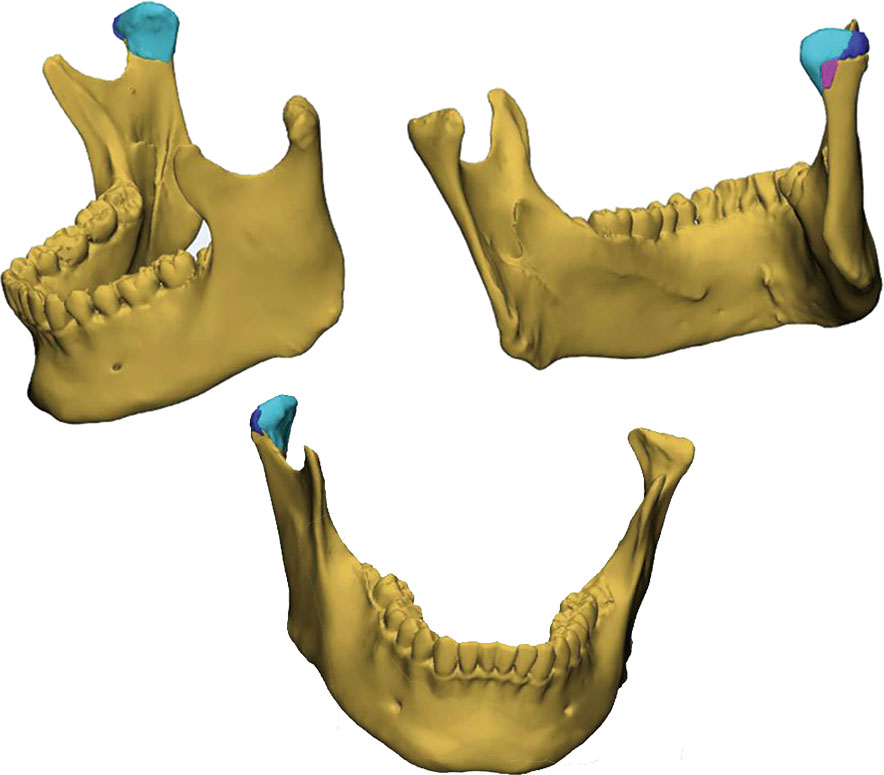

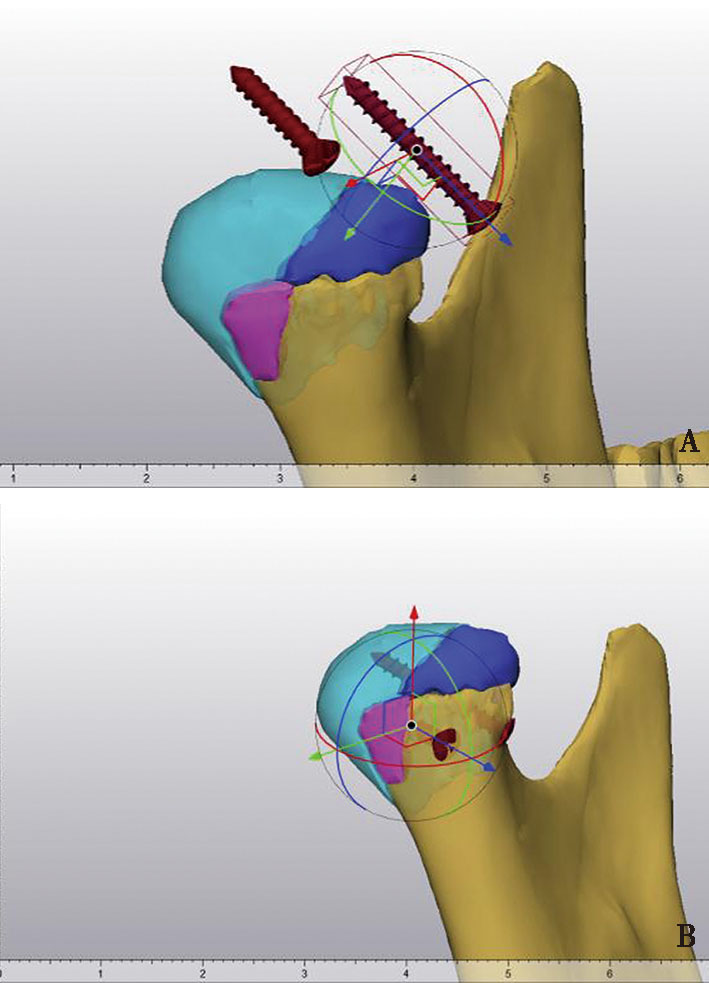

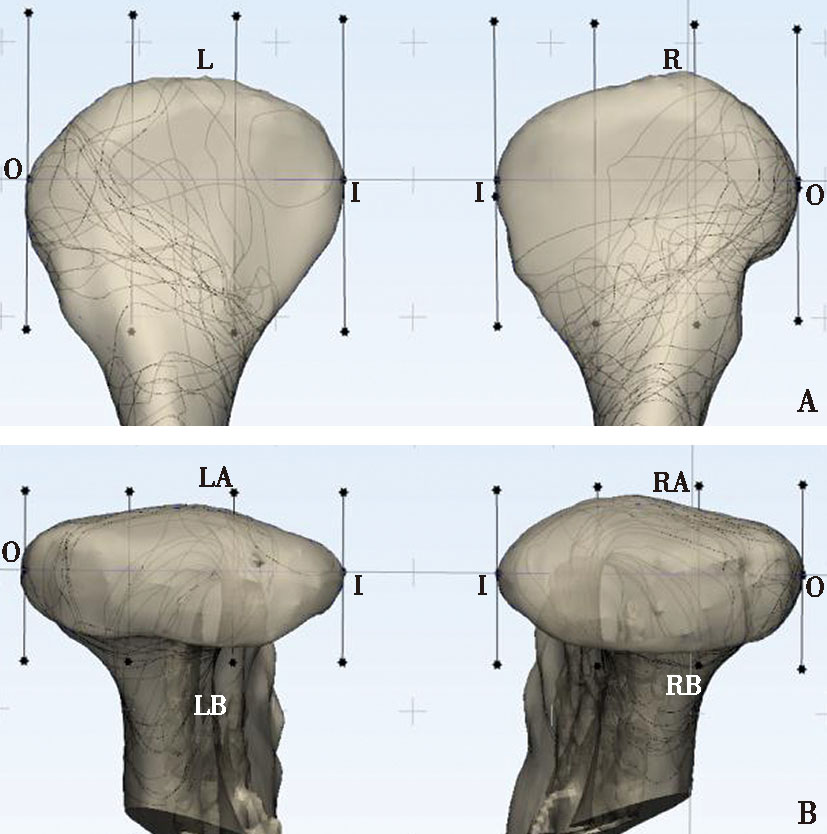

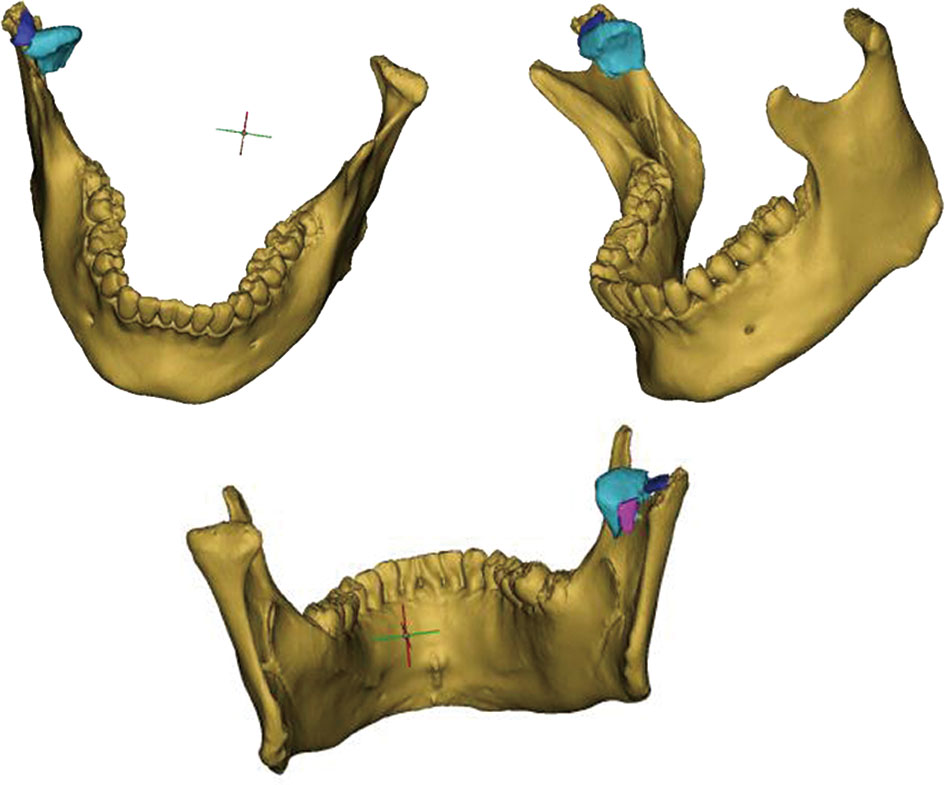

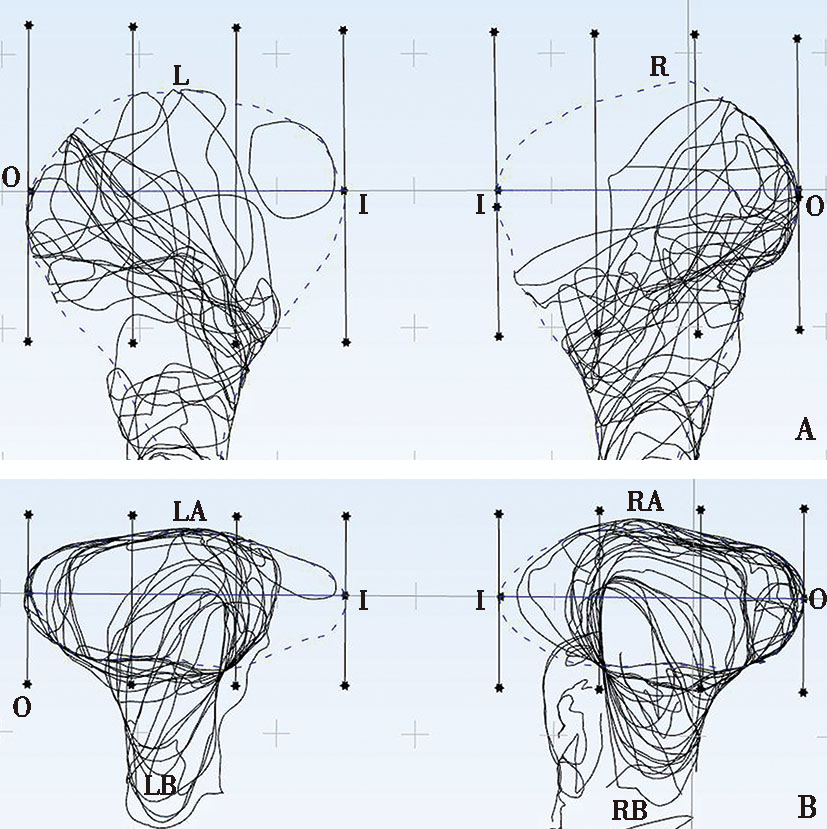

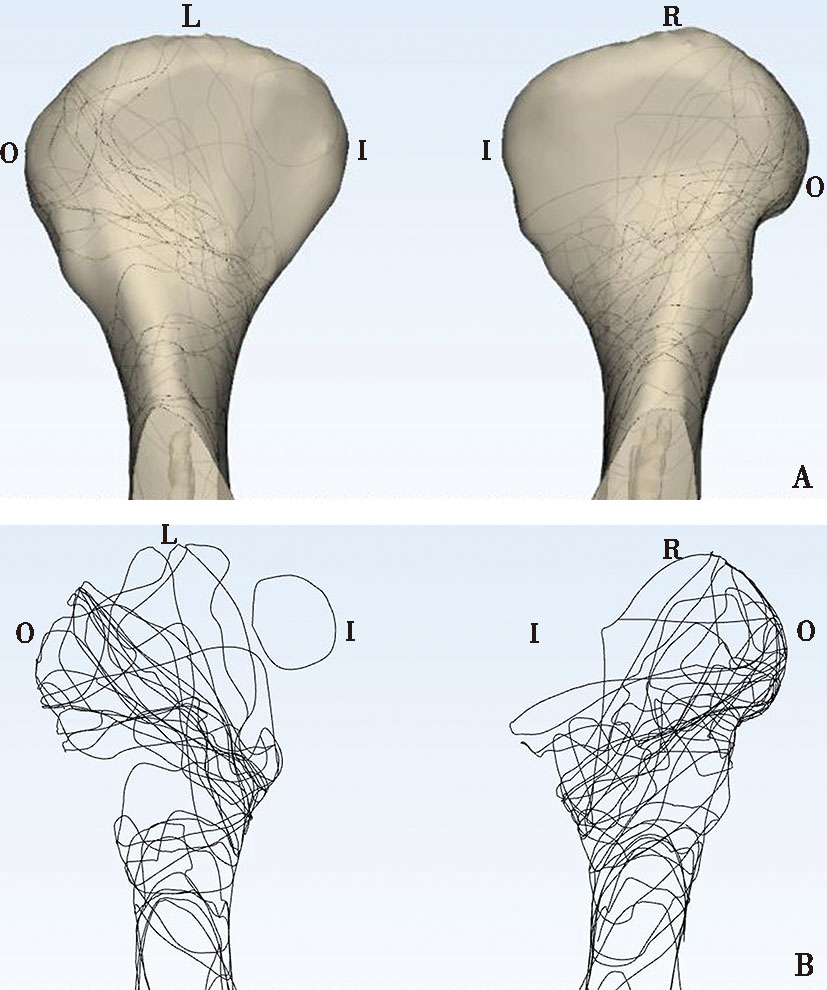

Objective Through three-dimensional morphological analysis of the distribution of three-dimensional fracture lines of mandibular condylar fractures, the distribution and alignment characteristics of condylar fractures were revealed, in order to provide re-ference for diagnosis and treatment and surgical plans in maxillofacial surgery. Methods The imaging data of 37 cases of mandibular condylar fractures undergoing spiral CT examination were selected for retrospective analysis. The spiral CT image data of the patients were imported into Mimics and 3-matic software to isolate, model and simulate the repositioning of the mandibular fracture block, and the fracture lines were copied on a healthy standard mandibular model to obtain the distribution map of the condylar fracture lines. Results The coronal condylar fracture had an oblique alignment, with no obvious fracture line in the superior interior and no obvious difference between the right and left lateral condylar fracture lines;the horizontal condylar fracture line had an external high and internal low alignment around the condylar neck, with a markedly reduced fracture line in the superior interior. Conclusion By analyzing the condylar fractures and using 3D Mapping technology, it was concluded that condylar fractures were mainly concentrated in the lateral aspect of the condyle accompanied by fracture fragments and detachment from the condylar process, which often required surgical threaded nail fixation. 3D Mapping technology could be used to provide preoperative virtual guidance on the angle, direction, and length of threaded nails, which could provide a direction to improve surgery accuracy.

Key words: mandible, condylar fracture, spiral CT, Mapping technology, three-dimensional morphology

CLC Number:

R782.4

WANG Yaqi, ZHU Chunhui, HU Xiaoyi, WANG Jizhou. Three-dimensional morphological analysis of the fracture body of the mandibular condyle[J]. Stomatology, 2024, 44(4): 255-260.

Figures/Tables 9

Fig.1

Fig.2

Fig.3

Fig.4

Tab.1

Fig.5

Tab.2

Tab.3

Fig.6

References 26

[1]	Mooney S, Gulati RD, Yusupov S, et al. Mandibular condylar fractures[J]. Facial Plast Surg Clin North Am, 2022, 30(1):85-98. doi: 10.1016/j.fsc.2021.08.007
[2]	Nayak SS, Arun S, Taranath Kamath A, et al. The influence of the mandibular chin angle on the occurrence of mandibular condylar fracture: A retrospective study[J]. Sci World J, 2021, 2021:2380840.
[3]	Shakya S, Zhang X, Liu L. Key points in surgical management of mandibular condylar fractures[J]. Chin J Traumatol, 2020, 23(2):63-70. doi: S1008-1275(19)30181-6 pmid: 31744656
[4]	Bielecki-Kowalski B, Kozakiewicz M. Clinico-anatomical classification of the processus condylaris mandibulae for traumatological purposes[J]. Ann Anat, 2021, 234:151616. doi: 10.1016/j.aanat.2020.151616
[5]	Bu LT, Chen Q, Huang K, et al. Evaluation of internal fixation techniques for condylar head fractures: A finite element analysis and comparison[J]. Oral Surg Oral Med Oral Pathol Oral Radiol, 2022, 133(5):e96-e104. doi: 10.1016/j.oooo.2021.08.028
[6]	Arya R, Sritharan R, Glover S, et al. Non-surgical management of non-condylar mandibular fractures[J]. Br J Oral Maxillofac Surg, 2022, 60(9):1224-1227. doi: 10.1016/j.bjoms.2022.07.014
[7]	Menon S, Kumar V, Archana S, et al. A retrospective study of condylar fracture management in a tertiary care hospital-a 10-year experience[J]. J Maxillofac Oral Surg, 2020, 19(3):380-386. doi: 10.1007/s12663-019-01257-2
[8]	Nie W, Gu F, Wang ZJ, et al. Preliminary application of three-dimension printing technology in surgical management of bicondylar tibial plateau fractures[J]. Injury, 2019, 50(2):476-483. doi: S0020-1383(18)30753-8 pmid: 30580928
[9]	King C, Shafi A, Burke E. Optimising the management of concurrent symphyseal/parasymphyseal and bilateral extracapsular condylar fractures using three-dimensional printing[J]. Oral Maxillofac Surg, 2020, 24(2):217-219. doi: 10.1007/s10006-019-00820-y pmid: 31814066
[10]	Kang HJ, Kim BS, Kim SM, et al. Can preoperative 3D printing change surgeon’s operative plan for distal Tibia fracture?[J]. Bio Med Res Int, 2019:1-7.
[11]	Su QH, Zhang Y, Liao SH, et al. 3D computed tomography mapping of thoracolumbar vertebrae fractures[J]. Med Sci Monit, 2019, 25:2802-2810. doi: 10.12659/MSM.915916
[12]	Xie XT, Zhan Y, Dong MJ, et al. Two and three-dimensional CT mapping of Hoffa fractures[J]. J Bone Joint Surg Am, 2017, 99(21):1866-1874. doi: 10.2106/JBJS.17.00473 pmid: 29088042
[13]	He DM, Yang C, Chen MJ, et al. Intracapsular condylar fracture of the mandible: Our classification and open treatment experience[J]. J Oral Maxillofac Surg, 2009, 67(8):1672-1679. doi: 10.1016/j.joms.2009.02.012
[14]	Thirunavukarasu AJ, Ferro A, Dubb SS, et al. Investigating the correlation between bone density and fracture frequency in the mandibular condyle with micro-computed tomography[J]. Br J Oral Maxillofac Surg, 2021, 59(3):380-383. doi: 10.1016/j.bjoms.2020.08.097 pmid: 33495045
[15]	Jeyaraj P. Splitting and splaying apart of the craniomaxillofacial skeleton by medially directed disruptive forces of unusual etiologies-A case series[J]. Ann Maxillofac Surg, 2021, 11(1):195-213. doi: 10.4103/ams.ams_275_20 pmid: 34522684
[16]	Yang RC, Cui MJ, Zhou HH, et al. Fracture fragment of the condyle determines the ramus height of the mandible in children with intracapsular condylar fractures treated conservatively[J]. Sci Rep, 2022, 12(1):19924. doi: 10.1038/s41598-022-24463-4
[17]	Tian SY, Liang SB, Wang ZZ, et al. Morphological characteristics of the posterior wall associated with complex acetabular fractures: A radiological study using 3D software and fracture mapping technique[J]. Bio Med Res Int, 2022:1-8.
[18]	DeKeyser GJ, Sripanich Y, O’Neill DC, et al. Mapping of posterior talar dome access through posteromedial versus posterola-teral approaches[J]. J Orthop Trauma, 2021, 35(12):e463-e469. doi: 10.1097/BOT.0000000000002113 pmid: 33724965
[19]	Zhou W, Rong QG, An JG, et al. Finite element analysis of two- and three-dimensional fixation in treating mandibular symphyseal fracture combined with bilateral condylar intracapsular fractures[J]. J Craniofac Surg, 2021, 32(7):2557-2561. doi: 10.1097/SCS.0000000000007601 pmid: 33710062
[20]	Zhang C, Li ZB, Yang RT. Digital design and application of 3D printed surgical guide for long screw fixation of condylar sagittal fracture[J]. J Craniofac Surg, 2021, 32(7):e632-e634. doi: 10.1097/SCS.0000000000007605 pmid: 33674507
[21]	Liokatis P, Tzortzinis G, Gerasimidis S, et al. Application of the lambda plate on condylar fractures: Finite element evaluation of the fixation rigidity for different fracture patterns and plate placements[J]. Injury, 2022, 53(4):1345-1352. doi: 10.1016/j.injury.2022.01.032 pmid: 35101256
[22]	Ben Achour A, Meißner H, Teicher U, et al. Biomechanical evaluation of mandibular condyle fracture osteosynthesis using the rhombic three-dimensional condylar fracture plate[J]. J Oral Maxillofac Surg, 2019, 77(9):1868.e1-1868.e15.
[23]	Wang WH, Deng JY, Zhu J, et al. Computer-assisted virtual technology in intracapsular condylar fracture with two resorbable long-screws[J]. Br J Oral Maxillofac Surg, 2013, 51(2):138-143. doi: 10.1016/j.bjoms.2012.04.005 pmid: 22546281
[24]	应凯, 王亮, 朱永武, 等. 虚拟手术结合导板辅助7例髁突颈部骨折复位固定的效果评价[J]. 上海口腔医学, 2023, 32(1):105-108.
[25]	Johner JP, Essig H, Neff A, et al. Volumetric evaluated bone resorption after open reduction and internal fixation of condylar head fractures of the mandible[J]. J Oral Maxillofac Surg, 2021, 79(9):1902-1913. doi: 10.1016/j.joms.2021.04.018
[26]	李豪培, 李金超, 李守宏. 下颌骨髁状突囊内骨折分类及手术治疗新进展[J]. 临床口腔医学杂志, 2020, 36(6):379-382.

性别	18~20岁	21~30岁	31~40岁	41~50岁	51~60岁	60岁以上
女	0	5	4	1	0	1
男	1	6	7	6	6	0

分部	左侧髁突骨折线分布			右侧髁突骨折线分布
分部	外部	中部	内部	外部	中部	内部
上部	13(35.13)	5(13.51)	0	9(24.32)	9(24.32)	1(2.70)
下部	16(43.24)	17(45.94)	14(37.83)	7(18.92)	12(32.43)	12(32.43)

分部	左侧髁突骨折线分布			右侧髁突骨折线分布
分部	外部	中部	内部	外部	中部	内部
上部	17(45.94)	12(32.43)	7(18.92)	13(35.13)	10(27.03)	3(8.10)
下部	18(48.64)	18(48.64)	12(32.43)	10(27.03)	13(35.13)	9(24.32)
