下颌切牙区种植相关影像学测量及分析研究

doi:10.13591/j.cnki.kqyx.2024.04.003

Abstract

Abstract:

Objective To investigate the mesiodistal space in the area of multi-consecutive mandibular incisors,using CBCT image data, in order to provide a theoretical basis for the restoration of missing mandibular incisors and dental implant surgery. Methods CBCT imaging data of 500 patients were selected. The mesiodistal space in the area of multi-consecutive mandibular incisors were measured and statistically analyzed, and the feasibility of different implant placement strategies was evaluated. Results The mesiodistal space between two mandibular central incisors was (10.72±1.10)mm, and the mesiodistal space between mandibular central and lateral incisors were (11.33±1.00)mm and (11.45±0.98)mm on the left and right sides, respectively. The mesiodistal space between three consecutive mandibular incisors were (15.69±1.25)mm and (15.79±1.26)mm on the left and right sides, respectively. The mesiodistal space between four consecutive mandibular incisors was (20.76±1.48)mm. There was a gender difference in the mesiodistal space between mandibular incisor positions, with males having slightly larger space than females. Conclusion The mesiodistal space between mandibular incisors is narrow. When two consecutive incisors are missing, only a few patients are available for two narrow diameter implants, while others have to choose cantilever restoration. When more than two mandibular incisors are missing, most patients are available for two narrow diameter implants, restoring with implant-supported fix partial bridges.

Key words: mandibular incisor, mesiodistal space, dental implant, CBCT

CLC Number:

R783.4

ZHAI Jiabin, WU Wenli, SHEN Ming, CHEN Yingying. Radiological measurement and analysis of mesiodistal space at mandibular incisor positions[J]. Stomatology, 2024, 44(4): 250-254.

Figures/Tables 4

Fig.1

Tab.1

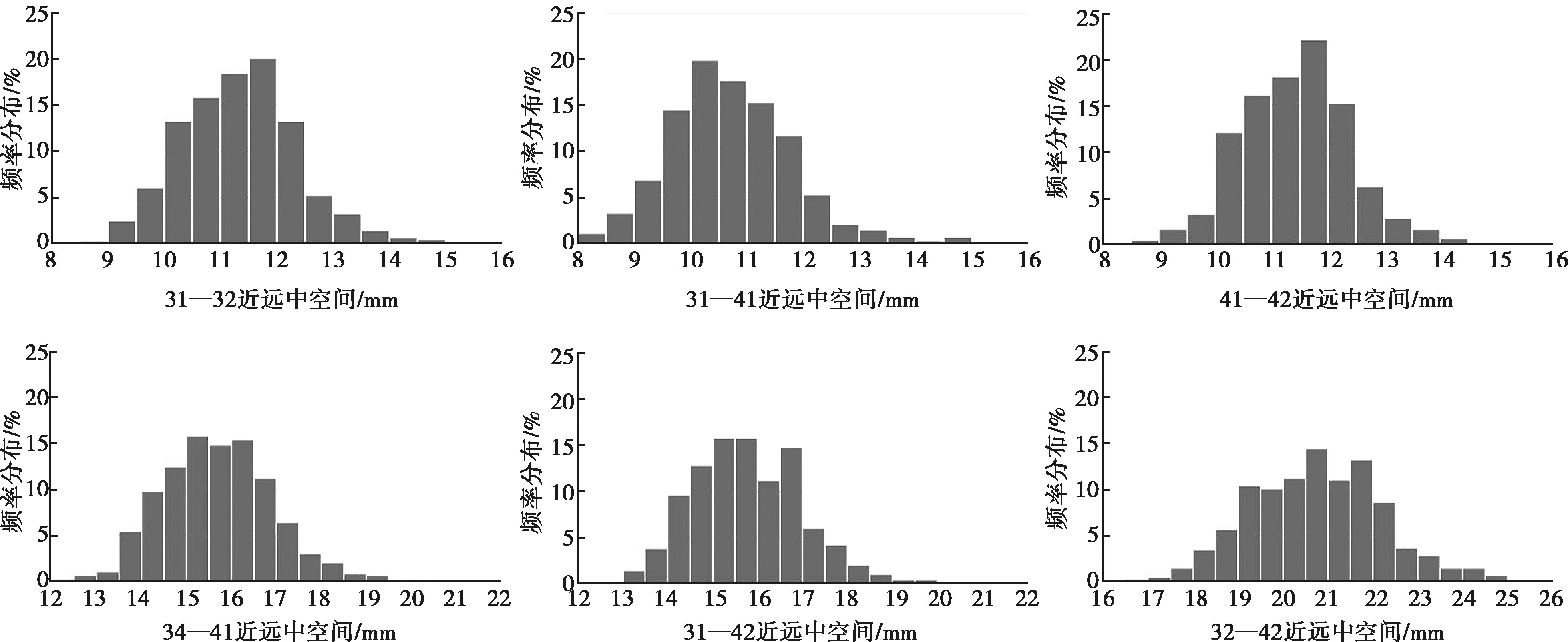

Fig.2

Tab.2

References 22

[1]	Buser D, Sennerby L, De Bruyn H. Modern implant dentistry based on osseointegration: 50 years of progress, current trends and open questions[J]. Periodontol 2000, 2017, 73(1):7-21. doi: 10.1111/prd.2017.73.issue-1
[2]	Duong HY, Roccuzzo A, Stähli A, et al. Oral health-related quality of life of patients rehabilitated with fixed and removable implant-supported dental prostheses[J]. Periodontol 2000, 2022, 88(1):201-237. doi: 10.1111/prd.v88.1
[3]	Pjetursson BE, Thoma D, Jung R, et al. A systematic review of the survival and complication rates of implant-supported fixed dental prostheses(FDPs)after a mean observation period of at least 5 years[J]. Clin Oral Implants Res, 2012, 23(Suppl 6):22-38.
[4]	Wilson JP, Johnson TM. Frequency of adequate mesiodistal space and faciolingual alveolar width for implant placement at anterior tooth positions[J]. J Am Dent Assoc, 2019, 150(9):779-787. doi: S0002-8177(19)30336-8 pmid: 31439205
[5]	Pedrinaci I, Sun TC, Sanz-Alonso M, et al. Implant survival in the anterior mandible: A retrospective cohort study[J]. Clin Oral Implants Res, 2023, 34(5):463-474. doi: 10.1111/clr.v34.5
[6]	Zheng Z, Ao XG, Xie P, et al. The biological width around implant[J]. J Prosthodont Res, 2021, 65(1):11-18. doi: 10.2186/jpr.JPOR_2019_356
[7]	Testori T, Weinstein T, Scutellà F, et al. Implant placement in the esthetic area: Criteria for positioning single and multiple implants[J]. Periodontol 2000, 2018, 77(1):176-196. doi: 10.1111/prd.12211 pmid: 29484714
[8]	Tarnow DP, Cho SC, Wallace SS. The effect of inter-implant distance on the height of inter-implant bone crest[J]. J Periodontol, 2000, 71(4):546-549. doi: 10.1902/jop.2000.71.4.546 pmid: 10807116
[9]	Lin GF, Ye SH, Liu FJ, et al. A retrospective study of 30,959 implants: Risk factors associated with early and late implant loss[J]. J Clin Periodontol, 2018, 45(6):733-743. doi: 10.1111/jcpe.12898 pmid: 29608788
[10]	Vasegh Z, Safi Y, Amid R, et al. Quantitative evaluation of bone-related factors at the implant site by cone-beam computed tomography[J]. J Long Term Eff Med Implants, 2022, 32(1):33-43. doi: 10.1615/JLongTermEffMedImplants.2021039328 pmid: 35377992
[11]	孔娜娜, 苗芬, 袁华, 等. 基于CBCT的下颌前牙区颌骨形态学研究[J]. 口腔生物医学, 2013, 4(4):181-185.
[12]	Gastaldo JF, Cury PR, Sendyk WR. Effect of the vertical and horizontal distances between adjacent implants and between a tooth and an implant on the incidence of interproximal papilla[J]. J Periodontol, 2004, 75(9):1242-1246. pmid: 15515340
[13]	Ramanauskaite A, Sader R. Esthetic complications in implant dentistry[J]. Periodontol 2000, 2022, 88(1):73-85. doi: 10.1111/prd.v88.1
[14]	Giannobile WV, Jung RE, Schwarz F, et al. Evidence-based knowledge on the aesthetics and maintenance of peri-implant soft tissues: Osteology Foundation Consensus Report Part 1-Effects of soft tissue augmentation procedures on the maintenance of peri-implant soft tissue health[J]. Clin Oral Implants Res, 2018, 29(Suppl 15):7-10.
[15]	Sculean A, Gruber R, Bosshardt DD. Soft tissue wound healing around teeth and dental implants[J]. J Clin Periodontol, 2014, 41(Suppl 15):S6-S22.
[16]	Van Nimwegen WG, Raghoebar GM, Tymstra N, et al. How to treat two adjacent missing teeth with dental implants. A systematic review on single implant-supported two-unit cantilever FDP’s and results of a 5-year prospective comparative study in the aesthetic zone[J]. J Oral Rehabil, 2017, 44(6):461-471. doi: 10.1111/joor.12507 pmid: 28301683
[17]	Roccuzzo A, Jensen SS, Worsaae N, et al. Implant-supported 2-unit cantilevers compared with single crowns on adjacent implants: A comparative retrospective case series[J]. J Prosthet Dent, 2020, 123(5):717-723. doi: S0022-3913(19)30348-8 pmid: 31443973
[18]	Jung RE, Al-Nawas B, Araujo M, et al. Group 1 ITI Consensus Report: The influence of implant length and design and medications on clinical and patient-reported outcomes[J]. Clin Oral Implants Res, 2018, 29(Suppl 16):69-77.
[19]	Suedam V, Moretti Neto RT, Sousa EAC, et al. Effect of cantilever length and alloy framework on the stress distribution in peri-implant area of cantilevered implant-supported fixed partial dentures[J]. J Appl Oral Sci, 2016, 24(2):114-120. doi: 10.1590/1678-775720150297 pmid: 27119758
[20]	汪振华, 王媛, 马春丽, 等. 下颌前牙种植单端桥的临床效果分析[J]. 口腔医学研究, 2017, 33(9):995-998. doi: 10.13701/j.cnki.kqyxyj.2017.09.021
[21]	Nelluri VV, Roseme KM, Gedela RK. A 3-year prospective cohort study on mandibular anterior cantilever restorations associated with screw-retained implant-supported prosthesis: An in vivo study[J]. J Indian Prosthodont Soc, 2021, 21(2):150-160. doi: 10.4103/jips.jips_446_20
[22]	Kumari S, Singh GP, Bagalkot KB, et al. Assessment of the survival of a single implant-supported cantilever prosthesis in the anterior mandible[J]. J Pharm Bioallied Sci, 2021, 13(Suppl 2):S1668-S1671. doi: 10.4103/jpbs.jpbs_403_21 pmid: 35018052

牙位区间	总体/mm (n=500)	性别差异
牙位区间	总体/mm (n=500)	男性/mm(n=244)	女性/mm(n=256)	t	P
31—41	10.72±1.10	10.88±1.23	10.57±0.93	3.189	0.002^*
31—32	11.33±1.00	11.43±1.09	11.24±0.90	2.189	0.029^*
41—42	11.45±0.98	11.56±1.07	11.34±0.88	2.591	0.010^*
32—41	15.69±1.25	15.89±1.37	15.51±1.09	3.429	<0.001^*
31—42	15.79±1.26	15.97±1.38	15.61±1.10	3.145	0.002^*
32—42	20.76±1.48	20.98±1.61	20.56±1.33	3.186	0.002^*

牙齿缺失位置	性别	可放入2枚?3.3 mm植体	可放入2枚?2.8 mm植体
2颗下中切牙区段	男(n=244)	7.38%(n=18)	25.00%(n=61)
	女(n=256)	1.95 %(n=5)	13.28%(n=34)
	合计(n=500)	4.60%(n=23)	19.00%(n=95)
含侧切牙的2颗下切牙区段	男(n=488)	13.32%(n=65)	46.31%(n=226)
	女(n=512)	6.84%(n=35)	35.74%(n=183)
	合计(n=1 000)	10.00%(n=100)	40.90%(n=409)
