数字化咬合引导牙周夹板固定牙周炎患者松动牙的临床效果研究

doi:10.13591/j.cnki.kqyx.2026.04.003

Abstract

Abstract:

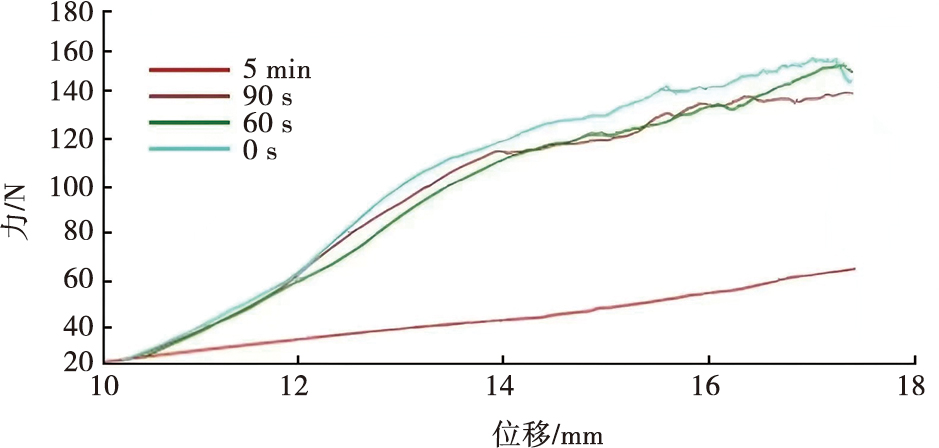

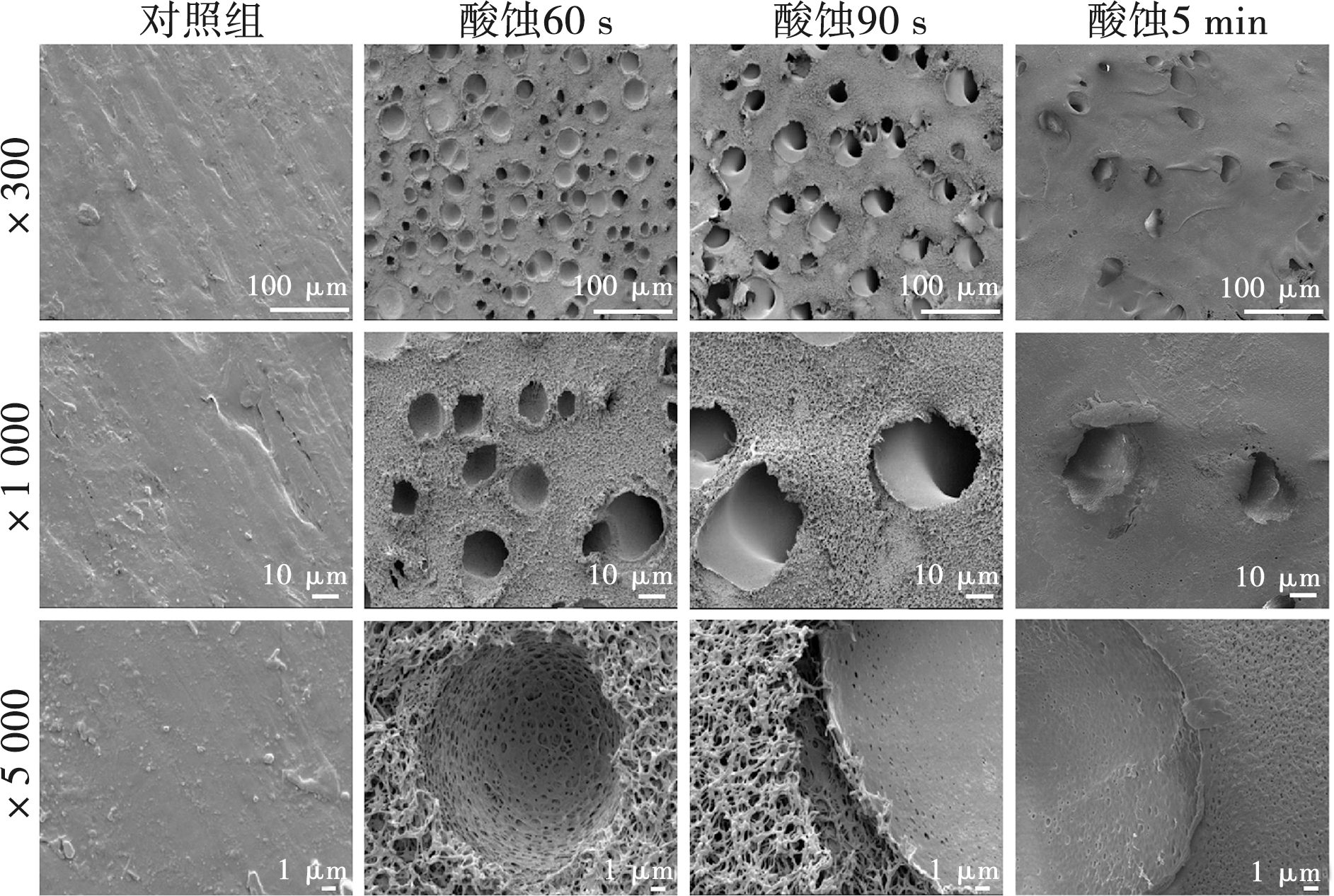

Objective To investigate the fixation efficacy of a digital occlusion-guided periodontal splint for loose teeth with periodontitis and evaluate its subsequent clinical outcomes. Methods The surface of polyetheretherketone (PEEK) material was etched with 98% concentrated sulfuric acid for 0, 60, 90 s, and 5 min, respectively. The surface micromorphology was observed by scanning electron microscopy, and the changes in mechanical properties were measured using a universal testing machine to determine the final etching conditions. Ten patients with periodontitis Stage Ⅲ and anterior tooth loosening who visited Department of Periodontology, The Affiliated Stomatological Hospital of Nanjing Medical University from March 2024 to September 2025 were selected. The loose teeth were fixed using a digitally 3D-printed occlusal positioning guide device and acid-etched PEEK periodontal splints. Periodontal pocket depth, attachment loss, and plaque index of the teeth in the splint fixation area were recorded and compared before splint fixation and at 3rd, 6th, and 12th months after fixation. Results Based on the results of scanning electron microscope observation of surface morphology and mechanical strength testing with a universal testing machine after etching, the optimal etching condition was determined as etching with 98% concentrated sulfuric acid for 90 s. At 3rd, 6th, and 12th months after fixation, the patients’ periodontal pocket depth and plaque index were significantly lower than those before fixation (P<0.05), while there was no statistically significant difference in clinical attachment loss (P>0.05). Conclusion The digitally fabricated PEEK periodontal splint guided by the occlusal positioning device exhibits favorable clinical fixation effect and holds promising prospects for clinical application.

Key words: periodontitis, digital design, periodontal splint, occlusal guide plate, polyetheretherketone, loose tooth fixation

CLC Number:

R781.4

ZHANG Kewei, WANG Feiyang, LI Jiaojiao, YANG Chen, CHEN Wu, LI Lin, SHI Wenhui, CHEN Xiaomei, WANG Xiaoqian. Study on clinical effect of digital occlusal guided periodontal splint for periodontitis patients with loose teeth[J]. Stomatology, 2026, 46(4): 253-259.

Figures/Tables 12

Fig.1

Fig.2

Tab.1

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

References 23

[1]	陈旭, 李璐, 王晓茜, 等. Ⅲ/Ⅳ期牙周炎的临床诊治决策进展[J]. 口腔医学, 2025, 45(1):13-17.
[2]	Ye ZY, Ye H, Yu XX, et al. Timing selection for loosened tooth fixation based on degree of alveolar bone resorption: A finite element analysis[J]. BMC Oral Health, 2022, 22(1): 328.
[3]	Golob Deeb J, Carrico CK, Miller A, et al. Maintenance of periodontally compromised teeth using periodontal splints[J]. Int J Dent, 2025, 2025: 7119673.
[4]	周燕平, 覃沅华, 梁剑梅, 等. 高强纤维牙周夹板固定法对重度牙周炎松动牙的应用研究进展[J]. 中国医药科学, 2022, 12(18): 44-47.
[5]	Ge YC, Zhao T, Fan SZ, et al. Effects of surface treatments on the adhesion strengths between polyether ether ketone and both composite resins and poly(methyl methacrylate)[J]. BMC Oral Health, 2025, 25(1): 940.
[6]	Zhang YH, Zhang WF, Yang MY, et al. Comprehensive review of polyetheretherketone use in dentistry[J]. J Prosthodont Res, 2025, 69(2): 215-232.
[7]	谷德奥, 陆伟. 聚芳醚酮的口腔临床应用及其产品化研究进展[J]. 中华口腔医学研究杂志(电子版), 2020, 14(4): 265-270.
[8]	Rauch A, Hahnel S, Günther E, et al. Tooth-colored CAD/CAM materials for application in 3-unit fixed dental prostheses in the molar area: An illustrated clinical comparison[J]. Materials, 2020, 13(24): 5588.
[9]	葛勇城, 赵婷, 殷皓宇, 等. 聚醚醚酮在口腔医学中的数字化应用[J]. 现代口腔医学杂志, 2025, 39(2): 135-139.
[10]	冀堃, 朱顶贵, 陆伟, 等. 聚醚醚酮/聚醚酮酮材料及数字化技术在儿童口腔医学应用的初步临床报告[J]. 实用口腔医学杂志, 2020, 36(2): 402-408.
[11]	Soares Machado P, Cadore Rodrigues AC, Chaves ET, et al. Surface treatments and adhesives used to increase the bond strength between polyetheretherketone and resin-based dental materials: A scoping review[J]. J Adhes Dent, 2022, 24: b2288283.
[12]	叶颖, 邸萍, 贾胜男, 等. 个别正常牙合牙尖交错位的最大牙合力绝对值及其牙位分布的横断面研究[J]. 中华口腔医学杂志, 2015, 50(9): 536-539.
[13]	朱春晖, 虎小毅, 孙俊毅, 等. 3D打印牙周导板辅助松牙固定的临床疗效评价[J]. 临床口腔医学杂志, 2020, 36(12): 731-734.
[14]	刘延周, 李海燕, 王胧英, 等. 纤维树脂夹板固定对牙周炎伴牙齿松动患者牙周指数的影响[J]. 医师在线, 2025, 15(1): 51-53.
[15]	李双林. 树脂夹板与高强纤维牙周夹板治疗重度牙周炎伴牙齿松动患者的效果分析[J]. 当代医学, 2022, 28(2): 182-184.
[16]	Zhang CR, Liu Q, Yang JW, et al. A digital technique for splinting periodontally compromised mobile teeth in the mandibular anterior region[J]. J Prosthet Dent, 2021, 125(4): 560-563.
[17]	Wang ZY, Guo LH, Deng K, et al. Additively manufactured zirconia periodontal splint integrated prosthesis: A proof-of-concept[J]. J Dent, 2025, 156: 105701.
[18]	Hahnel S, Wieser A, Lang R, et al. Biofilm formation on the surface of modern implant abutment materials[J]. Clin Oral Implants Res, 2015, 26(11): 1297-1301.
[19]	王睿瑾, 张嘉琪, 衣颖杰, 等. 牙科可切削聚醚醚酮表面抛光性能的初步研究[J]. 中华口腔医学研究杂志(电子版), 2021, 15(5): 278-283.
[20]	Zhang JQ, Yi YJ, Wang CW, et al. Effect of acid-etching duration on the adhesive performance of printed polyetheretherketone to veneering resin[J]. Polymers, 2021, 13(20): 3509.
[21]	Sproesser O, Schmidlin PR, Uhrenbacher J, et al. Effect of sulfuric acid etching of polyetheretherketone on the shear bond strength to resin cements[J]. J Adhes Dent, 2014, 16(5): 465-472.
[22]	Liu YC, Bai SZ, Zhong S, et al. Digital workflow for periodontal splinting with a guided device[J]. J Esthet Restor Dent, 2023, 35(4): 621-624.
[23]	邵金龙, 于洋, 吕春旭, 等. 欧洲牙周病学会牙周炎治疗S3级临床指南的介绍与应用解读[J]. 中华口腔医学杂志, 2022, 57(12): 1202-1208.

时间	探诊深度/mm	附着丧失/mm	菌斑指数
固定前	4.10±0.03	5.12±0.91	0.93±0.55
术后3个月	2.63±0.08^*	4.97±0.77	0.32±0.28^*
术后6个月	2.63±0.03^*	4.93±0.82	0.25±0.20^*
术后12个月	2.60±0.02^*	4.95±0.53	0.17±0.17^*
