成年人翼钩及其周围组织的CBCT影像学研究

doi:10.13591/j.cnki.kqyx.2024.10.002

Abstract

Abstract:

Objective To analyze the morphology of the pterygoid hamulus and its relationship with adjacent tissues on CBCT images, establish reference data of the anatomical structure of the pterygoid hamulus in the adult population, in order to provide a basis for clinical assisted diagnosis and treatment of pterygoid hamulus syndrome and obstructive sleep apnea hypopnea syndrome. Methods A total of 151 patients with CBCT images who met the inclusion criteria were collected from August 2020 to December 2023 in the Department of Stomatology at the Second Traditional Chinese Medicine Hospital of Jiangsu Province. The CBCT images were reconstructed using the maximum intensity projection(MIP) and volume rendering(VR) modes of cone-beam CT. The morphology, length, width, vertical height, abduction angle, mucosal thickness, distance from the pterygoid hamulus to the midline of the palate, and distance from the pterygoid hamulus to the greater palatine foramen were observed and statistically analyzed in 302 bilateral cases. The differences in the morphology of the pterygoid hamulus and its adjacent tissues were analyzed in different places, genders and age groups. Results The apex of the pterygoid hamulus faced inward on 6 sides and outward on 296 sides. The apex of the pterygoid hamulus was sharp on 46 sides and blunt on 256 sides. The pterygoid hamulus showed no statistically significant differences in various parameters between the left and right sides, except for the width. In males, the length, width, height, distance from the pterygoid hamulus to the mid-palatal suture, and mucosal thickness on the surface of the hamulus were all greater than those in females, demonstrating statistically significant differences. Females also exhibited a larger outward angle of the pterygoid hamulus than males, which was statistically significant. Moreover, with the increase of age, the length and height of the pterygoid hamulus initially increased and then decreased, exhibiting statistically significant differences. Conclusion CBCT has the advantages of low radiation dosage, convenient operation, clear imaging, stable measurement data, and clear images in the examination of pterygoid hamulus. It helps in the diagnosis and treatment of pterygoid hamulus-related diseases in a clinical setting.

Key words: pterygoid hamulus, obstructive sleep apnea hypopnea syndrome, CBCT

CLC Number:

R323.1

WANG Zhenting, LI Bei, JI Yi, ZHANG Juan, YANG Chen, SHAN Hua, LIU Rui. CBCT imaging study on adult pterygoid hamulus and their adjacent tissues[J]. Stomatology, 2024, 44(10): 728-733.

Figures/Tables 9

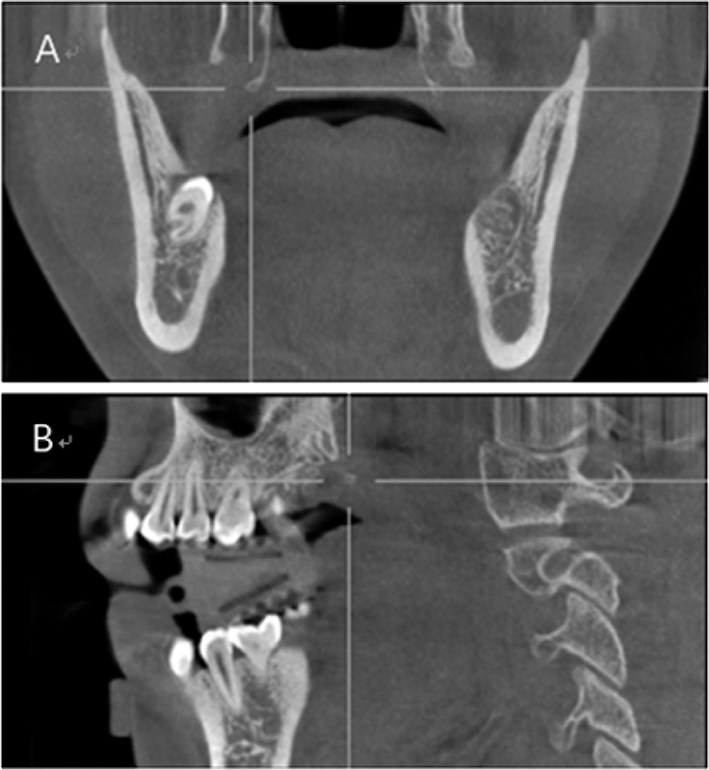

Fig.1

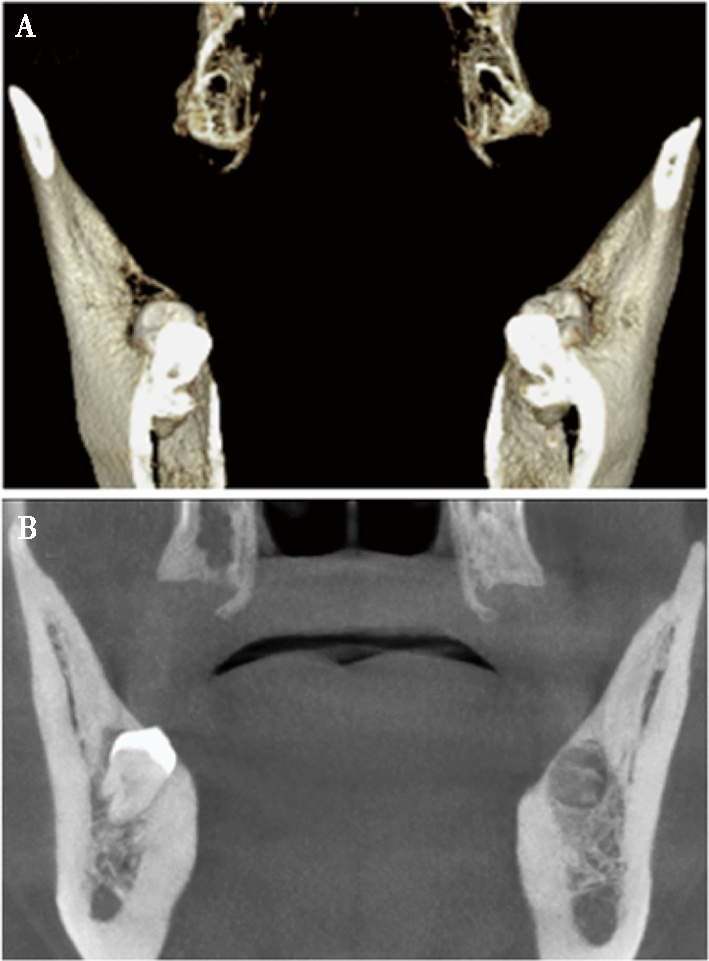

Fig.2

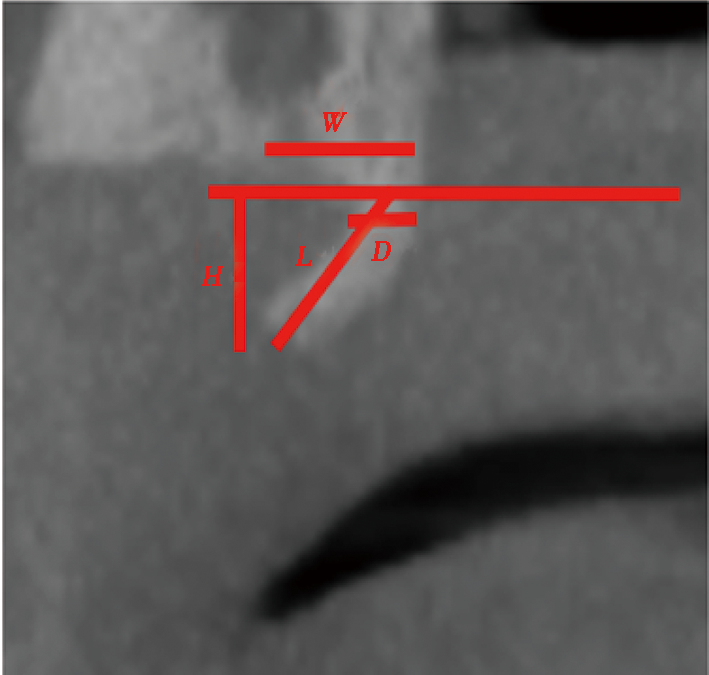

Fig.3

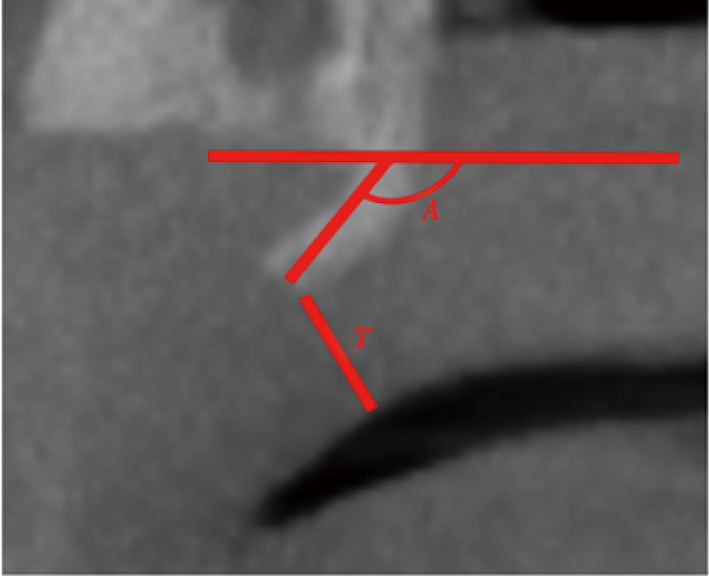

Fig.4

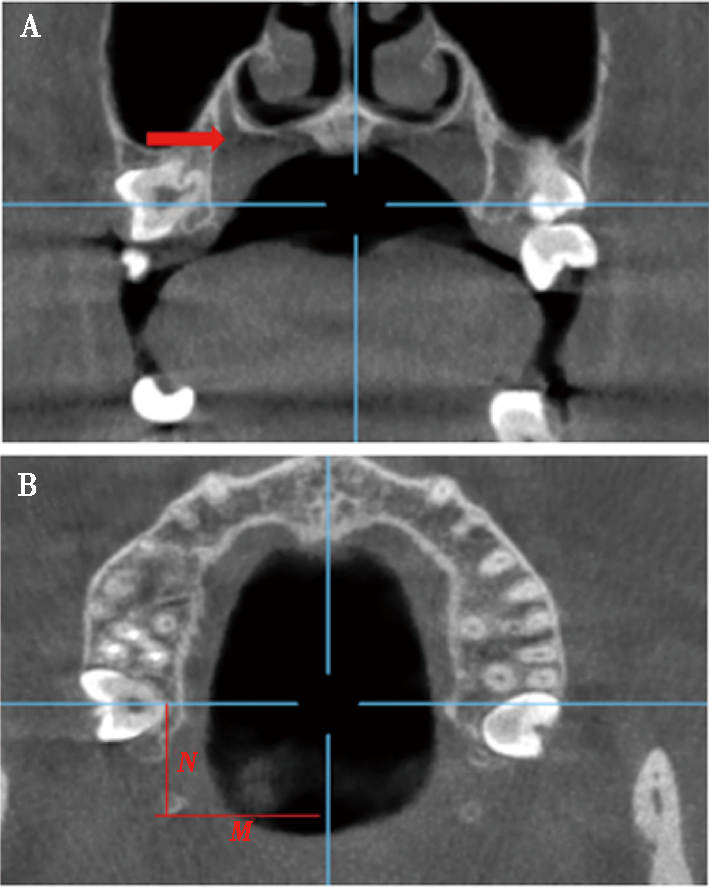

Fig.5

Tab.1

Tab.2

Tab.3

Tab.4

References 28

[1]	皮昕. 口腔解剖生理学复习应试指南[M]. 2版. 北京: 人民卫生出版社, 2005.
[2]	Krmpotić-Nemanić J, Vinter I, Marusić A. Relations of the pterygoid hamulus and hard palate in children and adults: Anatomical implications for the function of the soft palate[J]. Ann Anat, 2006, 188(1): 69-74. pmid: 16447915
[3]	Abe M, Murakami G, Noguchi M, et al. Variations in the tensor veli palatini muscle with special reference to its origin and insertion[J]. Cleft Palate Craniofac J, 2004, 41(5): 474-484.
[4]	梁化国, 黄礼锋. 翼钩综合征误诊为咽部疾病[J]. 中国乡村医药, 2005, 12(6): 46.
[5]	吴镝, 尹宁北. 腭裂的腭咽肌肉张力带重建[J]. 中华整形外科杂志, 2021, 37(12): 1307-1313.
[6]	赵久丽. 基于Micro-CT的正常人及腭裂患者腭咽部肌肉与周围结构的空间关系研究[D]. 北京: 北京协和医学院, 2023.
[7]	岳爽, 刘辉国. 阻塞性睡眠呼吸暂停低通气综合征与上气道扩张肌的研究进展[J]. 中华结核和呼吸杂志, 2021, 44(7): 661-664.
[8]	Hong SN, Kim HG, Han SY, et al. Indications for and outcomes of expansion sphincter pharyngoplasty to treat lateral pharyngeal collapse in patients with obstructive sleep apnea[J]. JAMA Otolaryngol Head Neck Surg, 2019, 145(5): 405-412.
[9]	Kuzucu I, Parlak IS, Baklaci D, et al. Morphometric evaluation of the pterygoid hamulus and upper airway in patients with obstructive sleep apnea syndrome[J]. Surg Radiol Anat, 2020, 42(5): 489-496. doi: 10.1007/s00276-019-02314-8 pmid: 31471675
[10]	Cammaroto G, Stringa LM, Iannella G, et al. Manipulation of lateral pharyngeal wall muscles in sleep surgery: A review of the literature[J]. Int J Environ Res Public Health, 2020, 17(15): 5315.
[11]	沈晨露, 高碧聪, 吕柯佳, 等. 浙江地区人群上颌腭侧咀嚼黏膜厚度与腭穹窿解剖形态的量化分析[J]. 浙江大学学报(医学版), 2022, 51(1): 87-94.
[12]	Ludlow JB, Ivanovic M. Comparative dosimetry of dental CBCT devices and 64-slice CT for oral and maxillofacial radiology[J]. Oral Surg Oral Med Oral Pathol Oral Radiol Endod, 2008, 106(1): 106-114. doi: 10.1016/j.tripleo.2008.03.018 pmid: 18504152
[13]	Leppänen T, Kulkas A, Duce B, et al. Severity of individual obstruction events is gender dependent in sleep apnea[J]. Schlaf Atmung, 2017, 21(2): 397-404.
[14]	Mirer AG, Young T, Palta M, et al. Sleep-disordered breathing and the menopausal transition among participants in the Sleep in Midlife Women Study[J]. Menopause, 2017, 24(2): 157-162. doi: 10.1097/GME.0000000000000744 pmid: 27760083
[15]	Pescador-Alvarez JA, Luis Arriola-Guillén, Rodriguez Y, et al. Evaluation of the apical sealing associated with maxillary first molars radicular morphology using cone beam computed tomography[J]. Cumhuriyet Dent J, 2020, 23(3):174-180.
[16]	Romoozi E, Razavi SH, Barouti P, et al. Investigating the morphologic indices of the Hamulus pterygoid process using the CBCT technique[J]. J Res Med Dent Sci, 2018, 6: 240-244.
[17]	牛松青, 王伟, 彭东, 等. 翼钩的形态特点与临床意义[J]. 解剖学杂志, 2004, 27(5): 539-540.
[18]	卢绍辉, 许凡勇, 吴颋, 等. 成人正常翼钩64排螺旋CT检查的表现[J]. 中华放射学杂志, 2012, 46(10): 886-889.
[19]	刘伟胜. 正常人群翼钩长度及外展角度的测量[D]. 石家庄: 河北医科大学, 2023.
[20]	Oz U, Orhan K, Aksoy S, et al. Association between pterygoid hamulus length and apnea hypopnea index in patients with obstructive sleep apnea: A combined three-dimensional cone beam computed tomography and polysomnographic study[J]. Oral Surg Oral Med Oral Pathol Oral Radiol, 2016, 121(3): 330-339.
[21]	马莉洋, 任盼, 刘静, 等. 阻塞性睡眠呼吸暂停低通气综合征患者的影响因素分析[J]. 中国医药导报, 2022, 19(35): 62-65.
[22]	Barsoumian R, Kuehn DP, Moon JB, et al. An anatomic study of the tensor veli palatini and dilatator tubae muscles in relation to eustachian tube and velar function[J]. Cleft Palate Craniofac J, 1998, 35(2): 101-110.
[23]	杨学财, 罗伦洲, 李宁毅, 等. 先天性腭裂患者术中凿断翼钩对语音及中耳功能的影响[J]. 中国口腔颌面外科杂志, 2006, 4(5): 349-351.
[24]	冉雪琪, 李建锋, 曹绍艾. 探讨低剂量口腔CBCT检查中耳鼻喉相关组织的表现[J]. CT理论与应用研究, 2022, 31(3): 392-398.
[25]	中华医学会放射学分会头颈学组, 中华医学会影像技术分会辐射防护学组. 头颈部CT检查和辐射剂量管理专家共识[J]. 中华放射学杂志, 2020, 54(9): 827-838.
[26]	黄迪. 鼻腔结构异常对上颌窦气化影响的CBCT分析[D]. 南昌: 南昌大学医学部, 2020.
[27]	de Cock J, Zanca F, Canning J, et al. A comparative study for image quality and radiation dose of a cone beam computed tomography scanner and a multislice computed tomography scanner for paranasal sinus imaging[J]. Eur Radiol, 2015, 25(7): 1891-1900. doi: 10.1007/s00330-015-3593-7 pmid: 25773935
[28]	丁水清, 王小乐. CBCT与MSCT平扫用于口腔颌面检查中图像质量及辐射剂量分析[J]. 现代医用影像学, 2022, 31(6): 1097-1099.

性别	样本量	朝向		形态
性别	样本量	内侧	外侧	尖锐	圆钝
男性	146	3	143	15	131
女性	156	3	153	31	125
合计	302	6	296	46	256

位置	样本量	L/mm	W/mm	H/mm	D/mm	A/(°)	M/mm	N/mm	T/mm
右	151	6.76±0.10	5.56±0.07	5.96±0.11	2.03±0.18	122.89±0.59	20.61±0.03	13.67±0.16	4.93±0.12
左	151	6.90±0.11	5.87±0.07	6.06±0.10	2.07±0.17	123.35±0.57	20.43±0.05	14.04±0.19	5.06±0.12
t		0.914	3.011	0.657	0.631	0.566	-0.746	1.522	0.767
P		0.361	0.003	0.512	0.529	0.572	0.456	0.129	0.443

性别	样本量	L/mm	W/mm	H/mm	D/mm	A/(°)	M/mm	N/mm	T/mm
男	146	7.56±0.10	5.98±0.08	6.77±0.10	2.05±0.03	120.74±0.51	21.20±0.14	13.77±0.14	5.42±0.11
女	156	6.15±0.09	5.47±0.06	5.30±0.08	2.05±0.05	125.35±0.58	19.89±0.18	13.94±0.20	4.59±0.12
t		10.815	5.197	11.851	-0.067	-5.982	5.629	-0.692	5.103
P		<0.001	<0.001	<0.001	0.947	<0.001	<0.001	0.490	<0.001

年龄/岁	样本量	L/mm	W/mm	H/mm	D/mm	A/(°)	M/mm	N/mm	T/mm
18~39	98	6.61±0.14	5.67±0.08	5.82±0.13	2.04±0.04	123.41±0.76	20.51±0.29	13.81±0.23	4.91±0.18
40~59	132	7.07±0.12	5.84±0.09	6.23±0.12	1.98±0.03	123.02±0.67	20.74±0.17	13.69±0.17	5.11±0.12
≥60	72	6.85±0.17	5.59±0.11	6.04±0.17	2.12±0.06	121.98±0.78	20.23±0.21	14.35±0.30	5.21±0.17
F		4.464	2.162	3.800	2.702	1.014	1.119	2.180	1.264
P		0.012	0.117	0.023	0.068	0.364	0.328	0.115	0.284
