骨质情况对计算机辅助设计种植导板应用精确性的影响分析

doi:10.13591/j.cnki.kqyx.2024.07.005

Abstract

Abstract:

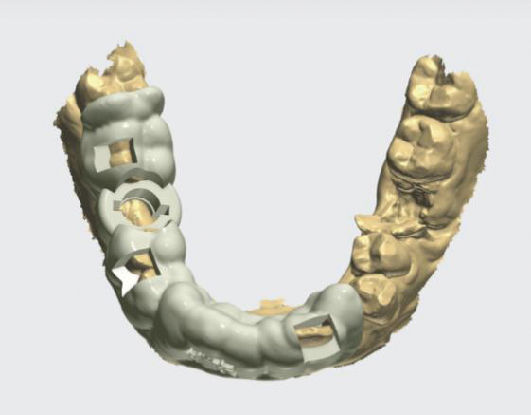

Objective To explore the influence of different bone quality around the implant on the implantation accuracy, the computer-aided design of implant guide plate was used for patients with poor bone quality to evaluate its accuracy. Methods Retrospective analysis of relevant clinical data from 29 single-tooth implant patients with relatively poor bone quality meeting inclusion criteria was conducted. Using 3Shape Implant Studio software, implant plans were designed and fully guided digital templates were fabricated before surgery. Implantation was guided by the templates throughout, with torque and ISQ values recorded to evaluate the initial stability of the implant. Postoperative implant positions were reconstructed using CBCT images, and the three-dimensional deviation of implant placement was evaluated in conjunction with the preoperative design. Bone quality around the implants was also recorded and analyzed before and after surgery. Results In this study, digital guide plates were used in patients with poor bone quality, and the initial stability of implants was ≥ 20 N·cm except for three cases. In cases of poor bone quality, the accuracy of the fully guided digital templates was as follows: cervix deviation (0.94±0.59)mm, apex deviation (1.40±0.81)mm and angle deviation 4.10°±2.99°. Bone quality had a greater impact on angle deviation (P<0.05). The higher the proportion of D3 bone was around the implant body 1/3, the smaller the deviation of neck, apex and angle was, while the higher the proportion of D5 bone, the greater the deviation of implantation. Conclusion For patients with poor bone quality, under the premise of restoration-oriented, the proportion of D3 bone around the implant can be increased by computer-aided design, and the initial stability of the implant can be improved by guiding the implantation with digital guide plate. Attention should be paid to the influence of bone on the angle deviation of implant during the application of guide plate.

Key words: dental implant, computer-assisted design and fabrication, precision, surgical template

CLC Number:

R783.4

QIAN Yuxin, LI Jian, ZHANG Jianlan, ZHANG Shixuan, GU Yangqian, LU Mengmeng, TANG Chunbo. Analysis of the impact of bone quality on the accuracy of computer-aided design of implant guide plate[J]. Stomatology, 2024, 44(7): 508-514.

Figures/Tables 11

Fig.1

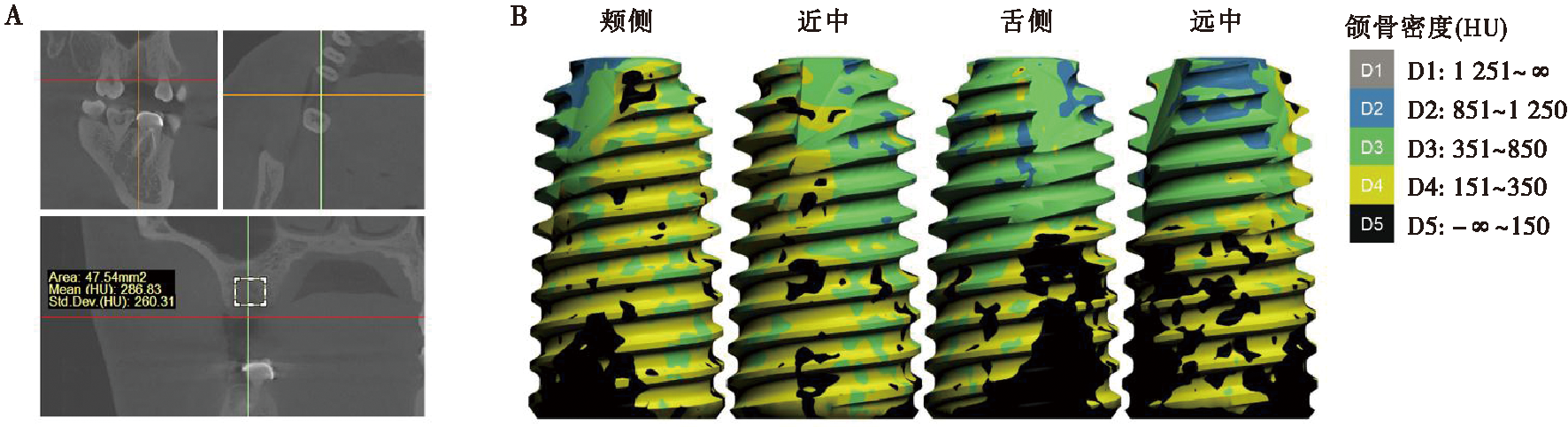

Fig.2

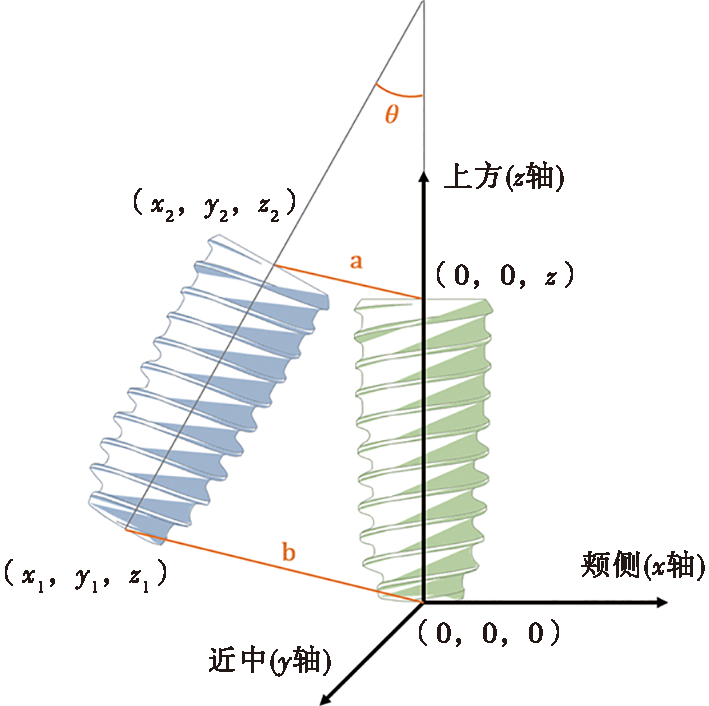

Fig.3

Tab.1

Tab.2

Tab.3

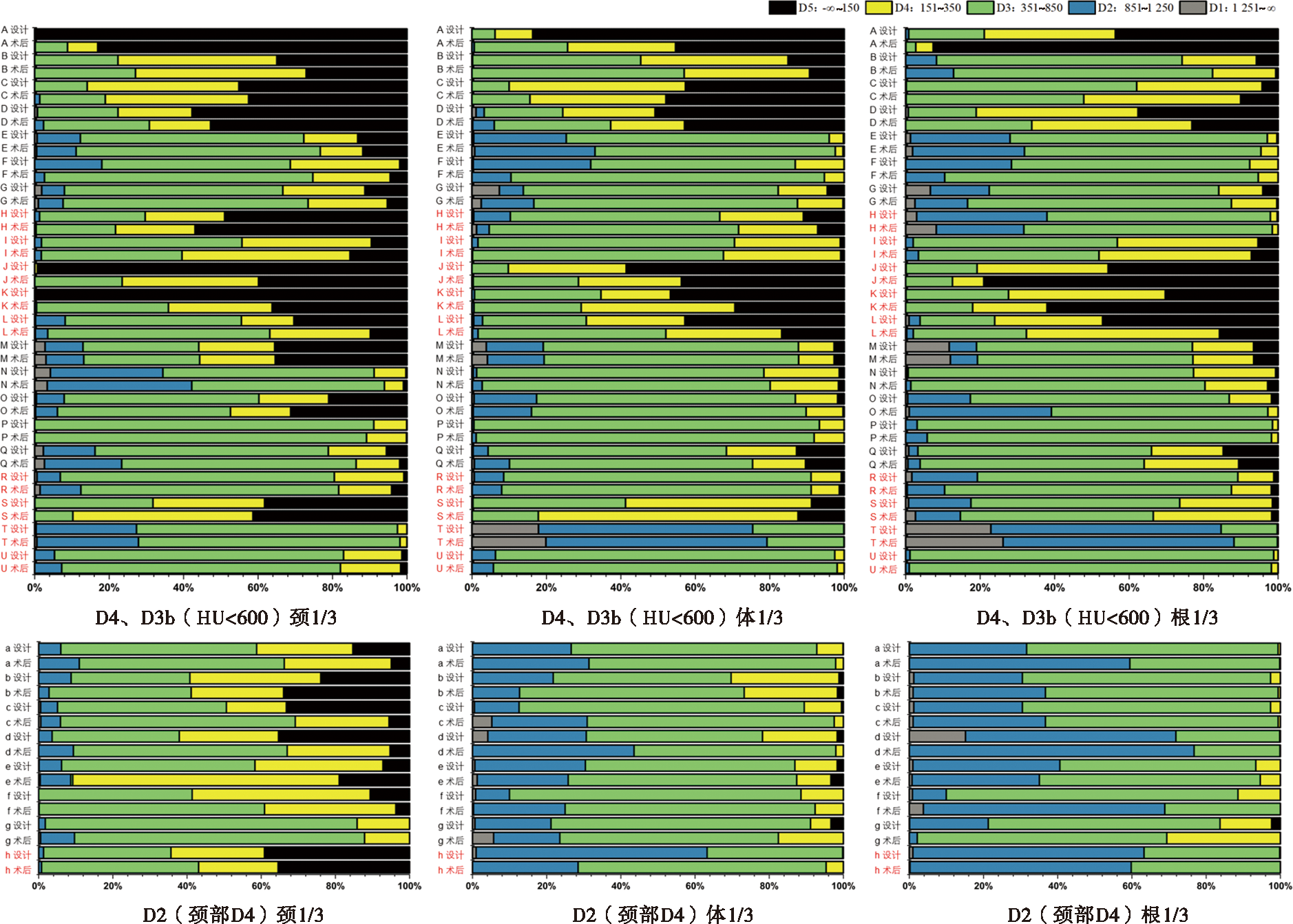

Fig.4

Tab.4

Tab.5

Tab.6

Tab.7

References 28

[1]	D’Haese J, Ackhurst J, Wismeijer D, et al. Current state of the art of computer-guided implant surgery[J]. Periodontol 2000, 2017, 73(1):121-133.
[2]	Zhou M, Zhou H, Li SY, et al. Accuracy of implant placement guided with surgical template: An in vitro and in vivo study[J]. Int J Periodontics Restorative Dent, 2021, 41(2):e55-e62.
[3]	Schneider D, Sax C, Sancho-Puchades M, et al. Accuracy of computer-assisted, template-guided implant placement compared with conventional implant placement by hand: An in vitro study[J]. Clin Oral Implants Res, 2021, 32(9):1052-1060.
[4]	Massuda CKM, de Carvalho MR, de Moraes JB, et al. Accuracy of guided dental implant surgery using a fully digital workflow: A case series[J]. J Prosthet Dent, 2022: S0022 -S3913(22)00635-7.
[5]	Putra RH, Yoda N, Astuti ER, et al. The accuracy of implant placement with computer-guided surgery in partially edentulous patients and possible influencing factors: A systematic review and meta-analysis[J]. J Prosthodont Res, 2022, 66(1):29-39.
[6]	Gelpi F, Modena N, Poscolere A, et al. Accuracy of computer-guided implantology with pilot drill surgical guide: Retrospective 3D radiologic investigation in partially edentulous patients[J]. Medicina (Kaunas), 2023, 59(4):738.
[7]	Tahmaseb A, Wu V, Wismeijer D, et al. The accuracy of static computer-aided implant surgery: A systematic review and meta-analysis[J]. Clin Oral Implants Res, 2018, 29(Suppl 16):416-435.
[8]	Vercruyssen M, Coucke W, Naert I, et al. Depth and lateral deviations in guided implant surgery: An RCT comparing guided surgery with mental navigation or the use of a pilot-drill template[J]. Clin Oral Implants Res, 2015, 26(11):1315-1320.
[9]	邵琴, 杨国利. 全程导航与部分导航的数字化种植导板的对比分析[J]. 口腔医学, 2020, 40(3):285-288.
[10]	Unger S, Penzenstadler M, Husain AAH, et al. Comparison of geometric accuracy of low-dose and standard-dose dental CBCT imaging protocols in CAD/CAM-guided dental implant surgery[J]. Int J Oral Maxillofac Implants, 2023, 38(2):287-294.
[11]	Schnutenhaus S, Gröller S, Luthardt RG, et al. Accuracy of the match between cone beam computed tomography and model scan data in template-guided implant planning: A prospective controlled clinical study[J]. Clin Implant Dent Relat Res, 2018, 20(4):541-549.
[12]	Seo C, Juodzbalys G. Accuracy of guided surgery via stereolithographic mucosa-supported surgical guide in implant surgery for edentulous patient: A systematic review[J]. J Oral Maxillofac Res, 2018, 9(1):e1.
[13]	Heo MS, Kim JE, Hwang JJ, et al. Artificial intelligence in oral and maxillofacial radiology: What is currently possible?[J]. Dentomaxillofac Radiol, 2021, 50(3):20200375.
[14]	Misch CE. Implant dentistry[J]. Dent Today, 2002, 21(11):62-72. pmid: 12483926
[15]	Sogo M, Ikebe K, Yang TC, et al. Assessment of bone density in the posterior maxilla based on Hounsfield units to enhance the initial stability of implants[J]. Clin Implant Dent Relat Res, 2012, 14(Suppl 1):e183-e187.
[16]	赵海礁, 潘亚萍. 重度牙周炎患者牙槽骨丧失特点及后期种植治疗的考量[J]. 中华口腔医学杂志, 2023, 58(3):298-304.
[17]	Turkyilmaz I, McGlumphy EA. Influence of bone density on implant stability parameters and implant success: A retrospective clinical study[J]. BMC Oral Health, 2008, 8: 32. doi: 10.1186/1472-6831-8-32 pmid: 19025637
[18]	Al-Jamal MFJ, Al-Jumaily HA. Can the bone density estimated by CBCT predict the primary stability of dental implants? A new measurement protocol[J]. J Craniofac Surg, 2021, 32(2):e171-e174.
[19]	Supachaiyakit P, Serichetaphongse P, Chengprapakorn W. The influence of implant design on implant stability in low-density bone under guided surgical template in inexperienced surgeons: A pilot randomized controlled clinical trial using resonance frequency analysis[J]. Clin Implant Dent Relat Res, 2022, 24(4):444-454.
[20]	吴小吉, 林野, 邱立新, 等. 应用共振频率评估种植体稳定性的临床研究[J]. 中国口腔种植学杂志, 2005, 10(2):73-78, 85.
[21]	方菊, 吴涛. 植入扭矩与种植体骨结合的研究进展[J]. 中国口腔种植学杂志, 2020, 25(4):187-191. doi: 10.12337/zgkqzzxzz.2020.12.011
[22]	Heimes D, Becker P, Pabst A, et al. How does dental implant macrogeometry affect primary implant stability? A narrative review[J]. Int J Implant Dent, 2023, 9(1):20. doi: 10.1186/s40729-023-00485-z pmid: 37405709
[23]	Xu LW, You J, Zhang JX, et al. Impact of surgical template on the accuracy of implant placement[J]. J Prosthodont, 2016, 25(8):641-646.
[24]	Putra RH, Yoda N, Iikubo M, et al. Influence of bone condition on implant placement accuracy with computer-guided surgery[J]. Int J Implant Dent, 2020, 6(1):62. doi: 10.1186/s40729-020-00249-z pmid: 32951152
[25]	Zhou WJ, Liu ZH, Song LS, et al. Clinical factors affecting the accuracy of guided implant surgery: A systematic review and meta-analysis[J]. J Evid Based Dent Pract, 2018, 18(1):28-40.
[26]	Kim MJ, Jeong JY, Ryu J, et al. Accuracy of digital surgical guides for dental implants[J]. Maxillofac Plast Reconstr Surg, 2022, 44(1):35.
[27]	Chmielewski K, Ryncarz W, Yüksel O, et al. Image analysis of immediate full-arch prosthetic rehabilitations guided by a digital workflow: Assessment of the discrepancy between planning and execution[J]. Int J Implant Dent, 2019, 5(1):26. doi: 10.1186/s40729-019-0179-1 pmid: 31304566
[28]	姜向瑞, 薛坤, 李葆祚. 不同骨质对牙支持式数字化种植导板精确度的影响分析[J]. 口腔医学研究, 2022, 38(2):134-137. doi: 10.13701/j.cnki.kqyxyj.2022.02.009

项目	骨质分类		P
项目	D4、D3b(HU<600)	D2(颈部D4)	P
位置			0.030
上颌	11	0
下颌	10	8
性别			0.257
男	9	6
女	12	2
植入扭矩/(N·cm)	25.24±5.63	28.13±3.91	0.196
ISQ	63.80±7.80	67.46±6.06	0.243

种植体尺寸 (直径×长度)	种植体数量	植入扭矩/(N·cm)	ISQ
4.0 mm×8.5 mm	1	23.00	57.70
4.0 mm×10.0 mm	3	25±5.57	60.67±2.52
4.0 mm×11.5 mm	1	30.00	63.90
4.5 mm×7.0 mm	5	17.80±4.38	58.28±8.02
4.5 mm×8.5 mm	9	28.56±1.94	68.41±6.42
4.5 mm×10.0 mm	9	28.11±4.37	67.32±7.57
5.0 mm×7.0 mm	1	28.00	62.80

差异源	植入扭矩		ISQ
差异源	F	P	F	P
直径	2.279	0.126	2.190	0.136
长度	4.280	0.016	2.607	0.077

骨质分类	颈部偏差/mm	根尖部偏差/mm	角度偏差/°
D4、D3b(HU<600)	0.99±0.60	1.53±0.82	4.74±2.27
D2(颈部D4)	0.80±0.60	1.05±0.67	2.27±1.08
P	0.467	0.150	0.045

种植体尺寸 (直径×长度)	颈部偏差/mm	根尖部偏差/mm	角度偏差/°
4.0 mm×8.5 mm	0.51	1.17	4.61
4.0 mm×10.0 mm	1.08±0.32	2.64±0.54	9.16±2.14
4.0 mm×11.5 mm	0.77	0.84	1.86
4.5 mm×7.0 mm	1.40±1.08	1.60±1.10	5.72±4.34
4.5 mm×8.5 mm	1.02±0.48	1.37±0.59	3.06±1.47
4.5 mm×10.0 mm	0.67±0.34	1.09±0.62	2.91±1.86
5.0 mm×7.0 mm	0.49	0.50	2.46

Analysis of the impact of bone quality on the accuracy of computer-aided design of implant guide plate

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 11

References 28

Related Articles 15

Recommended Articles

Metrics

Comments

差异源	颈部偏差		根尖部偏差		角度偏差
差异源	F	P	F	P	F	P
直径	1.006	0.382	2.083	0.148	4.065	0.031
长度	1.182	0.339	1.805	0.176	3.960	0.021

不同部位骨质	颈部偏差		根尖部偏差		角度偏差
不同部位骨质	皮尔逊相关系数	P	皮尔逊相关系数	P	皮尔逊相关系数	P
颈部D1	-0.368	0.051	-0.382	0.044^*	-0.353	0.058
颈部D2	-0.383	0.043^*	-0.336	0.068	-0.264	0.123
颈部D3	-0.324	0.076	-0.352	0.059	-0.417	0.030^*
颈部D4	0.278	0.112	0.051	0.414	0.088	0.353
颈部D5	0.355	0.057	0.497	0.011^*	0.510	0.009^*
体部D1	-0.107	0.323	0.094	0.342	0.126	0.293
体部D2	-0.276	0.113	-0.116	0.308	-0.013	0.477
体部D3	-0.418	0.030^*	-0.431	0.026^*	-0.520	0.008^*
体部D4	0.230	0.158	0.098	0.336	0.138	0.275
体部D5	0.638	0.001^*	0.605	0.002^*	0.606	0.002^*
根部D1	-0.108	0.321	0.134	0.281	0.151	0.256
根部D2	-0.224	0.165	-0.087	0.354	-0.033	0.443
根部D3	-0.364	0.053	-0.379	0.045^*	-0.316	0.082
根部D4	-0.006	0.490	0.031	0.447	0.215	0.175
根部D5	-0.515	0.008^*	0.376	0.046^*	0.171	0.229
